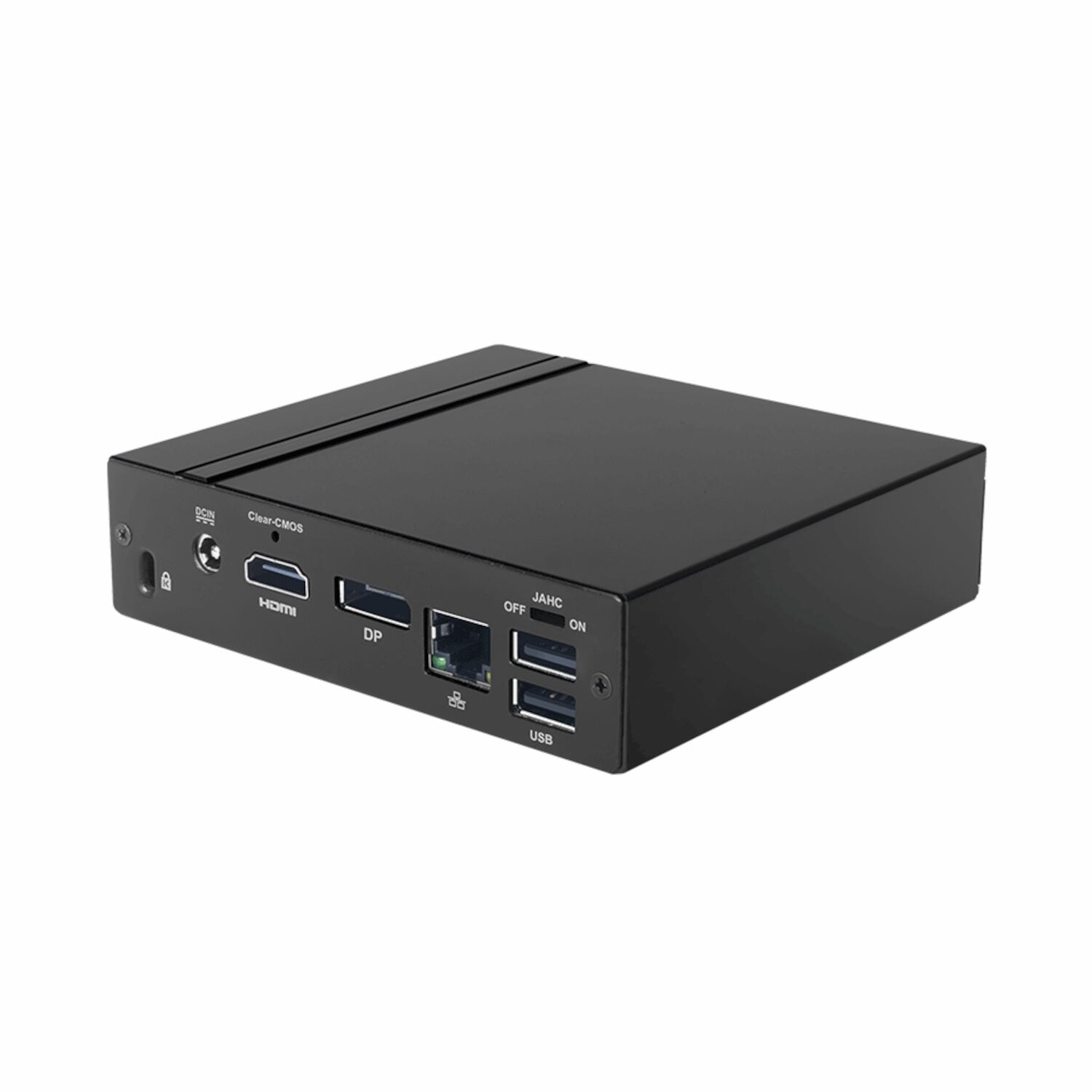

The Giada VM23 is a purpose-built compact digital signage media player engineered for high-reliability, energy-efficient performance in space-constrained environments. Powered by Intel® Apollo Lake Celeron® N3350/N3450 processors, this fanless player delivers consistent, low-power computing designed to meet the evolving needs of digital signage, kiosk, and thin client applications.

Designed for commercial deployments where silent operation and robust 24/7 performance are essential, the VM23 features a passive cooling system that enhances operational longevity and eliminates mechanical noise, making it ideal for use in retail, hospitality, education, and corporate display environments.

Despite its ultra-compact footprint, the VM23 supports dual independent displays via HDMI 1.4a and DisplayPort 1.2, enabling vivid 4K media playback and dynamic content delivery. Its support for up to 64GB of onboard eMMC storage and mSATA expansion through a full-size Mini-PCIe slot ensures deployment flexibility across diverse digital environments.

Engineered for seamless integration, this media player is compatible with both Windows 10 (64-bit) and Ubuntu Linux (64-bit), allowing for streamlined software deployment across platforms. Furthermore, its compliance with CE, FCC Class B, and UKCA certifications positions it as a trusted solution in mission-critical installations.

With its compact size, wide operating temperature range, and solid-state reliability, the Giada VM23 empowers integrators and solution providers to deliver cost-effective, scalable signage experiences with minimal maintenance.

FEATURES:

• Fanless, ultra-compact design: Ideal for silent operation in space-constrained digital signage and embedded deployments
• Dual display support: Simultaneously drives two independent 4K displays via HDMI 1.4a and DisplayPort 1.2
• Energy-efficient Intel® Apollo Lake processors: Powered by Celeron® N3350 or N3450 with low 6W TDP for 24/7 stability
• Flexible storage options: Integrated 32GB/64GB eMMC and Mini-PCIe slot supporting mSATA SSD expansion
• Wide OS compatibility: Supports Windows 10 (64-bit) and Ubuntu Linux (64-bit) for flexible deployment
• High reliability: Solid-state design with passive cooling ensures long-term durability and reduced failure risk
• Industrial-grade construction: Robust housing and certified for CE, FCC Class B, and UKCA standards
• Compact footprint: Measures only 116.6 mm x 107.4 mm x 30 mm for easy integration into kiosks, behind displays, or inside enclosures
• High-performance graphics: Intel® HD Graphics 500 enables fluid 4K video playback and responsive content rendering
• Low power consumption: Suitable for energy-conscious installations with minimal thermal output

SPECIFICATIONS:

• CPU
• Frequency: 2.40 GHz
• Chipset: SoC
• Processing Units: 2 Cores
• TDP: 6W
• Network
• Network Controller: 1 x Realtek RTL 8111H Gigabit Ethernet
• Ethernet Interface: 1 x RJ45
• Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT
• Mobile Network: NA
• Display
• GPU: Intel® HD Graphics 500
• Graphic Engine: DirectX 12, OpenGL 4.3, OpenCL 2.0
• Display Interface: 1 x DP (Max.4096 x 2304 @60 Hz), 1 x HDMI (Max.3840 x 2160 @30 Hz)
• I/O interface
• USB: 2 x USB3.2 Gen1, 2 x USB2.0
• Serial Port: 1 x RS232
• Audio: 1 x MIC-IN, 1 x AUDIO-OUT
• Button: 1 x Power on, 1 x CLR-CMOS
• Antenna: 2 x Connector for Wifi/BT
• System
• System Memory: 2 GB/4 GB, Onboard LPDDR4-2133 MHz
• Storage: 32 GB/64 GB, Onboard eMMC, 1 x Full-size Mini-PCIe for MSATA
• TPM: Optional: TPM2.0
• Watchdog Timer: Yes
• Auto Power On: Yes
• RTC: Set up independently every day, a week as a cycle
• Power Requirement: DC-IN, 12 V/2.0 A
• Operating System: Windows 10 (64bit) /Linux Ubuntu (64bit)
• Operating Temperature: 0°C ~40°C (32°F~104°F) @0.7m/s Air Flow
• Humidity 95% @ 40°C (non-condensing)
• Construction: Metal, Black
• Dimensions: 11.66 x 10.74 x 0.30 cm
• Certifications: CE, FCC Class B, UKCA

WHAT'S IN THE BOX:

• Giada VM23 4GB 64GB  Media Player – Fanless 4K Digital Signage Solution
