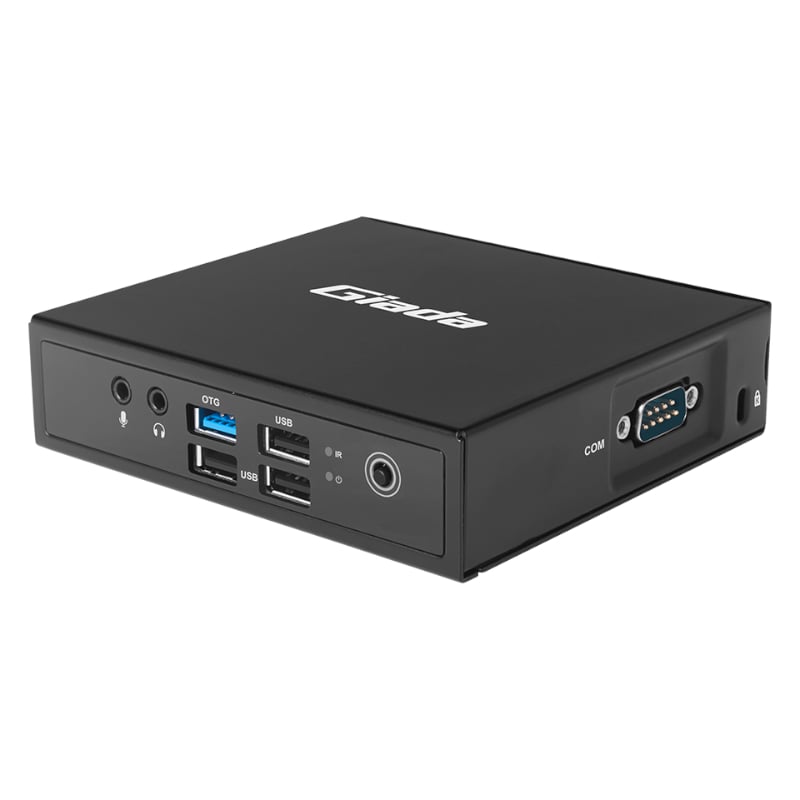

Giada DN74 RK3399 4GB DDR4 32GB EMMC

Giada DN74 RK3399 4GB DDR4 32GB EMMC
Regular price R 6,073.65
Sale price R 4,499.00

The Giada DN74 ARM Fanless Android Signage Player utilises an RK3399 Dual-core ARM Cortex-A72 and a Quad-core ARM Cortex-A53 CPU. It has onboard memory and eMMC storage. Its dual HDMI outputs support two displays, with one reaching 4K resolutions and the other running at a resolution of 2K. Giada brings all of these components together with the Android 7.1 operation system, making it a suitable entry-level signage player for Android environments.

Features:

  • Rockchip RK3399
  • Onboard 4GB LPDDR4 memory
  • Two HDMI ports, one supporting 4K and the other 2K
  • Onboard eMMC storage of 32GB
  • One USB3.0 port and three  USB2.0 ports
  •  RS232 Serial Port
  • RJ45 Network connection
  • Mini-PCIe slot for 3G/4G connectivity
  • SIM Card slot

Specifications:

  • Processor
    • CPU: Rockchip RK3399
    • Frequency: Up to 1.8GHz
    • Processing Units: 2 Cores Cortex-A72 & 4 Cores Cortex-A53
    • TDP: 6W
  • Memory
    • Type: LPDDR4
    • Socket: Onboard
    • Size: 4GB
  • Graphics
    • GPU: Mali-T860MP4
    • Graphic Engine: OpenGL ES1.1/2.0/3.0/3.1, OpenCL, Support AFBC (ARM Frame Neck Scarfer Compression)
    • Video Decoding Capability: 4K VP9 decoders, 4K 10bits H.265 video decoders, 1080P VC-1, MPEG-1/2/4, VP8 video decoders
  • Display
    • HDMI: 1x HDMI (Max. 4K@60Hz) | 1x HDMI (Max. 2K@30Hz)
  • Network
    • Controller: 1 x Pef7071 PHY
    • Interface: 1x RJ45
  • I/O
    • USB: 1 x USB3.2 Gen1 (OTG), 3 x USB2.0
    • Serial Port: 2x RS232
    • Audio: 1x MIC-IN, 1x AUDIO-OUT
    • Mini-PCIe: 1x Full-size Mini-PCIe for 3G/4G
    • SIM: 1x SIM Slot
    • WiFi on Board: 1x WiFi Module Onboard (WIFI 5GHz, IEEE802.11 a/b/g/ac)
  • Storage
    • eMMC: 32GB
  • Power
    • Power Type: DC-IN
    • Power Adapter: 12V/2A
  • Environment
    • Operating Temperature: 0℃ ~ 40℃ at 0.7m/s Air Flow
    • Relative Humidity: 95%@40℃ (non-condensing)
  • Supported Operating Systems: Android 7.1
  • Mounting: Desk/Wall Mounting and VESA
  • Certification: CE, FCC
  • Dimensions: 11.66 x 10.74 x 3 cm

What’s in The Box:

  • Giada DN74 ARM RK3399 Fanless Android Signage Player 32GB x1
  • AC Power Adapter x1
  • WiFi Antenna x1

The Giada DN74 ARM Fanless Android Signage Player utilises an RK3399 Dual-core ARM Cortex-A72 and a Quad-core ARM Cortex-A53 CPU. It has onboard memory and eMMC storage. Its dual HDMI outputs support two displays, with one reaching 4K resolutions and the other running at a resolution of 2K. Giada brings all of these components together with the Android 7.1 operation system, making it a suitable entry-level signage player for Android environments.

Features:

  • Rockchip RK3399
  • Onboard 4GB LPDDR4 memory
  • Two HDMI ports, one supporting 4K and the other 2K
  • Onboard eMMC storage of 32GB
  • One USB3.0 port and three  USB2.0 ports
  •  RS232 Serial Port
  • RJ45 Network connection
  • Mini-PCIe slot for 3G/4G connectivity
  • SIM Card slot

Specifications:

  • Processor
    • CPU: Rockchip RK3399
    • Frequency: Up to 1.8GHz
    • Processing Units: 2 Cores Cortex-A72 & 4 Cores Cortex-A53
    • TDP: 6W
  • Memory
    • Type: LPDDR4
    • Socket: Onboard
    • Size: 4GB
  • Graphics
    • GPU: Mali-T860MP4
    • Graphic Engine: OpenGL ES1.1/2.0/3.0/3.1, OpenCL, Support AFBC (ARM Frame Neck Scarfer Compression)
    • Video Decoding Capability: 4K VP9 decoders, 4K 10bits H.265 video decoders, 1080P VC-1, MPEG-1/2/4, VP8 video decoders
  • Display
    • HDMI: 1x HDMI (Max. 4K@60Hz) | 1x HDMI (Max. 2K@30Hz)
  • Network
    • Controller: 1 x Pef7071 PHY
    • Interface: 1x RJ45
  • I/O
    • USB: 1 x USB3.2 Gen1 (OTG), 3 x USB2.0
    • Serial Port: 2x RS232
    • Audio: 1x MIC-IN, 1x AUDIO-OUT
    • Mini-PCIe: 1x Full-size Mini-PCIe for 3G/4G
    • SIM: 1x SIM Slot
    • WiFi on Board: 1x WiFi Module Onboard (WIFI 5GHz, IEEE802.11 a/b/g/ac)
  • Storage
    • eMMC: 32GB
  • Power
    • Power Type: DC-IN
    • Power Adapter: 12V/2A
  • Environment
    • Operating Temperature: 0℃ ~ 40℃ at 0.7m/s Air Flow
    • Relative Humidity: 95%@40℃ (non-condensing)
  • Supported Operating Systems: Android 7.1
  • Mounting: Desk/Wall Mounting and VESA
  • Certification: CE, FCC
  • Dimensions: 11.66 x 10.74 x 3 cm

What’s in The Box:

  • Giada DN74 ARM RK3399 Fanless Android Signage Player 32GB x1
  • AC Power Adapter x1
  • WiFi Antenna x1
