TrendNet 60 W Single Output Industrial DIN-Rail Power Supply

TrendNet 60 W Single Output Industrial DIN-Rail Power Supply - TechTic
Regular price R 999.00

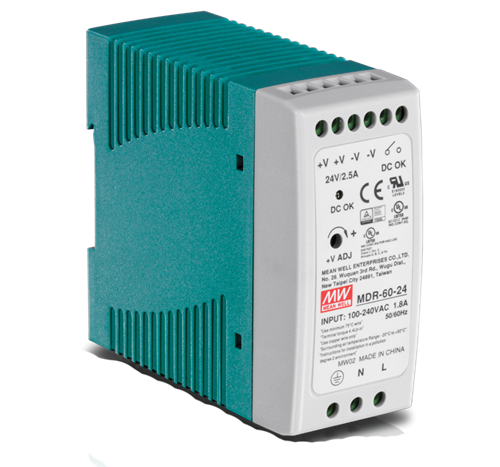

TRENDnet's 60 W Single Output Industrial DIN-Rail Power Supply, model TI-M6024 (Mean Well MDR-60-24), supplies up to 60 Watts of power to industrial PoE equipment such as switches, network cameras, and WiFi access points. This power supply comes with an integrated DIN-rail mount and overload current protection.

Highlights
• Industrial power supply with integrated DIN-rail mount
• Provides up to 60 Watts of power (24 V, 2.5 A)
• Universal AC input
• Short circuit/overload/over voltage protection
• UL 508 approved
• 100% full load burn-in test
• Extreme -20 to 70 °C (-4 to 158 °F) operating temperature range


Features

60 Watt Power
Provides up to 60 Watts (24 V, 2.5 A) of power for PoE devices such as switches, network cameras, and access points.

Overload Protection
Overload/short circuit/over voltage protection

Full Load Test
This power supply undergoes a 100 % full load burn-in test

Passive Cooling
Cooling by free air convection

DIN-Rail Mount
Metal enclosure with integrated DIN-rail mount

Extreme Temperatures
Rated for an operating temperature range of -20 to 70 °C (-4 to 158 °F)

Safety Certifications
Certified for UL 508, UL 60950-1, TUV EN60950-1, and Class I, Div. 2 Group A, B, C, D hazardous locations T4

Electro Magnetic Emission/Immunity
Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2/3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, and criteria A

Vibration Resistant
Rated for vibration (IEC 60068-2-6)

LED Indicator
LED indicator confirms power to the unit
Specifications

• Product Code: TI-M6024
• Description: TrendNet 60 W Single Output Industrial DIN-Rail Power Supply


Interface
• Input: 100-240 V AC, 50/60 Hz, 1.8 A 120-370 V DC
• Output: 60 Watts, 24 V, 2.5 A
• DIN rail: TS-35/7.5 or 15

Housing
• Metal case
• DIN-rail mount
• LED indicator confirms power to the unit

Special Features
• DC OK relay contact
• Short circuit/overload/over voltage protection
• Protection type: shut down and repower

Operating Temperature
- 20 to 70 °C (- 4 to 158 °F)

Operating Humidity
• Max. 90 % non-condensing
• 2,992,000 hours

Dimensions
• 40 x 100 x 90 mm (1.6 x 3.9 x 3.5 in.)

Weight
• 300 g (10.6 oz.)

Certifications
• CE
• UL 508
• UL 60950-1
• CB 60950-1
• TUV EN60950-1
• Class I, Div. 2 hazardous locations T4
