The Antec VORTEX LUM 360 ARGB AIO Liquid Cooler is designed for high-performance cooling, featuring a stunning suspended spiral pump head inspired by the swirling motion of a vortex. This unique design not only enhances aesthetics with vibrant ARGB lighting effects but also ensures superior cooling performance from multiple angles. With a 360mm aluminium radiator, this all-in-one liquid cooler efficiently dissipates heat, making it an ideal solution for gaming rigs and high-performance workstations.

Equipped with a massive copper base plate, the VORTEX LUM 360 maximizes heat transfer, ensuring optimal cooling even under heavy workloads. Its durable EPDM high-density tubing minimizes liquid evaporation, contributing to long-lasting and reliable cooling performance. The system is further supported by three powerful 120mm ARGB PWM fans, which provide exceptional airflow and efficient heat dissipation with speeds ranging from 800 to 1800 RPM.

This AIO cooler includes an advanced ARGB controller that allows users to sync and customize lighting effects with their motherboard, offering complete control over each LED’s colour and pattern. With 13 dense radiator fins and a water pump rated for a flow rate of 1300mL/min, the VORTEX LUM 360 is built for extreme cooling efficiency. Its whisper-quiet operation, with noise levels kept at a maximum of 31 dB(A), ensures a balance of power and silent performance.

Compatible with a wide range of Intel and AMD sockets, including LGA 1700, AM5, and TR4, the Antec VORTEX LUM 360 is a versatile cooling solution for modern CPUs. Whether pushing your system to its limits in gaming or intensive workloads, this AIO liquid cooler delivers high-performance thermal management with stylish ARGB customization, keeping your PC cool and visually stunning.

FEATURES:

• All-in-one design
• 360mm aluminium radiator
• 3 x 120mm PWM ARGB fans
• Suspended spiral pump head design
• Massive copper base plate
• EPDM high-density tubing
• Extreme cooling performance
• Intel and AMD compatible

SPECIFICATIONS:

• Radiator:
  • Radiator Material: Aluminum
  • Radiator Dimensions: 39.7 x 12 x 2.7 cm
• Pump:
  • Rating Voltage: DC 12 V
  • Minimum Startup Voltage: ≥5.0  V
  • Fan Speed: 2800±10% RPM
  • Rated Current: 0.25±20% A
  • Consumed Power: 3.0 W
  • Flow rate: ≥1300 mL/min
  • Water Pressure: 1.4 m
  • Operation Temperature: -10°C ~ +60°C
  • Noise Level: ≤28 dB(A)
  • Lifespan: 40,000 hours
  • Connector: PUMP: 3-pin | LED: 3-pin
  • Dimensions: Φ6.7*4.8 cm
• Fan:
  • Bearing Type: Hydraulic Bearing
  • LED Type: Addressable RGB
  • Fan Speed: 800±200~1800±10% RPM
  • Airflow: 71.5 CFM (max.)
  • Air Pressure: 2.45 mmH₂O (max.)
  • Fan Noise Level: 31 dB(A)
  • Lifespan: 40,000 hours
  • Connector: PH 2.0 7-pin (PWM+ARGB)
  • Rated Voltage: FAN: DC 12 V | LED: DC 5 V
  • Operation Voltage: FAN: DC 10.8-13.2 V | LED: DC 4.5-5.5 V
  • Rated Current: FAN : 0.20-0.25 A | LED : 0.32 A
  • TDP: ≤ 280W
  • Dimensions: 12 x 12 x 2.5 cm
• Socket Compatibility CPU
  • Intel: LGA 115X/1200/1700/20XX/1851
  • AMD: AM3/AM4/AM5/TR4
• Colour: White

WHAT'S IN THE BOX:

• Antec VORTEX LUM 360 ARGB AIO CPU Liquid Cooler - White x1
• Mounting kit with thermal paste x1
• Screws kit x1
• SATA Power Cable x1
• RGB Cable x1

The Antec VX100M ARGB M-ATX Mini Tower Gaming Chassis is designed for gamers and PC builders looking for a compact yet high-performance case. With its sleek, minimalist design, this chassis not only saves space but also ensures optimal airflow for efficient cooling. The tempered glass side panel allows you to display your gaming setup without obstruction, highlighting your components and ARGB lighting effects. Despite its smaller form factor, the VX100M offers support for up to seven 120mm fans, making it an excellent choice for those who prioritize cooling performance.

Built for maximum airflow, the VX100M features a vented front panel that enhances ventilation while maintaining a stylish appearance. The well-placed air intakes at the front contribute to effective heat dissipation, ensuring that your components stay cool even during intense gaming sessions. With pre-installed cooling solutions that include three 120mm ARGB fans and an additional rear 120mm ARGB fan, the case delivers excellent out-of-the-box cooling performance while allowing users to customize their RGB lighting for a personalized setup.

Functionality meets convenience with the VX100M’s user-friendly design. The front I/O panel is equipped with essential connectivity options, including a power button, reset button, LED control button, USB 3.0 and USB 2.0 ports, and a headphone/mic combo jack. These features provide easy access to your peripherals while allowing seamless control over your system’s lighting. The chassis also includes a dust filter at the top, helping to maintain a clean and dust-free interior, which is crucial for long-term performance and maintenance.

Despite its compact size, the VX100M offers great flexibility for hardware configurations. It supports Micro-ATX and ITX motherboards, accommodates GPUs up to 275mm in length, and allows for CPU coolers up to 160mm in height. Storage options are also well considered, with dedicated slots for both 3.5" and 2.5" drives. Whether you're building a sleek gaming rig or a powerful workstation, the Antec VX100M ARGB Mini Tower Chassis combines style, airflow, and performance in a space-saving design that doesn’t compromise on quality.

FEATURES:

• Unique front vented design
• Smaller form factor for saving space
• High-airflow and ventilation
• Tempered glass side panel
• 3 x 120mm ARGB fans pre-installed with support for up to 7 x fans

SPECIFICATIONS:

• Form Factor: Mini Tower
• Materials: Steel + plastic
• Mainboard Support: Micro-ATX, ITX
• Front Access & Controls: Power, Reset, LED Control Button, USB 3.0 x 1, USB 2.0 x 2, Headphone/Mic Combo Jack
• Side Panel: Tempered Glass
• Drive Bays:
  • Expansion Slots: 4
  • 3.5″ /2.5″: 1/1
• Fan Support:
  • Front: 2 x 120mm
  • Top: 2 x 120mm
  • Power Supply Shroud: 2 x 120mm
  • Rear: 1 x 120mm
  • Included Fan(s): 2 x 120mm ARGB fans in front + 1 x 120mm ARGB fan in rear
• Clearance:
  • Max GPU Length: ≤ 275mm
  • Max CPU Cooler Height: ≤ 160mm
  • Max PSU Length: ≤ 160mm(including cable)
• Dust Filter: Top
• Colour: Black
• Product Dimensions: 32.5 x 19.5 x 38.8 cm
• Product Weight: 2800g

WHAT’S IN THE BOX:

• Antec VX100M ARGB M-ATX Mini Tower Gaming Chassis – Black x1

Quick Specs

• Supports AMD Ryzen 7000, 8000, and 9000 Series processors for responsive performance.
• Achieve high-speed gaming with DisplayPort and HDMI graphics output.
• Expand your system's capabilities with support for up to 256GB of DDR5 memory.
• Enjoy streamlined connectivity through rear USB 3.2 Gen1 Type-A ports.
• Build a compact yet powerful system using the Micro ATX form factor.

Designed for AMD Ryzen 7000 series

The ASRock A620AM Pro RS AM5 motherboard is engineered to support the latest AMD Ryzen 7000, 8000, and 9000 series processors, providing a robust foundation for gaming, content creation, and everyday computing. Paired with the AMD AM5 socket, this Micro ATX motherboard unlocks the potential of your CPU, ensuring efficient performance and responsiveness.

Next-gen memory support for enhanced performance

Take advantage of DDR5 memory support, allowing you to install up to 256GB of high-speed RAM. This substantial memory capacity ensures smooth multitasking, faster loading times, and seamless operation of demanding applications. Experience a noticeable boost in system performance, whether you are gaming, editing videos, or working with large datasets.

Versatile connectivity for all your peripherals

Equipped with multiple USB 3.2 Gen1 Type-A ports on the rear panel, the ASRock A620AM Pro RS offers convenient connectivity for your peripherals. Transfer data quickly, connect external storage devices, and expand your system's capabilities with ease. The inclusion of HD audio jacks ensures high-quality sound output for immersive gaming and multimedia experiences.

Compact Micro ATX form factor

The Micro ATX motherboard form factor allows for a compact build without compromising on features. This motherboard is perfect for smaller PC cases, making it ideal for space-constrained environments. Despite its size, the ASRock A620AM Pro RS offers ample expansion options and robust performance, making it a versatile choice for a variety of applications.

Reliable and stable performance

The ASRock A620AM Pro RS AM5 motherboard is built with high-quality components and advanced engineering to ensure reliable and stable performance. This motherboard is designed to withstand the demands of modern computing, providing a solid foundation for your system. With support for Microsoft Windows 10 and 11 64-bit operating systems, you can be confident in its compatibility and performance.

FEATURES:

• Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
• 6+2+1 Phase Power Design, Dr.MOS
• 4 x DDR5 DIMMs
• Supports Dual Channel, up to 8000+ (OC)
• 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x4, 1 x M.2 Key E for WiFi
• Graphics Output Options: 1 x HDMI, 1 x DisplayPort
• Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• 2 x Hyper M.2 (PCIe Gen4x4)
• 1 x Ultra M.2 (PCIe Gen3x4)
• 2 x SATA3
• 2 x USB 3.2 Gen1 Type-C (1 x Rear, 1 x Front)
• 5 x USB 3.2 Gen1 (3 x Rear, 2 x Front)
• 8 x USB 2.0 (4 x Rear, 4 x Front)
• Realtek 2.5G LAN
• Supports BIOS Flashback

SPECIFICATIONS:

• CPU & Chipset
  • Socket: AMD AM5
  • Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
  • Chipset: AMD A620A
• Bios
  • 256Mb AMI UEFI Legal BIOS with GUI support
• Memory
  • Dual Channel DDR5 Memory Technology
  • 4 x DDR5 DIMM Slots
  • Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)
  • Max. capacity of system memory: 256GB
  • Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
• Graphics Output
  • Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
  • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
• Expansion Slots
• CPU:
  • 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
• Chipset:
  • 1 x PCIe 3.0 x16 Slot (PCIE2), supports x2 mode*
  • 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT PCIe Wi-Fi module
  • 15μ Gold Contact in VGA PCIe Slot (PCIE1)
  • * Supports NVMe SSD as boot disks
• Audio
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • Nahimic Audio
• LAN
  • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  • Dragon RTL8125BG
  • Supports Dragon 2.5G LAN Software
  • Smart Auto Adjust Bandwidth Control
  • Visual User Friendly UI
  • Visual Network Usage Statistics
  • Optimized Default Setting for Game, Browser, and Streaming Modes
  • User Customized Priority Control
• Storage
• CPU:
  • 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
• Chipset:
  • 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
  • 2 x SATA3 6.0 Gb/s Connectors
  • * Supports NVMe SSD as boot disks
• RAID
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
  • * Requires additional M.2 NVMe expansion cards to support RAID 10
• USB
  • CPU:
  • 1 x USB 3.2 Gen1 Type-C (Rear)
  • 2 x USB 3.2 Gen1 Type-A (2 Rear (USB32_1, USB32_2)) Chipset:
  • 1 x USB 3.2 Gen1 Type-C (Front)
  • 3 x USB 3.2 Gen1 Type-A (1 Rear (USB32_3), 2 Front)
  • 8 x USB 2.0 (4 Rear, 4 Front)
  • * All USB ports support ESD Protection
• Connector
  • 1 x SPI TPM Header
  • 1 x Power LED and Speaker Header
  • 1 x RGB LED Header*
  • 3 x Addressable LED Headers**
  • 1 x CPU Fan Connector (4-pin)***
  • 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
  • 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
  • 1 x Front Panel Audio Connector
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
  • 1 x Front Panel Type C USB 3.2 Gen1 Header
  • * Supports in total up to 12V/3A, 36W LED Strip
  • ** Support in total up to 5V/3A, 15W LED Strip
  • *** CPU_FAN1 supports the fan power up to 1A (12W).
  • **** CPU_FAN2/WP supports the fan power up to 2A (24W).
  • ***** CHA_FAN1~3/WP support the fan power up to 2A (24W).
  • CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.
• Rear Panel I/O
  • 2 x Antenna Mounting Points
  • 1 x HDMI Port
  • 1 x DisplayPort 1.4
  • 3 x USB 3.2 Gen1 Type-A Ports
  • 1 x USB 3.2 Gen1 Type-C Port
  • 4 x USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • 1 x BIOS Flashback Button
  • HD Audio Jacks: Line in / Front Speaker / Microphone
• Software
  • ASRock Motherboard Utility (A-Tuning)
  • ASRock Dragon 2.5G LAN Software
  • ASRock Polychrome SYNC*
  • *These utilities can be downloaded from ASRock Live Update & APP Shop.
• UEFI
  • ASRock Full HD UEFI
  • ASRock Auto Driver Installer
  • ASRock Instant Flash
• Form Factor
  • Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
• OS Compatibility: Microsoft Windows® 10 64-bit / 11 64-bit
• Certifications:
  • FCC, CE
  • ErP/EuP ready (ErP/EuP ready power supply is required)

WHAT'S IN THE BOX:

• ASRock A620AM Pro RS AM5 M-ATX Motherboard x1
• SATA Cables x2
• Screws for M.2 Sockets x4
• Standoff for M.2 Socket x1

Why ASRock?

ASRock is a global leader in AM5 motherboard technology, delivering innovative and reliable solutions for gamers, enthusiasts, and professionals. With a commitment to quality and performance, ASRock motherboards are designed to maximise the potential of your system, ensuring a superior computing experience. Trust ASRock for cutting-edge technology and exceptional value in South Africa. The ASRock A620AM Pro RS Micro ATX motherboard provides exceptional value.

The ASRock B550M Wi-Fi SE AMD AM4 m-ATX Motherboard is a high-performance solution tailored for AMD enthusiasts and gamers. Built for AMD Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000, and 5000 G-Series Desktop Processors, it delivers exceptional performance and flexibility for a wide range of applications.

This motherboard supports DDR4 memory up to 4733+ MHz (OC) with a maximum capacity of 128GB across four DIMM slots, ensuring smooth multitasking and future scalability. The 8 Power Phase Design provides reliable power delivery, ideal for stable operation and overclocking. For graphics and expansion, the board features 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, and 1 PCIe 3.0 x1 slot, offering versatility for GPUs and other add-ons.

Storage options include 4 SATA3 ports and 1 Hyper M.2 slot (PCIe Gen4 x4) for ultra-fast NVMe SSDs, providing ample room for high-speed storage. Onboard connectivity includes 8 USB 3.2 Gen1 ports (4 rear, support for 4 in front) and 6 USB 2.0 ports (2 rear, support for 4 in front) for external devices. With Realtek Gigabit LAN, Intel® 802.11ac Wi-Fi, and Bluetooth 4.2, it ensures seamless network connectivity for gaming, streaming, and productivity.

The Realtek ALC1220 7.1 CH HD Audio Codec delivers an immersive audio experience with content protection, perfect for gaming or media consumption. The HDMI output supports high-resolution displays, providing clear and vibrant visuals. Compact in its m-ATX form factor, the ASRock B550M Wi-Fi SE combines robust performance, advanced connectivity, and excellent audio into a versatile motherboard suitable for a variety of builds.

FEATURES:

• Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
• Supports DDR4 4733+ (OC)
• 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
• Graphics Output Options: HDMI
• 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
• 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4)
• 8 USB 3.2 Gen1 (4 Rear, 4 Front)
• 6 USB 2.0 (2 Rear, 4 Front)
• Realtek Gigabit LAN
• Intel^® 802.11ac Wi-Fi Module + Bluetooth 4.2

SPECIFICATIONS:

• Socket: AMD Socket AM4
• CPU (Max Support): Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors | 8 Power Phase design
• Chipset: AMD PRO565
• DDR4 Memory: DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
• Memory Channel: Dual
• DIMM Slots: 4
• Max Memory (GB): 128
• PCI-E x16: 1
• PCI-E GEN: Gen4
• PCI-E x3: 1
• SATAIII: 4
• M.2 Slot: 1
• TPM (Header): 1
• RAID: 0/1/10
• LAN: Realtek RTL8111H Gigabit LAN
• Wi-Fi: Intel® 802.11ac Wi-Fi Module | Supports Bluetooth 4.2+ High speed class II
• USB 3.2 ports (Front): 4(Gen 1, Type A)
• USB 3.2 ports (Rear): 4(Gen 1, Type A)
• USB 2.0 ports (Front): 4(Type A)
• USB 2.0 ports (Rear): 2(Type A)
• Serial Ports(Front): 1
• Audio ports (Rear): Realtek ALC1220 Audio Codec
• HDMI: 1
• Form Factor: M-ATX
• Operating System: Support for Windows® 10 64-bit / 11 64-bit

WHAT’S IN THE BOX:

• ASRock B550M Wi-Fi SE AMD AM4 m-ATX Motherboard – Black x1

Please note: This motherboard is not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G CPUs.

Quick Specs

• Supports AMD Ryzen 7000, 8000, and 9000 Series Processors: Future-proof your gaming rig.
• AMD B650 Chipset: Ensures optimal performance and efficient power delivery.
• Up to 256GB DDR5 Memory Support: Experience lightning-fast responsiveness.
• HDMI and DisplayPort Outputs: Enjoy stunning visuals with integrated graphics.
• Micro ATX Form Factor: Fits perfectly in compact and mid-tower cases.

Dominate the Game with AMD AM5 and ASRock

The ASRock B650M PG Lightning Micro ATX Motherboard is engineered to unlock the full potential of AMD's Ryzen 7000, 8000, and 9000 series processors. This AM5 Motherboard is perfect for gamers and PC enthusiasts looking to build a high-performance system without compromising on space. Featuring the AMD B650 chipset, it delivers exceptional speed, stability, and future-proof compatibility. The B650M PG Lightning offers incredible value, making it a top choice for your next build.

Experience Blazing-Fast DDR5 Memory

With support for up to 256GB of DDR5 memory, this Micro ATX Motherboard allows you to take advantage of the latest advancements in memory technology. Enjoy faster load times, smoother multitasking, and improved overall system responsiveness, whether you are gaming, streaming, or creating content. Get the most out of your AM5 Motherboard with high-speed DDR5.

Immersive Visuals with Integrated Graphics

The ASRock B650M PG Lightning offers both HDMI and DisplayPort outputs, allowing you to connect to a variety of displays and enjoy stunning visuals. Whether you are gaming on a high-refresh-rate monitor or working on a professional-grade display, this AM5 Motherboard delivers exceptional image quality. Enjoy vivid and clear graphics with this versatile motherboard.

Build a Compact Powerhouse

The Micro ATX form factor of this AM5 Motherboard makes it an ideal choice for compact and mid-tower PC cases. This allows you to build a powerful gaming rig or workstation without sacrificing valuable desk space. Its design ensures efficient cooling and easy cable management, making it a breeze to assemble and maintain. The Micro ATX Motherboard design provides flexibility without compromising performance.

Future-Proof Connectivity and Expansion

Equipped with the latest connectivity options, including USB ports and high-speed storage interfaces, the ASRock B650M PG Lightning ensures you are ready for the future. Expand your system with ease using the available PCIe slots, and enjoy lightning-fast data transfer speeds for your SSDs and other peripherals. This Micro ATX Motherboard offers all the connectivity you need.

FEATURES:

• Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
• 6+2+1 Power Phase, Dr.MOS
• 4 x DDR5 DIMMs
• Supports Dual Channel, up to 7200+ (OC)
• 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key-E for Wi-Fi
• Graphics Output: HDMI, DisplayPort
• Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• 4 SATA3, 1 Blazing M.2 (PCIe Gen5x4),
• 1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen4x2)
• 1 USB 3.2 Gen2 Type A+C (Rear),
• 1 USB 3.2 Gen1 Type-C (Front),
• 6 USB 3.2 Gen1 Type-A (2 Rear, 4 Front),
• Phantom Gaming 2.5G LAN
• Supports ASRock Auto Driver Installer, BIOS Flashback

SPECIFICATIONS:

• CPU & Chipset
  • Socket: AMD AM5
  • Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*
  • Chipset: AMD B650
  • *The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
• Bios
  • 256Mb AMI UEFI Legal BIOS with GUI support
• Memory
  • Dual Channel DDR5 Memory Technology
  • 4 x DDR5 DIMM Slots
  • Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
  • Max. capacity of system memory: 256GB
  •  Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
  • *Please refer to Memory Support List for more information.
• Graphics Output
  • Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
  • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
• Expansion Slots
• CPU:
  • 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
  • 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*
• Chipset:
  • 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT PCIe Wi-Fi module
  • Supports AMD CrossFire™
  • 15μ Gold Contact in VGA PCIe Slot (PCIE1)
  • * Supports NVMe SSD as boot disks
• Audio
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • Nahimic Audio
• LAN
  • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  • Dragon RTL8125BG
  • Supports Phantom Gaming LAN Software
  • Smart Auto Adjust Bandwidth Control
  • Visual User Friendly UI
  • Visual Network Usage Statistics
  • Optimized Default Setting for Game, Browser, and Streaming Modes
  • User Customized Priority Control
• Storage
• CPU:
  •  1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
• Chipset:
  • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  • 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*
  • 4 x SATA3 6.0 Gb/s Connectors
  • * Supports NVMe SSD as boot disks
• RAID
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
  • * Requires additional M.2 NVMe expansion cards to support RAID 10
• USB
  • 1 x USB 3.2 Gen2 Type-C (Rear)
  • 1 x USB 3.2 Gen2 Type-A (Rear)
  • 1 x USB 3.2 Gen1 Type-C (Front)
  • 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
  • 8 x USB 2.0 (4 Rear, 4 Front)
  • * All USB ports support ESD Protection
• Connector
  • 1 x SPI TPM Header
  • 1 x Power LED and Speaker Header
  • 1 x RGB LED Header*
  • 3 x Addressable LED Headers**
  • 1 x CPU Fan Connector (4-pin)***
  • 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
  • 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
  • 1 x Front Panel Audio Connector
  • 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  • 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
  • 1 x Front Panel Type C USB 3.2 Gen1 Header
  • * Supports in total up to 12V/3A, 36W LED Strip
  • ** Support in total up to 5V/3A, 15W LED Strip
  • *** CPU_FAN1 supports the fan power up to 1A (12W).
  • **** CPU_FAN2/WP supports the fan power up to 2A (24W).
  • ***** CHA_FAN1~3/WP support the fan power up to 2A (24W).
  • CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.
• Rear Panel I/O
  • 2 x Antenna Mounting Points
  • 1 x HDMI Port
  • 1 x DisplayPort 1.4
  • 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
  • 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
  • 2 x USB 3.2 Gen1 Type-A Ports
  • 4 x USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • 1 x BIOS Flashback Button
  • HD Audio Jacks: Line in / Front Speaker / Microphone
• Software
  • ASRock Motherboard Utility (Phantom Gaming Tuning)
  • ASRock Phantom Gaming LAN Software
  • ASRock Polychrome SYNC*
  • *These utilities can be downloaded from ASRock Live Update & APP Shop.
• UEFI
  •  ASRock Full HD UEFI
  • ASRock Auto Driver Installer
  • ASRock Instant Flash
• Form Factor
  • Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
• OS Compatibility: Microsoft Windows® 10 64-bit / 11 64-bit
• Certifications:
  • FCC, CE
  • ErP/EuP ready (ErP/EuP ready power supply is required)

WHAT'S IN THE BOX:

• ASRock B650M PG Lightning AMD AM5 Micro ATX Motherboard - Black x1

Why Asrock

ASRock consistently delivers innovative and reliable motherboards, and the B650M PG Lightning is no exception. Designed with the South African gamer and PC enthusiast in mind, ASRock combines cutting-edge technology with robust build quality, ensuring optimal performance and long-term stability for your system. If you seek a reliable AM5 Motherboard, look no further. Trust ASRock to power your next-generation computing experience with this exceptional Micro ATX Motherboard.

Powerful, compact, and ready for next-gen performance—meet the ASRock B650M-HDV/M.2 AM5 Micro-ATX Motherboard, an efficient yet feature-rich foundation for your Ryzen™ gaming or productivity build. Built on the AMD B650 chipset and designed to support Ryzen™ 9000, 8000, and 7000 Series processors, this motherboard offers premium performance and future-forward connectivity in a compact Micro-ATX form factor. Engineered for reliability, it features 8+2+1 power phases with Dr.MOS, and a dedicated DDR5 protection circuit that safeguards your memory modules during installation or upgrades, making system building safer and easier for enthusiasts and first-timers alike.

Despite its space-saving design, the B650M-HDV/M.2 doesn't skimp on speed. It features dual PCIe 4.0 x16 slots, a Blazing M.2 PCIe Gen5 x4 slot supporting up to 128Gb/s NVMe SSDs, and a secondary Hyper M.2 Gen4 x4 slot for high-speed storage expansion. Networking is handled by Dragon 2.5G LAN, delivering up to 2.5x faster transfer rates than standard Gigabit Ethernet—ideal for online gaming, streaming, or large file transfers. Onboard HDMI 2.1 and DisplayPort 1.4 support integrated AMD RDNA™ 2 graphics, capable of delivering up to 4K 120Hz visuals for breathtaking clarity. Front USB 3.2 Gen2 Type-C connectivity adds blazing-fast 10Gbps transfer rates and a reversible design for added convenience.

FEATURES:

• Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
• 8+2+1 Power Phase, Dr.MOS
• 2 x DDR5 DIMMs
• Supports Dual Channel, up to 7200+ (OC)
• 2 x PCIe 4.0 x16, 1 x PCIe 4.0, 1 x M.2 Key E for Wi-Fi
• Integrated AMD RDNA™ 2 Graphics
• Graphics Output Options: HDMI, DisplayPort
• Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• 4 SATA3, 1 Blazing M.2 (PCIe Gen5x4),
• 1 Hyper M.2 (PCIe Gen4x4)
• 1 USB 3.2 Gen2 Front Type-C,
• 7 USB 3.2 Gen1 (2 x Rear, 1 x Rear Type-C, 4 x Front)
• Dragon 2.5G LAN
• Supports ASRock Auto Driver Installer, BIOS Flashback
• Pre-Installed I/O Shield

SPECIFICATIONS:

• CPU & Chipset
  • Socket: AMD AM5
  • Supported CPUs: Ryzen™ 9000, 8000 and 7000 Series Processors
  • Chipset: AMD B650
• Memory
  • Dual Channel DDR5 Memory Technology
  • 2 x DDR5 DIMM Slots
  • Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)
  • Max. capacity of system memory: 128GB
  • Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
• Graphics Output
  • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
• Expansion Slots
• CPU:
  • 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
  • 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode
• Chipset:
  • 1 x PCIe 4.0 x1 Slot (PCIE2)
  • 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT PCIe Wi-Fi module
  • Supports AMD CrossFire™
  • 15μ Gold Contact in VGA PCIe Slot (PCIE1)
• Storage
• CPU:
  • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
• Chipset:
  • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
  • 4 x SATA3 6.0 Gb/s Connectors
• Networking
  • LAN: Realtek Dragon RTL8125BG 2.5G
• USB Ports
  • 1 x USB 3.2 Gen2 Type-C (Front)
  • 1 x USB 3.2 Gen1 Type-C (Rear)
  • 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
  • 8 x USB 2.0 (4 Rear, 4 Front)
• Audio
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • Nahimic Audio
• Connector
  • 1 x SPI TPM Header
  • 1 x Power LED and Speaker Header
  • 1 x CPU Fan Connector (4-pin)
  • 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector
  • 1 x Front Panel Audio Connector
  • 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  • 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
  • 1 x Front Panel Type C USB 3.2 Gen2 Header
• DIY Features
  • BIOS Flashback Button
  • ASRock Post Status Checker
  • ASRock Auto Driver Installer
  • Reinforced PCIe Steel Slot
  • Pre-Installed I/O Shield
• Rear I/O Ports
  • 2 x Antenna Mounting Points
  • 1 x HDMI Port
  • 1 x DisplayPort 1.4
  • 1 x USB 3.2 Gen1 Type-C Port
  • 2 x USB 3.2 Gen1 Type-A Ports
  • 4 x USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • 1 x BIOS Flashback Button
  • HD Audio Jacks: Line in / Front Speaker / Microphone
• Software & UEFI
  • Software
  • ASRock Motherboard Utility (A-Tuning)
  • ASRock Dragon 2.5G LAN Software*
  • UEFI
  • ASRock Full HD UEFI
  • ASRock Auto Driver Installer
  • ASRock Instant Flash
• Form Factor: Micro ATX Form Factor (24.4 cm x 22.6 cm) | 2oz Copper PCB
• OS Compatibility: Microsoft Windows® 10 64-bit / 11 64-bit

WHAT'S IN THE BOX:

• ASRock B650M-HDV/M.2 AM5 Micro-ATX Motherboard x1
• User Manual x1
• SATA Data Cables x2
• Screws for M.2 Sockets x3

Dominate the battlefield with the ASRock B850 Riptide WiFi AM5 ATX Motherboard, a high-performance solution crafted for gamers who demand power, precision, and stability. Inspired by the force of ocean riptides, this board combines calm efficiency with relentless strength, designed to deliver next-gen computing with stunning overclocking capabilities and immersive visuals.

Powered by the AMD B850 chipset, this ATX motherboard supports AMD Ryzen™ 9000, 8000, and 7000 Series processors on the AM5 socket, providing a future-ready platform for gamers and creators alike. The 8-layer PCB ensures efficient power delivery, signal stability, and better heat dissipation—ideal for those pushing their systems with DDR5 memory up to an impressive 8000+ MHz (OC), backed by support for both XMP and EXPO memory profiles.

The 14+2+1 phase power design with 80A Dr.MOS VCore+SOC phases guarantees stable overclocking and power efficiency under intense workloads. For storage, unleash ultra-fast performance with 1x Blazing M.2 PCIe Gen5x4 and 3x Hyper M.2 Gen4x4 slots, alongside 4 SATA3 ports for legacy drives. And when speed matters, the onboard Killer 2.5G LAN and next-gen Wi-Fi 7 with Bluetooth 5.4 provide seamless wired and wireless connectivity for low-latency gaming and streaming.

With rich expandability including PCIe 5.0 x16 and PCIe 4.0 x16 slots, the Riptide allows for powerful GPU support. The board's USB 3.2 Gen2x2 Type-C, multiple USB 3.2 Gen2/Gen1, and eight USB 2.0 ports deliver blazing-fast data transfer and peripheral compatibility. HDMI 2.1 supports up to 4K@120Hz, perfect for modern gaming displays.

Audio is powered by the Realtek ALC4082 7.1 CH HD codec with Nahimic Audio, offering immersive surround sound with 600-ohm headphone amp support for crystal-clear audio in games or content creation.

Built with gamers in mind, the ASRock B850 Riptide features extensive ARGB/RGB headers and is Polychrome RGB Sync certified, ready for full system lighting synchronization. It also supports SignalRGB for unified control across devices and reactive lighting effects.

FEATURES:

• Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
• 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC
• 4 x DDR5 DIMMs | Supports Dual Channel, up to 8000+ (OC)
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
• Graphics Output Options: 1 HDMI
• Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
• 1 Blazing M.2 (PCIe Gen5x4) | 3 Hyper M.2 (PCIe Gen4x4) | 4 SATA3
• 1 USB 3.2 Gen2x2 Type-C (Front)
• 4 USB 3.2 Gen2 (2 Rear, 2 Rear Type-C)
• 7 USB 3.2 Gen1 (3 Rear, 4 Front)
• 8 USB 2.0 (4 Rear, 4 Front)
• Killer 2.5G LAN
• 802.11be Wi-Fi 7 + Bluetooth
• Supports Lite Release Design, Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink

SPECIFICATIONS:

• CPU & Chipset
  • Socket: AMD AM5
  • Supported CPUs: AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
  • Chipset: AMD B850
• Memory
  • Dual Channel DDR5 Memory Technology
  • 4 x DDR5 DIMM Slots
  • Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)
  • Max. capacity of system memory: 256GB
  • Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
• Graphics Output
  • Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
  • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
• Expansion Slots
• CPU:
  • 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
• Chipset:
  • 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*
  • 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
  • 15μ Gold Contact in VGA PCIe Slot (PCIE1)
• Storage
• CPU:
  • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
  • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
• Chipset:
  • 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  • 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  • ASMedia ASM1061:
  • 4 x SATA3 6.0 Gb/s Connectors
• Networking
  • LAN: Killer E3100G
  • Wireless: Wi-Fi 7 Module (802.11be 2x2) with Bluetooth 5.4
  • Dual-band 2×2 support with 6GHz band
• USB Ports
• CPU:
  • 2 x USB 3.2 Gen2 Type-C (Rear)
  • 1 x USB 3.2 Gen2 Type-A (Rear (USB32_3))
  • 1 x USB 3.2 Gen1 Type-A (Rear (USB32_1))
• Chipset:
  • 1 x USB 3.2 Gen2x2 Type-C (Front)
  • 1 x USB 3.2 Gen2 Type-A (Rear (USB32_4))
  • 6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_2 and USB32_5), 4 Front)
  • 8 x USB 2.0 (4 Rear, 4 Front)
• Audio
  • 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
  • Individual PCB Layers for R/L Audio Channel
  • Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets)
  • Nahimic Audio
• Connector
  • 1 x SPI TPM Header
  • 1 x Thermistor Cable Header
  • 1 x Power LED and Speaker Header
  • 1 x RGB LED Header*
  • 3 x Addressable LED Headers**
  • 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
  • 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
  • 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
  • 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
  • 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
  • 1 x Front Panel Audio Connector
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  • 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
  • 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
• RGB & Aesthetics
  • 1 x Power LED and Speaker Header
  • 1 x RGB LED Header*
  • 3 x Addressable LED Headers**
• DIY Features
  • ASRock Post Status Checker
  • Auto Driver Installer (via LAN)
  • Flexible Integrated I/O Shield
• Rear I/O Ports
  • 2 x Antenna Ports
  • 1 x HDMI Port
  • 1 x Optical SPDIF Out Port
  • 2 x USB 3.2 Gen2 Type-C Ports (10 Gb/s)
  • 3 x USB 3.2 Gen1 Type-A Ports*
  • 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)**
  • 4 x USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • 1 x BIOS Flashback Button
  • 1 x Line Out Jack (Gold Audio Jack)
  • 1 x Microphone Input Jack (Gold Audio Jack)
• Software & UEFI
• Software:
  • ASRock Motherboard Utility (Phantom Gaming Tuning)
  • Killer Control Center
  • ASRock Polychrome SYNC*
• UEFI:
  • ASRock EZ Mode
  • ASRock Full HD UEFI
  • ASRock Auto Driver Installer
  • ASRock Instant Flash
• Form Factor: ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm | 8 Layer PCB
• OS Compatibility: Microsoft Windows® 10 64-bit / 11 64-bit+
• Certifications: FCC, CE | ErP/EuP ready (ErP/EuP ready power supply is required)

WHAT'S IN THE BOX

• ASROCK B850 RIPTIDE WIFI AM5 ATX Motherboard x1
• SATA Data Cables x2
• ASRock WiFi 2.4/5/6 GHz Antennas x2
• ARGB Splitter Cable x1
• Thermistor Cable x1

The ASRock DeskMini USB2.0 Adapter Cable is a great way to expand your ASRock DeskMini X300W. Featuring an easy to install mount system for easily attaching to the inside of your case. The USB adapter cable features 2 x USB 2.0 ports to give you extra storage mobile storage options for your DeskMini X300W. The USB 2.0 ports are widely compatible with many devices allowing you to add more versatility to your DeskMini tower with less clutter as the adapter is installed internally in your chassis.

FEATURES:

• Ideal for expanding your DeskMini
• DeskMini USB2.0 header
• 2 x USB 2.0 ports
• DeskMini motherboard connection
• Mount with 2 screws
• Easy to install

SPECIFICATIONS:

• Interface:
• USB in (DeskMini Motherboard)
• 2 x USB 2.0 out (USB 2.0 Header)
• Colour: Black
• Mounting System: 2 x screw mounting holes

WHAT’S IN THE BOX:

• ASRock USB2.0 Adapter Cable x1

Quick Specs

• Supports Intel LGA1851 processors for cutting-edge performance.
• Utilises a Micro ATX form factor, balancing size and expandability.
• Equipped with HDMI for high-definition display output.
• Supports up to 128GB of system memory for demanding applications.
• Features high-definition audio jacks for crisp, clear sound.

Harness the Power of Intel's Latest CPUs with an ASRock Motherboard

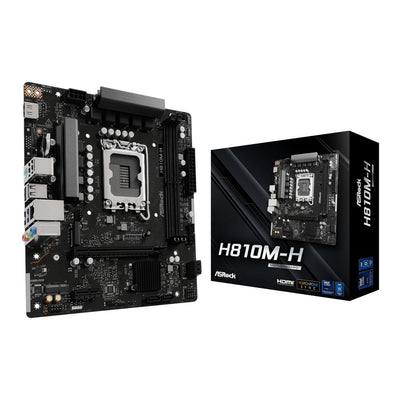

The ASRock H810M-H micro ATX motherboard is engineered to support the newest Intel LGA1851 processors, providing a robust foundation for your next PC build. Designed for both gamers and professionals, this ASRock motherboard ensures seamless performance and reliability, allowing you to tackle demanding tasks with ease.

Compact Micro ATX Form Factor

With its Micro ATX form factor, the ASRock H810M-H strikes the perfect balance between size and functionality. Ideal for smaller cases, this micro ATX motherboard doesn't compromise on features, offering ample connectivity and expansion options for a versatile computing experience.

Immersive Visual Experience with HDMI

Featuring an HDMI output, the ASRock H810M-H delivers stunning visuals for gaming, streaming, and content creation. Enjoy high-definition clarity and vibrant colours, bringing your entertainment and work to life on compatible displays.

Unleash Multitasking with 128GB Memory Support

Supporting up to 128GB of system memory, this ASRock motherboard enables you to run multiple applications simultaneously without lag. Whether you're editing videos, playing the latest games, or working on complex projects, the ASRock H810M-H ensures smooth and responsive performance.

High-Definition Audio for Crystal-Clear Sound

Equipped with high-definition audio jacks, including Line in, Front Speaker, and Microphone ports, the ASRock H810M-H provides an immersive audio experience. Enjoy clear and crisp sound for gaming, music, and video conferencing, enhancing your overall computing experience.

FEATURES:

• Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
• 6+1+1+1+1 Power Phase
• 2 x DDR5 DIMMs
• Supports Dual Channel, up to 6400
• 1 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi
• Graphics Output Options: 1 HDMI
• Realtek ALC897 7.1 CH HD Audio Codec
• 4 SATA3
• 1 Hyper M.2 (PCIe Gen4x4)
• 4 USB 3.2 Gen1 (2 Rear, 2 Front)
• 6 USB 2.0 (4 Rear, 2 Front)
• Realtek Gigabit LAN

SPECIFICATIONS:

• CPU
  • Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
  • Supports Intel® Hybrid Technology
  • Supports Intel® Turbo Boost Max 3.0 Technology
  • Supports Intel® Thermal Velocity Boost (TVB)
  • Supports Intel® Adaptive Boost Technology (ABT)
  • Integrated NPU for dedicated AI acceleration
• Chipset:
  • Intel® H810
• Memory
  • Dual Channel DDR5 Memory Technology
  • 2 x DDR5 DIMM Slots
  • Supports DDR5 non-ECC, un-buffered memory up to 6400*
  • Supports Clocked Unbuffered DIMM (CUDIMM)
  • Max. capacity of system memory: 128GB*
  • Supports Intel® Extreme Memory Profile (XMP) 3.0x*
  • * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS.
  • For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
• BIOS
  • 256Mb AMI UEFI Legal BIOS with GUI support
• Graphics
  • Intel® Xe LPG Graphics Architecture
  • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  • * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
• Audio
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• LAN
  • Gigabit LAN 10/100/1000 Mb/s
  • Realtek RTL8111H
• Expansion Slots
  • CPU:
  • 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
  • Chipset:
  • 1 x PCIe 4.0 x1 Slot (PCIE2)*
  • 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT PCIe Wi-Fi module
  • * Supports NVMe SSD as boot disks
• Storage
  • Chipset:
  • 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
  • 4 x SATA3 6.0 Gb/s Connectors
  • * Supports NVMe SSD as boot disks
• USB
  • Chipset:
  • 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
  • 6 x USB 2.0 (4 Rear, 2 Front)
  • * All USB ports support ESD Protection
• Connector
  • 1 x SPI TPM Header
  • 1 x Power LED and Speaker Header
  • 1 x RGB LED Header*
  • 2 x Addressable LED Headers**
  • 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***
  • 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)****
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector
  • 1 x Front Panel Audio Connector
  • 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
  • * Supports in total up to 12V/3A, 36W LED Strip
  • ** Support in total up to 5V/3A, 15W LED Strip
  • *** CPU_FAN1 supports the fan power up to 1A (12W).
  • **** CHA_FAN1 supports the fan power up to 3A (36W).
  • CHA_FAN1 can auto detect if 3-pin or 4-pin fan is in use.
• Rear Panel I/O
  • 2 x Antenna Mounting Points
  • 1 x PS/2 Mouse/Keyboard Port
  • 1 x HDMI Port
  • 2 x USB 3.2 Gen1 Ports
  • 4 x USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI
  • Software
  • ASRock Motherboard Utility (A-Tuning)
  • ASRock Polychrome SYNC*
  • UEFI
  • ASRock EZ Mode
  • ASRock Full HD UEFI
  • ASRock My Favorites in UEFI
  • ASRock Auto Driver Installer
  • ASRock Instant Flash
  • *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Form Factor
  • Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
• OS
  • Microsoft Windows® 11 64-bit
• Certifications
  • FCC, CE
  • ErP/EuP ready (ErP/EuP ready power supply is required)

WHAT'S IN THE BOX:

• ASRock H810M-H Intel LGA1851 Micro ATX Motherboard - Black x1

Why ASRock?

ASRock motherboards are synonymous with reliability and innovation, and are engineered to meet the demands of today’s computing tasks. With a strong presence in South Africa, ASRock provides cutting-edge technology backed by local support, ensuring that you receive the best possible computing experience.

The ASRock Intel Arc B570 Challenger OC 10GB GDDR6 Graphics Card is a perfect blend of style, performance, and efficiency, designed to meet the needs of gamers and creators alike. Featuring Intel® Arc™ B570 Graphics and a Phantom Gaming-inspired aesthetic, it is both visually striking and robust in construction. The stylish metal backplate not only enhances durability but also includes a thermal pad to improve heat dissipation, ensuring stable performance during extended usage.

Engineered for optimal cooling, the B570 Challenger features ASRock’s advanced dual-fan design with custom Striped Axial Fans. The innovative stripe structure on the fan blades, combined with a polished surface underneath, increases airflow for efficient heat dissipation. The fans spin up when the card is under heavy load to maintain ideal operating temperatures and stop during lighter tasks, delivering a balance of performance and silence. This intelligent cooling system ensures reliable performance during demanding gaming and creative sessions.

ASRock’s commitment to thermal efficiency extends to its precise engineering. The heat pipes are carefully consolidated to maximize contact with the GPU baseplate, while the stacked fins are expertly isolated to improve heat dissipation. The card is assembled with precise screw torque to optimize cooler mounting pressure, further enhancing thermal performance without risking damage to the GPU die. To add a touch of customization, the graphics card includes a multi-colour LED indicator, allowing users to personalize their setup.

Powered by Intel® Xe2-HPG Architecture, the ASRock Intel Arc B570 Challenger OC features 10GB of 160-bit GDDR6 memory and a base clock of up to 2600MHz. It supports advanced technologies like Intel® XeSS 2 for AI-driven upscaling and DirectX 12 Ultimate for next-level gaming visuals. With support for resolutions up to 7680 x 4320 and multiple connectivity options, including HDMI™ 2.1a and DisplayPort™ 2.1, this card is ideal for high-performance gaming and multimedia applications. Its efficient cooling, stylish design, and reliable performance make it a standout choice for enthusiasts.

FEATURES:

• Base Clock: Up to 2600MHz / 19Gbps
• 10GB 160-bit GDDR6
• Intel® Arc™ B570 Graphics
• Intel^® X^e2-HPG Architecture
• Intel^® X^e Super Sampling 2 (Intel^® X^eSS 2)
• Intel^® X^e Matrix Extensions (Intel^® XMX)
• PCI® Express 4.0 Support
• Dual-Fan Design
• Striped Axial Fan
• Ultra-fit Heat pipe
• Stylish Metal Backplate

SPECIFICATIONS:

• Graphics Engine: Intel^® Arc B570
• Bus Standard: PCI® Express 4.0 x 8
• DirectX: 12 Ultimate
• OpenGL: 4.6
• Memory: 10GB GDDR6
• Engine Clock: 2600 MHz
• Intel® XMX Engines: 144
• Memory Clock: 19Gbps
• Memory Interface: 160-bit
• Resolution: Digital Max Resolution: 7680 x 4320
• Interface: 1 x HDMI™ 2.1a, 1 x DisplayPort™ 2.1 up to UHBR 13.5, 2 x DisplayPort™ 2.1 up to UHBR 10
• HDCP: Yes
• Multi-view: 4
• Recommended PSU: 600W
• Power Connector: 1 x 8-pin
• Product Dimensions: 24.9 x 13.2 x 4.1 cm
• Product Weight: 720g

WHAT’S IN THE BOX:

• ASRock Intel Arc B570 Challenger OC 10GB GDDR6 160-BIT Graphics Card – Black x1
• Quick Install Guide x1

The ASRock Intel Arc B580 Challenger OC 12GB GDDR6 Graphics Card delivers a perfect balance of performance, cooling, and aesthetics. Designed for gamers and creators, this card combines powerful Intel® Arc™ B580 Graphics with a sleek design that features a stylish metal backplate. The Phantom Gaming look not only adds visual appeal but also reinforces the card’s construction. Additionally, a thermal pad on the backplate enhances heat dissipation, contributing to its overall efficiency during demanding tasks.

Optimized cooling is a key highlight of the B580 Challenger. The dual-fan design features ASRock’s custom Striped Axial Fan, which improves airflow using a stripe structure on the fan blades and a polished surface on the bottom side. These fans spin up under heavy loads to maintain optimal cooling and stop when temperatures drop for silent operation. The card’s heat pipes are designed to maximize contact with the GPU baseplate and stacked fins, efficiently transferring heat away from critical components.

ASRock has also integrated thoughtful engineering to improve thermal performance. The use of precise screw torque during assembly ensures optimal cooler mounting pressure, enhancing heat dissipation while protecting the GPU die. The innovative gap isolation between the heat pipes and stacked fins further boosts cooling efficiency, allowing the card to handle intense workloads with ease. A multi-colour LED indicator adds a touch of personalization, making the graphics card visually appealing in any setup.

Packed with cutting-edge features, the ASRock Intel Arc B580 Challenger OC boasts 12GB of 192-bit GDDR6 memory and an engine clock of up to 2740MHz. Built on Intel® Xe2-HPG Architecture, it supports advanced technologies like Intel® XeSS 2 for AI-driven upscaling and DirectX 12 Ultimate for stunning visuals. With support for resolutions up to 7680 x 4320 and multiple connectivity options, including HDMI™ 2.1a and DisplayPort™ 2.1, this card delivers exceptional performance for gaming and creative applications. Its robust build, efficient cooling, and sleek design make it a reliable choice for high-performance systems.

FEATURES:

• Base Clock: Up to 2740MHz / 19Gbps
• 12GB 192-bit GDDR6
• Intel® Arc™ B580 Graphics
• Intel^® X^e2-HPG Architecture
• Intel^® X^e Super Sampling 2 (Intel^® X^eSS 2)
• Intel^® X^e Matrix eXtentions (Intel^® XMX)
• PCI® Express 4.0 support
• Dual-Fan Design
• Striped Axial Fan
• Stylish Metal Backplate

SPECIFICATIONS:

• Graphics Engine: Intel^® Arc B580
• Bus Standard: PCI® Express 4.0 x 8
• DirectX: 12 Ultimate
• OpenGL: 4.6
• Memory: 12GB GDDR6
• Engine Clock: 2740 MHz
• Intel® XMX Engines: 160
• Compute Units: 20
• Memory Clock: 19Gbps
• Memory Interface: 192-bit
• Resolution: Digital Max Resolution: 7680 x 4320
• Interface: 1 x HDMI™ 2.1a, 1 x DisplayPort™ 2.1 up to UHBR 13.5, 2 x DisplayPort™ 2.1 up to UHBR 10
• HDCP: Yes
• Multi-view: 4
• Recommended PSU: 650W
• Power Connector: 1 x 8-pin
• Colour: Black
• Product Dimensions: 24.9 x 13.2 x 4.1 cm
• Product Weight: 720g

WHAT’S IN THE BOX:

• ASRock Intel Arc B580 Challenger OC 12GB GDDR6 192-BIT Graphics Card – Black x1
• Quick Install Guide x1

The ASRock Intel Arc B580 Steel Legend OC 12GB GDDR6 Graphics Card is a high-performance powerhouse designed to meet the needs of gamers and creators alike. Featuring integrated ARGB LEDs, you can customize your setup with unique, vibrant lighting effects, which can be switched on or off based on your preference. With Polychrome SYNC compatibility, it seamlessly synchronizes with ASRock motherboards for a unified lighting experience. For added flexibility, the ARGB header allows you to connect additional ARGB strips or devices to enhance your rig’s aesthetics.

Designed with advanced cooling technology, the triple-fan system ensures optimal temperature control even during intensive tasks. The Striped Ring Fan design enhances lateral airflow, while the V-shaped cutting fins and air vents direct airflow efficiently for superior cooling. The fans operate intelligently, spinning under high loads for effective cooling and stopping during low temperatures to provide silent operation, ensuring a perfect balance of performance and noise control.

Engineered for durability, this graphics card features a premium copper base heatsink and ultra-fit heatpipes that maximize contact with the GPU baseplate for efficient thermal transfer. The stacked fin design isolates gaps between pipes, further enhancing heat dissipation. The stylish metal backplate not only reinforces the card to prevent PCB bending but also adds a sleek, white-themed aesthetic that complements modern builds.

Packed with powerful specifications, the ASRock Intel Arc B580 features 12GB of 192-bit GDDR6 memory, a base clock of up to 2800 MHz, and cutting-edge Intel® Xe2-HPG Architecture. It supports Intel® XeSS 2 for AI-driven upscaling and DirectX 12 Ultimate for advanced gaming visuals. With multi-display capabilities supporting resolutions up to 7680 x 4320 and an array of connectivity options, including HDMI™ 2.1a and DisplayPort™ 2.1, this graphics card is ready to deliver immersive visuals and exceptional performance for gaming and creative applications.

FEATURES:

• Base Clock: Up to 2800MHz / 19Gbps
• 12GB 192-bit GDDR6
• Intel® Arc™ B580 Graphics
• Intel^® X^e2-HPG Architecture
• Intel^® X^e Super Sampling 2 (Intel^® X^eSS 2)
• Intel^® X^e Matrix eXtentions (Intel^® XMX)
• PCI® Express 4.0 Support
• Polychrome SYNC
• Triple-Fan Design
• Striped Ring Fan
• Ultra-fit Heatpipe with air deflecting fin
• Stylish Metal Backplate

SPECIFICATIONS:

• Graphics Engine: Intel^® Arc B580
• Bus Standard: PCI® Express 4.0 x 8
• DirectX: 12 Ultimate
• OpenGL: 4.6
• Memory: 12GB GDDR6
• Engine Clock: 2800 MHz
• Intel® XMX Engines: 160
• Memory Clock: 19Gbps
• Memory Interface: 192-bit
• Resolution: Digital Max Resolution: 7680 x 4320
• Interface: 1 x HDMI™ 2.1a, 1 x DisplayPort™ 2.1 up to UHBR 13.5, 2 x DisplayPort™ 2.1 up to UHBR 10
• HDCP: Yes
• Multi-view: 4
• Recommended PSU: 650W
• Power Connector: 2 x 8-pin
• Colour: White
• Product Dimensions: 29.8 x 13.1 x 5.1 cm
• Product Weight: 959g

WHAT’S IN THE BOX:

• ASRock Intel Arc B580 Steel Legend OC 12GB GDDR6 192-BIT Graphics Card – White x1
• Quick Install Guide x1

The ASRock Radeon™ RX 9060 XT Challenger 16GB OC is more than a graphics card—it’s your new performance anchor. Built on AMD’s latest RDNA™ 4 architecture and fine-tuned for uncompromising 1440p gaming, this GPU pairs raw silicon muscle with refined efficiency. Whether you're pushing frame rates in ray-traced blockbusters, accelerating AI-enhanced workflows, or streaming crisp, artefact-free footage, the RX 9060 XT delivers every frame with clarity and composure.

Under the hood, 2,048 Stream Processors and 32 Compute Units—each equipped with 3rd Gen Ray Accelerators and 2nd Gen AI Accelerators—form the computational backbone of the card. Bolstered by a Boost Clock of up to 3290MHz and a blazing-fast 16GB of GDDR6 memory running at 20Gbps, the RX 9060 XT is primed for high-intensity scenarios and multitasking madness. It supports DirectX® 12 Ultimate, OpenGL 4.6, and AMD’s FidelityFX™ Super Resolution 4, letting you game smarter, not harder—with enhanced detail, smoother performance, and jaw-dropping visuals.

Thermal control is where the Challenger earns its name. This model integrates a sophisticated dual-fan cooling system, featuring Striped Axial Fans that channel more air, a high-density fin stack with ultra-fit heatpipes, and Nano Thermal Paste that bridges every microscopic gap for optimal heat transfer. And when the system is idle? The 0dB Silent Cooling mode stops the fans entirely, keeping your setup both cool and quiet.

Structurally, the Challenger is built with finesse. A full metal backplate adds rigidity and acts as a passive heatsink, while subtle LED lighting provides ambient flair without overstatement. Prefer a darker aesthetic? Flip the onboard LED switch and keep it stealthy. With a matte black PCB, high-density glass fabric layering, and a Dr.MOS power stage delivering up to 50A per phase, this card balances engineering prowess with visual sophistication.

Optimised for AMD Ryzen™ 9000 Series processors and AM5 platforms, the RX 9060 XT takes full advantage of Smart Access Memory™ to maximise CPU-GPU bandwidth. Meanwhile, AMD’s Adrenalin Edition software puts one-click performance tuning and real-time AI-powered enhancements at your fingertips. Whether you’re a competitive gamer, creative professional, or performance enthusiast, this GPU is ready to raise the bar.

FEATURES

• Powered by AMD RDNA™ 4 architecture with DirectX® 12 Ultimate support
• Game Clock at 2700MHz, Boost Clock up to 3290MHz
• 2,048 Stream Processors and 32 Compute Units with 3rd Gen Ray Accelerators
• 16GB GDDR6 memory with 128-bit interface at 20Gbps
• Dual fan cooling with ultra-fit heatpipes and 0dB Silent Cooling mode
• Metal backplate with RGB LED indicator and manual LED On/Off switch
• PCIe 5.0 x16 interface for ultra-fast throughput
• AMD FidelityFX™ Super Resolution 4 and Smart Access Memory™ support
• Enhanced Media Engine for high-quality streaming and encoding
• Seamless pairing with AMD Ryzen™ 9000 Series processors and AM5 motherboards

SPECIFICATIONS

GPU & Architecture

• GPU Model: AMD Radeon™ RX 9060 XT
• Architecture: AMD RDNA™ 4
• Compute Units: 32 (3rd Gen Ray Tracing, 2nd Gen AI Accelerators)
• Stream Processors: 2,048
• API Support: DirectX® 12 Ultimate, OpenGL 4.6
• Interface: PCIe 5.0 x16
• Max Digital Resolution: 7680 x 4320 (8K)

Clock Speeds & Memory

• Game Clock: 2700MHz
• Boost Clock: Up to 3290MHz
• Memory Type: 16GB GDDR6
• Memory Interface: 128-bit
• Memory Clock: 20Gbps

Display Outputs

• Ports: 1 x HDMI™ 2.1b, 2 x DisplayPort™ 2.1a
• Multi-View Support: Up to 3 displays
• HDCP Support: Yes

Cooling & Thermals

• Cooling System: Dual Fan with Striped Axial Design
• Features:
  • 0dB Silent Cooling
  • Ultra-fit Heatpipes
  • High-Density Metal Welding
  • Nano Thermal Paste
  • Premium Thermal Pads
  • Precise Screw Torque Mounting

Design & Build

• Backplate: Metal with RGB Indicator
• RGB Control: Manual LED On/Off switch
• Dimensions: 24.9 x 13.2 x 4.1 cm
• Weight: 645g

Power Requirements

• Connector: 1 x 8-pin
• Recommended PSU: 550W
• Power Design:
  • Dr.MOS Power Stage (50A)
  • Premium 90A Power Choke
  • 2oz Copper PCB
  • High-Density Glass Fabric PCB

Software & Compatibility

• Software: AMD Adrenalin Edition
  • AI-Driven Optimisation
  • AMD HYPR-RX2 One-Click Tuning
• Technologies:
  • FidelityFX™ Super Resolution 4
  • Smart Access Memory™
  • Radiance Display™ Engine
• Optimised For: 1440p Gaming with Ray Tracing
• Platform Compatibility: AMD Ryzen™ 9000 Series CPUs, AM5 Motherboards

WHAT'S IN THE BOX

• ASRock Radeon™ RX 9060 XT Challenger 16GB OC Graphics Card ×1
• Installation Guide ×1

Experience unprecedented performance, visuals, and efficiency for gaming and streaming in 1080p with the ASRock AMD Radeon™ RX 7600 Challenger Graphics Card, powered by RDNA™ 3 architecture. Immerse yourself in breathtaking visuals with the pinpoint colour accuracy of AMD Radiance Display™ Engine and boost frame rates with AMD FidelityFX™ Super Resolution and Radeon™ Super Resolution upscaling technologies. Combine AMD Radeon™ RX 7000 Series graphics card with a compatible AMD Ryzen™ processor to activate AMD smart technologies to unlock even more performance.

AMD Radeon™ RX 7600 graphics cards set a new level of performance for gamers and streamers alike. The RX 7600 features unified AMD RDNA™ 3 compute units, and blazing fast clock speeds, to enable advanced high refresh rate gaming performance at 1080p. Discover new levels of fidelity and ultra-fast gameplay with High-Performance Rendering, a combination of compute-based AMD FideltyFX™ features and upscaling technologies, to deliver world-class visuals with remarkable performance.

The ASRock AMD Radeon RX 7600 allows you to further immerse yourself, thanks to its AMD Radiance Display™ Engine and DisplayPort™ 2.14 technology to experience up to 68 billion colours for video playback at up to 8K. Now you can also deliver an enhanced visual quality to your audience when streaming and recording using the improved encoders, together with integrated AI and content-adaptive machine learning technology to enable better-looking and crisper visuals when streaming.

Its dual fan design provides strong cooling performance allowing your gaming rig to stay cool under pressure. ASRock’s custom striped axial fan delivers enhanced airflow to optimize cooling from the stripe structure on each fan blade and the polishing surface on the bottom side. It’s optimized for delivering an excellent gaming experience thanks to its stylish and streamlined design. To help further with cooling and stability it also comes with premium thermal pads attached to a solid back plate to avoid bending.

FEATURES:

• Boost Clock: Up to 2695MHz / 18Gbps
• Game Clock: Up to 2280MHz / 18Gbps
• Base Clock: 1770MHz / 18Gbps
• 8GB GDDR6
• AMD RDNA™ 3 Architecture
• PCI® Express 4.0 Support
• Dual-Fan Design
• Striped Axial Fan
• Ultra-fit Heatpipe
• Stylish Metal Backplate

SPECIFICATIONS:

• Graphics Engine: AMD Radeon™ RX 7600
• Bus Standard: PCI® Express 4.0
• DirectX: 12 Ultimate
• OpenGL: 4.6
• Memory: 8GB GDDR6
• Engine Clock:
  • Boost Clock: Up to 2695MHz
  • Game Clock: Up to 2280MHz
  • Base Clock: 1770MHz
• Stream Processors: 2048
• Memory Clock: 18Gbps
• Memory Interface: 128-bit
• Resolution: Digital Max Resolution: 7680 x 4320
• Interface: 1 x HDMI™ 2.1 VRR, 3 x DisplayPort™ 1.4 with DSC
• HDCP: Yes
• Multi-view: 4
• Recommended PSU: 550W
• Power Connector: 1 x 8-pin
• Product Dimensions: 26.9 x 13.2 x 4.1 cm
• Product Weight: 640g

WHAT'S IN THE BOX:

• AMD Radeon RX 7600 Challenger 8GB OC Graphics Card x1
• Quick Installation Guide x1

Build a powerful gaming rig with seamless connectivity and ample memory for intensive tasks | Experience robust performance with the ATX form factor and integrated WiFi.

Quick Specs

• Unlock peak gaming potential with the high-performance AM5 socket.
• Experience lightning-fast data transfer and display output with 2x USB4 Type-C ports.
• Support for up to 256GB of system memory ensures smooth multitasking for demanding applications.
• Enjoy crystal-clear audio for immersive gaming and communication with integrated HD audio jacks.
• A spacious ATX form factor provides ample room for expansion and efficient cooling.

For the serious South African gamer who demands stability and performance

The ASRock X870 Pro-A WiFi AM5 motherboard is not merely a component; it is the bedrock of your high-performance gaming system. Engineered for enthusiasts who understand that a stable foundation is paramount, this ATX motherboard provides the essential features to build a formidable rig. It is designed for those who seek not just to play games, but to dominate them, demanding a system that can handle intense workloads without faltering. This AM5 gaming motherboard is the critical link that connects your ambition to the digital arena, ensuring that your gaming experience is as fluid and responsive as your reflexes.

Unleash unparalleled connectivity and memory capacity

At the heart of this build lies the robust AM5 socket, ready to house the latest generation of processors that power your gaming and productivity. The ASRock X870 Pro-A WiFi transcends basic connectivity, offering 2x USB4 Type-C ports that deliver exceptional bandwidth for high-speed data transfer and advanced display output options. This means faster loading times, smoother streaming, and the ability to connect cutting-edge peripherals without compromise. Furthermore, with support for up to 256GB of system memory, this pc gaming motherboard equips you for the most memory-intensive games and demanding multitasking scenarios, ensuring that your system remains agile even under extreme pressure.

Experience immersive audio and a spacious build environment

The commitment to an immersive gaming experience extends to its audio capabilities. Equipped with HD Audio Jacks, including Line In, Front Speaker, and Microphone support, this AM5 motherboard ensures that your in-game audio is crisp and your communication with teammates is clear. The spacious ATX form factor, measuring 12.0-in x 9.6-in (30.5 cm x 24.4 cm), provides an ideal canvas for building your dream machine. This generous space allows for easier component installation, improved airflow for superior cooling, and ample room for future upgrades, giving you the flexibility to evolve your gaming setup over time.

Engineered for the discerning South African PC builder

This ASRock X870 Pro-A WiFi is built for the builder who values precision, reliability, and forward-thinking design. The combination of the AM5 platform, advanced USB4 connectivity, substantial memory support, and a well-considered form factor makes this AM5 gaming motherboard an intelligent choice for anyone looking to construct a powerful, future-proof gaming PC. It delivers the essential building blocks for a high-performance system, ensuring that your investment is in a component that will serve you well through countless gaming sessions and demanding computational tasks.

FEATURES:

• Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
• 16+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC
• 4 x DDR5 DIMMs
• Supports Dual Channel, up to 8000+ (OC)
• 1 PCIe 5.0 x16, 3 PCIe 4.0 x16
• Graphics Output Options: 1 HDMI, 2 USB4 Type-C
• Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• 1 Blazing M.2 (PCIe Gen5x4)
• 1 Hyper M.2 (PCIe Gen4x4)
• 1 M.2 (PCIe Gen3x2 & SATA3)
• 4 SATA3
• 2 USB4 Type-C (Rear)
• 2 USB 3.2 Gen2 (Rear)
• 1 USB 3.2 Gen1 Type-C (Front)
• 5 USB 3.2 Gen1 (1 Rear, 4 Front)
• 8 USB 2.0 (4 Rear, 4 Front)
• Realtek 2.5GbE LAN
• 802.11be Wi-Fi 7 + Bluetooth
• Supports M.2 Bottom Heatsink

SPECIFICATIONS:

• CPU:
  • Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
• Chipset
  • AMD X870
• Memory
  • Dual Channel DDR5 Memory Technology
  • 4 x DDR5 DIMM Slots
  • Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)*
  • Max. capacity of system memory: 256GB
  • Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules*
  • *Please refer to Memory Support List on ASRock's website for more information.
• Graphics
  • Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
  • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  • 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz*
  • * Only the CPU's embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use AM5 Ryzen™ 9000, 8000 and 7000 processors with embedded graphics.
  • USB4 Type-C ports on the rear panel and PCIE3 slot share PCIe Gen4x4 bandwidth. Both run at PCIe Gen4x2 when PCIE3 slot is occupied. You can switch PCIE3 to PCIe Gen4x4 in the BIOS, but this will disable the USB4 Type-C ports. The USB4 host controller supports up to PCIe Gen4x4.
• Audio
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • Nahimic Audio
• LAN
  • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  • Dragon RTL8125BG
  • Supports Dragon 2.5G LAN Software
  • Smart Auto Adjust Bandwidth Control
  • Visual User Friendly UI
  • Visual Network Usage Statistics
  • Optimized Default Setting for Game, Browser, and Streaming Modes
  • User Customized Priority Control
• Wireless LAN
  • 802.11be 2x2 Wi-Fi 7 Module
  • Supports IEEE 802.11a/b/g/n/ac/ax/be
  • Supports 2.4GHz/5GHz/6GHz* frequency band
  • Supports 160MHz channel bandwidth with 6GHz* frequency band
  • 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
  • Supports Bluetooth 5.4
  • Supports MU-MIMO
• Slots
  • CPU:
  • 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
  • 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
  • Chipset:
  • 1 x PCIe 4.0 x16 Slot (PCIE2), supports x1 mode*
  • 1 x PCIe 4.0 x16 Slot (PCIE4), supports x1 mode*
  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
  • Supports AMD CrossFire™
• Storage
  • CPU:
  • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
  • Chipset:
  • 1 x M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes*
  • 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
  • 4 x SATA3 6.0 Gb/s Connectors
• RAID
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
  • * Requires additional M.2 NVMe expansion cards to support RAID 10
• USB
  • CPU:
  • 2 x USB4 Type-C (Rear)
  • 2 x USB 3.2 Gen2 Type-A (Rear)
  • Chipset:
  • 1 x USB 3.2 Gen1 Type-C (Front)
  • 5 x USB 3.2 Gen1 Type-A (1 Rear, 4 Front)
  • 8 x USB 2.0 (4 Rear, 4 Front)
• Connector
  • 1 x SPI TPM Header
  • 1 x Power LED and Speaker Header
  • 1 x RGB LED Header*
  • 3 x Addressable LED Headers**
  • 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
  • 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
  • 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
  • 1 x 24 pin ATX Power Connector
  • 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
  • 1 x Front Panel Audio Connector
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  • 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
  • 1 x Front Panel Type C USB 3.2 Gen1 Header
  • * Supports in total up to 12V/3A, 36W LED Strip
  • ** Support in total up to 5V/3A, 15W LED Strip
  • *** CPU_FAN1 supports the fan power up to 1A (12W).
  • CPU_FAN2, CHA_FAN1~3 and AIO_PUMP support the fan power up to 3A (36W).
  • CPU_FAN2, CHA_FAN1~3 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.
• Rear Panel I/O
  • 2 x Antenna Ports
  • 1 x HDMI Port
  • 2 x USB4 Type-C Ports (40 Gb/s)*
  • 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
  • 1 x USB 3.2 Gen1 Type-A Port
  • 4 x USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • 1 x BIOS Flashback Button
  • HD Audio Jacks: Line in / Front Speaker / Microphone
  • * Supports USB PD 3.0 up to 5V@3A (15W) charging
• Software and UEFI
  • Software
  • ASRock Motherboard Utility (A-Tuning)
  • ASRock Dragon 2.5G LAN Software
  • ASRock Polychrome SYNC*
  • UEFI
  • ASRock EZ Mode
  • ASRock Full HD UEFI
  • ASRock Auto Driver Installer
  • ASRock Instant Flash
  • *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Form Factor
  • ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
  • 8 Layer PCB
• OS
  • Microsoft® Windows® 10 64-bit / 11 64-bit
• Certifications
  • FCC, CE
  • ErP/EuP ready (ErP/EuP ready power supply is required)
  • CEC Tier II ready

WHAT'S IN THE BOX:

• ASRock X870 Pro-A WiFi AM5 ATX Gaming Motherboard - Black x1
• SATA Data Cables x2
• ASRock WiFi 2.4/5/6 GHz Antennas x2

Why ASRock?

ASRock has consistently delivered reliable and performance-driven motherboards, earning the trust of PC builders worldwide. With a focus on innovation and quality, this AM5 motherboard empowers South African gamers and professionals to create systems that exceed expectations. Choose ASRock for a stable, powerful, and feature-rich foundation for your next pc gaming motherboard build.

Harness the power of true adaptability and unmatched performance with the ASRock X870E Taichi Lite AM5 ATX Motherboard, where minimalist design meets maximum capability. Inspired by the philosophy of boundless potential, the Taichi Lite is engineered to be as fluid and adaptable as water—ready to evolve with the needs of high-performance gamers, creators, and professionals alike. Supporting AMD Ryzen™ 9000, 8000, and 7000 Series processors with the latest AMD X870E chipset, this motherboard provides top-tier specs including dual PCIe 5.0 x16 slots, DDR5 memory overclocking up to 8200+ MHz, and blazing-fast USB4 Type-C connectivity. Whether you're building a next-gen gaming powerhouse or a productivity-driven workstation, the Taichi Lite delivers unwavering stability and responsiveness.

This board is armed with four M.2 slots, including a Blazing M.2 PCIe Gen5 x4 capable of 128 Gb/s transfer speeds for next-gen NVMe SSDs, and six SATA3 ports for expansive storage options. ASRock’s exclusive 5Gb/s LAN with superior EMI resistance, Wi-Fi 7, and Bluetooth 5.4 ensure rock-solid networking whether you're streaming, gaming, or working from home. Cooling is handled with precision, thanks to smart fan speed control across multiple headers, enhanced by extra-large aluminum alloy M.2 heatsinks for consistent thermal performance. Integrated USB4 (40Gbps) and USB 3.2 Gen2x2 (20Gbps) ensure lightning-fast connectivity for external devices, while a rich rear I/O includes HDMI 2.1, multiple high-speed USB ports, and onboard BIOS Flashback and Clear CMOS buttons for easy DIY setup.

Sound and visuals are elevated with Nahimic Audio, Realtek ALC4082, and ESS SABRE9219 DAC, ensuring immersive 5.1 channel sound, 130dB SNR output, and up to 600-ohm headset support. The built-in Polychrome SYNC and SignalRGB integration offer custom RGB control with addressable headers to create a visually synchronized, reactive lighting setup across compatible components. Whether it's stunning aesthetics, efficient cooling, ultra-low latency networking, or lightning-fast storage you’re after, the ASRock X870E Taichi Lite delivers a versatile, future-ready platform built to evolve with your ambition.

FEATURES:

• AMD AM5 socket supports Ryzen 9000, 8000, and 7000 Series processors
• PCIe 5.0 x16 Steel Slot for next-gen GPU bandwidth and durability
• Blazing-fast Wi-Fi 7 and 5G LAN for ultra-low-latency connectivity
• Supports DDR5 memory overclocking up to 8200+ MHz for extreme performance
• Four M.2 slots, including one Hyper Gen5 x4 for lightning-fast NVMe storage
• Extra large aluminum alloy M.2 heatsink effectively improves heat dissipation for enhanced cooling
• Enhanced USB4 Type-C technology brings speed and versatility
• Nahimic Audio offers you the most engaging listening experience
• Polychrome SYNC and SignalRGB for vivid, addressable lighting control

SPECIFICATIONS:

• CPU & Chipset
  • Socket: AMD AM5
  • Supported CPUs: AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
  • Chipset: AMD X870E
• Memory
  • Dual Channel DDR5 Memory Technology
  • 4 x DDR5 DIMM Slots
  • Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)
  • Max. capacity of system memory: 256GB
  • Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
• Graphics Output
  • Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
  • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  • 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz
• Expansion Slots
• CPU:
  • 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes
• Chipset:
  • 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
  • Supports AMD CrossFire™
• Storage
• CPU:
  • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
• Chipset:
  • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
  • 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
  • 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
  • 6 x SATA3 6.0 Gb/s Connectors
• Networking
  • LAN: Realtek RTL8126
  • Wireless: Wi-Fi 7 Module (802.11be 2x2) with Bluetooth 5.4
  • Dual-band 2×2 support with 6GHz band
• USB Ports
• CPU:
  • 2 x USB4 Type-C (Rear)
  • 2 x USB 3.2 Gen2 Type-A (Rear)
• Chipset:
  • 1 x USB 3.2 Gen2x2 Type-C (Front)
  • 3 x USB 3.2 Gen2 Type-A (Rear)
  • 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front)
  • 6 x USB 2.0 (2 Rear, 4 Front)
• Audio
  • 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
  • WIMA Audio Capacitors (For Rear Outputs)
  • ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR)
  • Individual PCB Layers for R/L Audio Channel
  • Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets)
  • Nahimic Audio
• Connector
  • 3 x Thermistor Cable Headers
  • 1 x Power LED and Speaker Header
  • 1 x RGB LED Header
  • 3 x Addressable LED Headers
  • 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
  • 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
  • 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
  • 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
  • 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
  • 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
  • 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  • 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
  • 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
  • 1 x Dr. Debug with LED
  • 1 x Power Button with LED
  • 1 x Reset Button with LED
• RGB & Aesthetics
  • 1 x Power LED and Speaker Header
  • 1 x RGB LED Header
  • 3 x Addressable LED Headers
• DIY Features
  • BIOS Flashback Button
  • Auto Driver Installer (via LAN)
  • Flexible Integrated I/O Shield
• Rear I/O Ports
  • 2 x Antenna Ports
  • 1 x HDMI Port
  • 1 x Optical SPDIF Out Port
  • 2 x USB4 Type-C Ports (40 Gb/s)
  • 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.)
  • 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.)
  • 2 x USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • 1 x Clear CMOS Button
  • 1 x BIOS Flashback Button
  • 1 x Line Out Jack (Gold Audio Jack)
  • 1 x Microphone Input Jack (Gold Audio Jack)
• Software & UEFI
• Software:
  • ASRock Motherboard Utility (A-Tuning)
  • ASRock Polychrome SYNC
  • ASRock XFast LAN
• UEFI:
  • ASRock EZ Mode
  • ASRock Full HD UEFI
  • ASRock Auto Driver Installer
  • ASRock Instant Flash
• Form Factor
  • EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm
  • 8 Layer PCB
  • 2oz Copper PCB
• OS Compatibility: Microsoft Windows® 10 64-bit / 11 64-bit
• Certifications: FCC, CE | ErP/EuP ready (ErP/EuP ready power supply is required)

WHAT'S IN THE BOX:

• ASRock X870E Taichi Lite AM5 ATX Motherboard x1
• SATA Data Cables x4
• ASRock Wi-Fi 2.4/5/6 GHz Antenna x1
• ARGB Splitter Cable x1
• Thermistor Cables x3

Build your ultimate gaming rig with confidence; a robust foundation designed for peak performance and stunning ARGB aesthetics.

Quick Specs

• Expand your setup with 5 expansion slots, accommodating diverse component configurations.
• Ensure optimal cooling with rear radiator and fan support for a stable gaming environment.
• Accommodate high-performance components with generous CPU cooler and GPU clearance.
• Support extended power supplies for demanding builds, ensuring consistent power delivery.
• Enhance your rig's visual appeal with integrated ARGB lighting, synchronised with Aura Sync.

The foundation for victory: Your gaming battle station starts here

For the dedicated gamer in South Africa, the Asus A23 PLUS ARGB Micro-ATX Gaming Case is more than just a shell; it is the robust armour for your high-performance components. Designed for those who understand that a stable system is paramount to achieving victory, this gaming chassis provides the critical support and airflow necessary to keep your hardware performing at its peak, even during the most intense gaming sessions. It is built for the builder who demands both function and form, ensuring that your rig not only runs cool but also looks spectacular with its integrated ARGB lighting. This is the starting point for a truly formidable gaming PC, a standout micro ATX gaming case.

Engineered for performance and stability

The Asus A23 PLUS gaming PC case is meticulously engineered to house your powerful gaming hardware. With five expansion slots, you have the freedom to configure your system precisely to your needs, whether it's adding more storage, a dedicated sound card, or other essential peripherals. The ample clearance for a 165 mm CPU cooler ensures that even high-end processors can maintain optimal temperatures, preventing thermal throttling and ensuring consistent performance. Furthermore, with a maximum GPU length of 380 mm, you can confidently install the latest, most powerful graphics cards without concern for fitment issues. The generous 210 mm PSU length support means you are not limited in your power supply choices, allowing for robust, high-wattage units required by elite gaming rigs.

Visual artistry meets robust protection

Beyond its functional prowess, the Asus A23 PLUS gaming chassis is designed to be a statement piece. The integrated ARGB lighting, fully compatible with Asus Aura Sync, allows you to customize your rig's aesthetic with millions of colours and dynamic lighting effects. Synchronise your chassis lighting with your other Aura Sync-compatible components for a cohesive and immersive visual experience that truly reflects your personal style. This gaming PC case transforms your gaming setup from a collection of parts into a unified, visually stunning masterpiece, making it the envy of your gaming circle.

Built for the future of gaming

As the demands of PC gaming continue to evolve, the Asus A23 PLUS provides a future-proof platform. Its thoughtful design accommodates the latest hardware trends, from powerful GPUs to advanced cooling solutions. The inclusion of ARGB lighting ensures your build remains visually relevant and modern for years to come. This gaming chassis is an investment in your gaming future, offering the flexibility and expandability needed to upgrade and adapt as new technologies emerge. Choose the A23 PLUS and build a gaming PC that stands the test of time and performance.

A chassis that respects your investment

The Asus A23 PLUS micro ATX gaming case is constructed with quality materials, ensuring durability and longevity. Its weight of 8900g is a testament to the solid construction and premium materials used, providing a stable and secure housing for your valuable components. This gaming chassis is designed to protect your investment, offering a reliable and sturdy environment that complements the performance it enables. When building your next gaming PC, choose a chassis that matches the quality of your components; choose the Asus A23 PLUS.

FEATURES:

• Configure your ideal system with 5 versatile expansion slots, accommodating all your necessary components.
• Maintain peak performance with support for a 120 mm rear radiator and fan, ensuring effective heat dissipation.
• Install the latest graphics cards up to 380 mm in length, keeping pace with cutting-edge gaming technology.
• Power your most demanding builds with support for PSUs up to 210 mm, ensuring stable energy delivery.
• Personalise your gaming rig with vibrant ARGB lighting, synchronised with Asus Aura Sync for a cohesive look.
• Enjoy ample headroom for high-performance processors with up to 165 mm of CPU cooler clearance.
• Maintain a clean and organised build thanks to a 210 mm PSU length support, allowing for tidy cable management.

SPECIFICATIONS:

• Motherboard Support:
  • Micro-ATX
  • Mini-ITX
• Drive Bays:
  • 1 x 2.5" Bay
  • 2 x 2.5"/3.5" Combo Bay
• Expansion Slots: 5
• Front I/O Port:
  • 1 x Headphone
  • 1 x Microphone
  • 2 x USB 3.2 Gen1
  • 1 x USB 3.2 Gen2 Type-C
• Radiator Support (Front):
  • 120 mm
  • 140 mm
  • 240 mm
  • 280 mm
  • 360 mm
• Radiator Support (Top)
  • 120 mm
  • 140 mm
  • 240 mm
  • 280 mm
  • 360 mm
• Radiator Support (Rear): 120 mm
• Cooling Support (Front):
  • 3 x 120 mm
  • 2 x 140 mm
• Cooling Support (Top):
  • 3 x 120 mm
  • 2 x 140 mm
• Cooling Support (Rear): 1 x 120 mm
• Maximum CPU Cooler Height: 165 mm
• Maximum GPU Length: 380 mm
• Maximum PSU Length: 210 mm
• AURA Sync: ARGB
• Colour: Black
• Product Dimensions: 47.9 x 22 x 45 cm
• Product Weight: 8900g

WHAT'S IN THE BOX:

• Asus A23 PLUS ARGB Micro-ATX Gaming Chassis - Black x1

Why Asus?

Asus, a globally recognised leader in PC components, brings unparalleled expertise and innovation to your gaming setup. Trusted by enthusiasts worldwide, Asus products are synonymous with reliability, performance, and cutting-edge technology. Equip your rig with an Asus gaming chassis and experience the difference that quality engineering makes.

Build the setup you’ve always imagined with the ASUS A31 PLUS Mid Tower, a case designed to match your ambition. Whether you're upgrading or starting from scratch, this chassis gives you the performance headroom, visual impact, and build flexibility to bring your desktop gaming rig to life.

You’ll enjoy wide motherboard support, including ATX, Micro-ATX, Mini-ITX, and BTF compatibility, giving you the freedom to build with future-ready components. The ASUS A31 PLUS Mid Tower doesn’t just house your hardware – it showcases it. With 4 mm tempered glass panels on both the front and left sides, your RGB lighting, clean cable runs, and premium components are always on full display.

Out of the box, you get four pre-installed ARGB 120 mm fans – three mounted on the side and one at the rear – delivering strong airflow and stunning lighting without the need for additional upgrades. Cooling flexibility is extensive, with support for up to three 12 mm or two 140 mm fans on the top, and space for a 140 mm or 120 mm fan at the rear. Radiator support includes 360 mm, 280 mm, 240 mm, 140 mm, and 120 mm options on the top, plus a 120 mm radiator at the rear.

Internally, there’s space to support high-performance components, including graphics cards up to 380 mm in length, CPU air coolers up to 165 mm in height, and power supplies up to 200 mm long. Two combo drive bays accommodate either 2.5" SSDs or 3.5" HDDs, giving you storage flexibility without sacrificing space. Seven expansion slots ensure full upgrade capability, whether you're adding capture cards, GPUs or high-speed networking.

The front I/O is built for speed and convenience, featuring one USB 3.2 Gen 2x2 Type-C port, two USB 3.2 Gen1 ports, and a 3.5 mm combined headphone/microphone jack. With 34 mm of cable management space and removable dust filters at the top and bottom, you’ll find it easy to keep things clean and efficient over the long run.

Measuring 23.8 x 51.1 x 43.5 cm and weighing 9100 g, the ASUS A31 PLUS Mid Tower strikes the perfect balance between size, durability and airflow — giving you a solid foundation to build a high-performance gaming PC you can be proud of.

FEATURES:

• Compatible with ATX, Micro-ATX, Mini-ITX, and BTF motherboards
• Dual 4 mm tempered glass panels on the front and left side
• Includes 4 pre-installed ARGB 120 mm fans for vibrant cooling
• Top panel supports up to 360 mm radiators for advanced thermal performance
• Supports high-performance GPUs up to 380 mm in length
• Spacious interior with 165 mm CPU cooler clearance and 200 mm PSU support
• Front I/O includes USB 3.2 Gen 2x2 Type-C and dual USB 3.2 Gen1 ports
• 7 expansion slots for multi-GPU and add-in card configurations
• Removable dust filters on top and bottom for easy cleaning
• 34 mm cable management clearance for neat, efficient builds
• Two combo drive bays for flexible 2.5"/3.5" storage options
• Sleek ASUS A31 PLUS Mid Tower design balances airflow, space, and aesthetics

SPECIFICATIONS:

• Case Size: Mid Tower
• Motherboard Support:
  • BTF motherboard compatible
  • Mini-ITX
  • Micro-ATX
  • ATX
• Drive Bays: 2 x 2.5"/3.5" Combo Bay
• Expansion Slots: 7
• Front I/O Port:
  • 1 x USB 3.2 Gen 2x2 Type C
  • 2 x USB 3.2 Gen1
  • 1 x headphone / Microphone
• Tempered Glass:
  • Left Side
  • Front Side
• Radiator Support (Top):
  • 360 mm
  • 280 mm
  • 240 mm
  • 140 mm
  • 120 mm
• Radiator Support (Rear): 120 mm
• Cooling Support (Top):
  • 2 x 140 mm
  • 3 x 120 mm
• Cooling Support (Rear):
  • 1 x 140 mm
  • 1 x 120 mm
• Pre-installed Fans (Rear)
  • ARGB
  • 1 x 120 mm
• Pre-Installed Fan (Side)
  • ARGB
  • 3 x 120 mm
• Maximum CPU Cooler Height: 165 mm
• Maximum GPU Length: 380 mm
• Maximum PSU Length: 200 mm
• Removable Dust Filters:
  • Bottom
  • Top
• Maximum Cable Management Space: 34 mm
• Dimensions: 23.8 x 51.1 x 43.5 cm
• Weight: 9100 g
• BTF motherboard compatible: Yes

WHAT'S IN THE BOX:

• Asus A31 PLUS Mid Tower ATX Chassis - Black x1

Build the setup you’ve always imagined with the ASUS A31 PLUS Mid Tower, a case designed to match your ambition. Whether you're upgrading or starting from scratch, this chassis gives you the performance headroom, visual impact, and build flexibility to bring your desktop gaming rig to life.

You’ll enjoy wide motherboard support, including ATX, Micro-ATX, Mini-ITX, and BTF compatibility, giving you the freedom to build with future-ready components. The ASUS A31 PLUS Mid Tower doesn’t just house your hardware – it showcases it. With 4 mm tempered glass panels on both the front and left sides, your RGB lighting, clean cable runs, and premium components are always on full display.

Out of the box, you get four pre-installed ARGB 120 mm fans – three mounted on the side and one at the rear – delivering strong airflow and stunning lighting without the need for additional upgrades. Cooling flexibility is extensive, with support for up to three 12 mm or two 140 mm fans on the top, and space for a 140 mm or 120 mm fan at the rear. Radiator support includes 360 mm, 280 mm, 240 mm, 140 mm, and 120 mm options on the top, plus a 120 mm radiator at the rear.

Internally, there’s space to support high-performance components, including graphics cards up to 380 mm in length, CPU air coolers up to 165 mm in height, and power supplies up to 200 mm long. Two combo drive bays accommodate either 2.5" SSDs or 3.5" HDDs, giving you storage flexibility without sacrificing space. Seven expansion slots ensure full upgrade capability, whether you're adding capture cards, GPUs or high-speed networking.

The front I/O is built for speed and convenience, featuring one USB 3.2 Gen 2x2 Type-C port, two USB 3.2 Gen1 ports, and a 3.5 mm combined headphone/microphone jack. With 34 mm of cable management space and removable dust filters at the top and bottom, you’ll find it easy to keep things clean and efficient over the long run.

Measuring 23.8 x 51.1 x 43.5 cm and weighing 9100 g, the ASUS A31 PLUS Mid Tower strikes the perfect balance between size, durability and airflow — giving you a solid foundation to build a high-performance gaming PC you can be proud of.

FEATURES:

• Compatible with ATX, Micro-ATX, Mini-ITX, and BTF motherboards
• Dual 4 mm tempered glass panels on the front and left side
• Includes 4 pre-installed ARGB 120 mm fans for vibrant cooling
• Top panel supports up to 360 mm radiators for advanced thermal performance
• Supports high-performance GPUs up to 380 mm in length
• Spacious interior with 165 mm CPU cooler clearance and 200 mm PSU support
• Front I/O includes USB 3.2 Gen 2x2 Type-C and dual USB 3.2 Gen1 ports
• 7 expansion slots for multi-GPU and add-in card configurations
• Removable dust filters on top and bottom for easy cleaning
• 34 mm cable management clearance for neat, efficient builds
• Two combo drive bays for flexible 2.5"/3.5" storage options
• Sleek ASUS A31 PLUS Mid Tower design balances airflow, space, and aesthetics

SPECIFICATIONS:

• Case Size: Mid Tower
• Motherboard Support:
  • BTF motherboard compatible
  • Mini-ITX
  • Micro-ATX
  • ATX
• Drive Bays: 2 x 2.5"/3.5" Combo Bay
• Expansion Slots: 7
• Front I/O Port:
  • 1 x USB 3.2 Gen 2x2 Type C
  • 2 x USB 3.2 Gen1
  • 1 x headphone / Microphone
• Tempered Glass:
  • Left Side
  • Front Side
• Radiator Support (Top):
  • 360 mm
  • 280 mm
  • 240 mm
  • 140 mm
  • 120 mm
• Radiator Support (Rear): 120 mm
• Cooling Support (Top):
  • 2 x 140 mm
  • 3 x 120 mm
• Cooling Support (Rear):
  • 1 x 140 mm
  • 1 x 120 mm
• Pre-installed Fans (Rear)
  • ARGB
  • 1 x 120 mm
• Pre-Installed Fan (Side)
  • ARGB
  • 3 x 120 mm
• Maximum CPU Cooler Height: 165 mm
• Maximum GPU Length: 380 mm
• Maximum PSU Length: 200 mm
• Removable Dust Filters:
  • Bottom
  • Top
• Maximum Cable Management Space: 34 mm
• Dimensions: 23.8 x 51.1 x 43.5 cm
• Weight: 9100 g
• BTF motherboard compatible: Yes

WHAT'S IN THE BOX:

• Asus A31 PLUS Mid Tower ATX Chassis - White x1

Build a clean, high-performance gaming rig with dual-chamber cooling and panoramic views; keep your components cool and showcased.

Quick Specs

• Experience superior thermal performance with a dual-chamber design for independent cooling.
• Showcase your build through panoramic tempered glass on the front and side panels.
• Accommodate powerful components with support for large radiators, GPUs up to 420mm, and CPU coolers up to 165mm.
• Enhance aesthetics and airflow with four pre-installed ARGB fans.
• Benefit from convenient, high-speed connectivity with a front-panel USB Type-C® port.

Unleash your gaming potential with the Asus A32 PLUS ARGB ATX Gaming Chassis

This gaming pc case is engineered for the dedicated South African gamer who demands both exceptional performance and a visually stunning presentation. It’s built for those who understand that efficient cooling is not just about preventing overheating, but about unlocking the full performance potential of their high-end components. The dual-chamber design is a testament to thoughtful engineering, creating an optimised environment for every part of your system. If you seek a foundation that combines aesthetic appeal with potent functionality, the A32 PLUS in sleek black is your definitive choice for an ATX PC case.

Masterful thermal management for peak performance

At the core of the A32 PLUS is its innovative dual-chamber design. This separation creates dedicated cooling zones, ensuring that your CPU and graphics cards operate independently under optimal thermal conditions. This means your components can perform at their highest clock speeds without thermal throttling, providing a smoother, more responsive gaming experience. The clear distinction between the main chamber and the PSU/cable management area also promotes better airflow throughout the entire system, reducing overall temperatures and extending the lifespan of your hardware. This asus gaming chassis is designed for superior airflow.

A canvas for your custom build

The A32 PLUS transcends the typical gaming case by offering a panoramic view of your meticulously assembled components. With tempered glass panels gracing both the front and side, your build is presented as a work of art. This design not only allows for unobstructed admiration of your hardware, including the vibrant ARGB lighting from the pre-installed fans, but also enhances the aesthetic appeal of your gaming setup. It’s an invitation to build with pride and display your rig’s internal beauty.

Expandability without compromise

Future-proofing your rig is paramount, and the A32 PLUS delivers in spades. It boasts broad compatibility, readily accepting large radiators up to 360mm for advanced liquid cooling solutions. Furthermore, it accommodates today's longest and most powerful graphics cards, with support for lengths up to 420mm, and substantial CPU air coolers up to 165mm in height. With seven expansion slots, you have the freedom to add all the storage and peripherals your gaming demands, ensuring your system can grow with your ambitions. This ATX PC case is built for expansion.

Integrated cooling and connectivity

To ensure your system is performing at its best right out of the box, the A32 PLUS comes equipped with four ARGB fans. These fans not only provide excellent balanced cooling performance but also add a dynamic visual flair to your build. Complementing the internal cooling is the convenience of a front-panel USB Type-C® port, offering high-speed 10Gbps data transfer for quick file access and device connectivity, making it easier than ever to manage your gaming peripherals and data. This is a true gaming pc case designed for performance

FEATURES:

• Achieve superior thermal separation and airflow with the intelligent dual-chamber design for optimal gaming pc case performance.
• Admire your components in all their glory through the expansive panoramic tempered glass front and side panels, showcasing your ATX PC case.
• Install the latest high-performance hardware, including GPUs up to 420mm and CPU coolers up to 165mm, with ease in this Asus gaming chassis.
• Benefit from balanced cooling and striking ARGB aesthetics with four included fans, enhancing your gaming rig.
• Connect high-speed peripherals and devices swiftly with the front-panel USB Type-C® 10Gbps port for seamless data transfer.

SPECIFICATIONS:

• Motherboard Support:
  • ATX
  • Micro-ATX
  • Mini-ITX
• Drive Bays:
  • 2 x 3.5 or 3 x 2.5” Bay
• Expansion Slots: 7
• Front I/O Port:
  • 1 x headphone / Microphone
  • 1 x USB 3.2 Gen 2x1 Type C
  • 2 x USB 3.0
• Radiator Support (Top)
  • 120 mm
  • 240 mm
  • 360 mm
• Radiator Support (Rear): 120 mm
• Cooling Support (Top): 3 x 120 mm
• Cooling Support (Rear): 1 x 120 mm
• Pre-installed Fans (Rear): 1 x 120 mm ARGB
• Pre-Installed Fan (Side): 3 x 120 mm ARGB Reverse PWM
• Maximum CPU Cooler Height: 165 mm
• Maximum GPU Length: 420 mm
• Maximum PSU Length: 220 mm
• Removable Dust Filters:
  • Bottom
  • Right
• Maximum Cable Management Space: 90 mm
• Colour: Black
• Product Dimensions: 28.5 x 39 x 43.5 cm

WHAT’S IN THE BOX:

• Asus A32 PLUS ARGB ATX Gaming Chassis – Black x1

Why Asus?

Asus is at the forefront of gaming technology, delivering performance-driven components trusted by gamers worldwide. In South Africa, Asus represents a commitment to quality and innovation, ensuring your gaming rig is built with reliable, cutting-edge hardware that provides a competitive edge and an immersive experience. Choose Asus for a superior gaming pc case and ATX PC case solution.

Level up your rig with the ASUS Dual GeForce RTX 5060 Ti OC Edition 16GB GDDR7 Graphics Card, engineered to meet the performance demands of modern gamers. Powered by the NVIDIA® Blackwell architecture, this graphics card delivers breakthrough AI-driven visuals, real-time ray tracing and superior energy efficiency—perfect for high-performance gaming and content creation.

With 16GB of ultra-fast GDDR7 memory and 4608 CUDA cores, the ASUS Dual GeForce RTX 5060 Ti OC Edition 16GB GDDR7 Graphics Card offers next-generation memory bandwidth and processing power. Experience fluid, high-fidelity gameplay across resolutions up to 8K, backed by 28 Gbps memory speed and a 128-bit memory interface. In OC Mode, the card achieves a blistering boost clock of 2632 MHz, ensuring consistently high frame rates across AAA titles and esports favourites.

Built with gamers in mind, this card features a refined dual-fan Axial-tech design housed in a 2.5-slot frame, compact enough for SFF systems, yet powerful enough to anchor high-performance builds. Enhanced airflow and efficient thermal dynamics allow for quieter operation even under heavy graphical loads. An aluminium backplate and robust shroud reinforce durability, while Auto-Extreme manufacturing enhances long-term reliability.

Connectivity is future-ready with one HDMI 2.1b and three DisplayPort 2.1b outputs, supporting up to four simultaneous displays at a maximum digital resolution of 7680 x 4320. With 767 TOPs of AI processing, DLSS 4 and real-time ray tracing, the ASUS Dual GeForce RTX 5060 Ti OC Edition 16GB GDDR7 Graphics Card delivers immersive visuals and lightning-fast response for competitive gameplay.

Paired with GPU Tweak III, MuseTree, and NVIDIA Game Ready Drivers, you gain precision control, visual creativity, and consistent performance. Whether you're pushing ultra settings or creating digital content, this GPU is ready to lead your next adventure.

FEATURES:

• Powered by NVIDIA Blackwell architecture with 767 TOPs of AI performance
• 16GB GDDR7 memory with 28 Gbps speed for ultra-fast gaming and content creation
• OC Edition with boost clock up to 2632 MHz for enhanced frame rates in demanding titles
• 4608 CUDA cores deliver high-efficiency parallel processing for next-gen gameplay
• Axial-tech dual-fan cooling optimised for airflow, reduced noise, and longer component lifespan
• 2.5-slot design with compact 228 mm length, ideal for SFF and mainstream gaming builds
• Aluminium backplate and robust shroud provide extra durability and protection
• Supports up to four displays with HDMI 2.1b and triple DisplayPort 2.1b outputs
• Digital Max Resolution of 7680 x 4320 enables ultra-high-definition and multi-screen setups
• Auto-Extreme manufacturing ensures precision, stability and long-term component reliability
• GPU Tweak III and MuseTree software for advanced monitoring, tuning and creative control
• SFF Ready compatibility for flexible integration into small form factor chassis

SPECIFICATIONS:

• Graphic Engine: NVIDIA® GeForce RTX™ 5060
• AI Performance: 767 TOPs
• Bus Standard: PCI Express 5.0
• OpenGL: OpenGL®4.6
• Video Memory: 16GB GDDR7
• Engine Clock:
  • OC mode: 2632MHz
  • Default mode: 2602MHz (Boost Clock)
• CUDA Core: 4608
• Memory Speed: 28 Gbps
• Memory Interface: 128-bit
• Resolution: Digital Max Resolution 7680 x 4320
• Interface:
  • Yes x 1 (Native HDMI 2.1b)
  • Yes x 3 (Native DisplayPort 2.1b)
  • HDCP Support Yes (2.3)
• Maximum Display Support: 4
• NVlink/ Crossfire Support: No
• Software:
  • ASUS GPU Tweak III
  • MuseTree
  • GeForce Game Ready Driver
  • Studio Driver
• Recommended PSU: 550W
• Power Connectors: 1 x 8-pin
• Slot: 2.5 Slot
• SFF Ready: Compatible
• Dimensions: 22.9 x 12 x 5 cm

WHAT'S IN THE BOX:

• ASUS Dual GeForce RTX 5060 Ti OC Edition 16GB GDDR7 Graphics Card x1
• Speedsetup Manual x1

Experience next-gen gaming and AI performance with 12GB GDDR7 memory and a powerful OC Edition for South African creators and gamers.

Quick Specs

• Experience unparalleled gaming visuals with the powerful Nvidia GeForce RTX 5070 GPU.
• Harness the power of 12GB GDDR7 memory for faster data access and smoother performance.
• Benefit from incredible AI capabilities with a processing power of 998 TOPs.
• Enjoy high-resolution gaming and content creation with support for up to 7680 x 4320 resolution.
• Future-proof your system with the high-bandwidth PCI Express 5.0 interface.

Unleash peak performance for gaming and AI in South Africa

The ASUS Dual GeForce RTX 5070 is engineered for the demanding South African gamer and content creator who seeks uncompromising performance. This powerful Nvidia graphics card doesn't just play games; it elevates your entire digital experience. Whether you are pushing the limits of virtual worlds with its exceptional AI capabilities or rendering complex visual projects, the RTX 5070 delivers with speed and precision. Its design is focused on sustained performance, ensuring that even during extended sessions, your system remains cool and responsive. This is the definitive choice for those who demand the best in graphics technology, offering a tangible advantage in every application. This high end gaming GPU provides an unparalleled experience.

Experience the future of graphics with GDDR7 and PCIe 5.0

At the core of this powerhouse lies 12GB of cutting-edge GDDR7 video memory, providing significantly faster data transfer speeds than previous generations. This translates directly into smoother gameplay, quicker load times, and enhanced performance in memory-intensive applications like video editing and 3D rendering. Coupled with the latest PCI Express 5.0 bus standard, the graphics card ensures a high-bandwidth connection to your motherboard, minimising bottlenecks and maximising the utilisation of its impressive processing power. This synergy of advanced memory and interface technology makes the ASUS Dual RTX 5070 a true performance leader for today’s and tomorrow’s demanding tasks.

AI and visual fidelity, redefined

The NVIDIA GeForce RTX 5070 GPU within this ASUS card is not just about raw gaming power; it’s a sophisticated engine for artificial intelligence workloads. With an impressive AI performance rating of 998 TOPs, it accelerates machine learning tasks, AI-powered creative tools, and advanced rendering techniques. This capability empowers professionals and enthusiasts to work faster and more efficiently. Furthermore, the card supports a maximum digital resolution of 7680 x 4320, ensuring that every detail is rendered with stunning clarity, making it ideal for ultra-high-definition gaming, professional visualisation, and immersive content consumption. The nvidia graphics card stands ready to process your most demanding AI requests.

Designed for endurance and efficiency

The ASUS Dual series is renowned for its robust build and effective cooling solutions. This RTX 5070 features a 2.53 slot design that optimises airflow while maintaining a manageable size, making it compatible with a wider range of PC builds, including SFF (Small Form Factor) systems. The dual-fan configuration works in concert to dissipate heat efficiently, allowing the card to maintain its boost clock speeds of up to 2572MHz in OC mode for sustained performance. This focus on thermal management ensures longevity and consistent output, critical for a high-performance component. Choosing this nvidia graphics card means investing in quality.

FEATURES:

• Experience fluid visuals and competitive advantages with a high boost clock speed of up to 2572MHz in OC mode.
• Drive ultra-high-resolution gaming and professional applications with support for up to 7680 x 4320 digital resolution.
• Power through demanding tasks and AI workloads with 6144 CUDA cores and 998 TOPs of AI performance.
• Ensure seamless connectivity and maximum bandwidth for next-generation components with the PCI Express 5.0 interface.
• Enjoy peace of mind with a recommended 750W power supply and a single 16-pin power connector for simplified installation.

SPECIFICATIONS:

• Graphic Engine: NVIDIA® GeForce RTX™ 5070
• AI Performance: 998 TOPs
• Bus Standard: PCI Express 5.0
• OpenGL: OpenGL®4.6
• Video Memory: 12GB GDDR7
• Engine Clock:
  • OC mode: 2572MHz
  • Default mode: 2542MHz (Boost Clock)
• CUDA Core: 6144
• Memory Speed: 28 Gbps
• Memory Interface: 192-bit
• Resolution: Digital Max Resolution 7680 x 4320
• Interface:
  • Yes x 1 (Native HDMI 2.1b)
  • Yes x 3 (Native DisplayPort 2.1b)
  • HDCP Support Yes (2.3)
• Maximum Display Support: 4
• NVlink/ Crossfire Support: No
• Recommended PSU: 750W
• Power Connectors: 1 x 16-pin
• Slot: 2.53 slot
• SFF Ready: Compatible
• Colour: Black
• Software: ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
• Product Dimensions: 24.9 x 12.6 x 5 cm

WHAT’S IN THE BOX:

• ASUS Dual GeForce RTX 5070 12GB GDDR7 OC Edition Graphics Card x1
• Speedsetup Manual x1
• Adapter Cable (1 to 2) x1

Why Asus?

Asus is a globally trusted brand synonymous with cutting-edge technology and superior build quality. For South African gamers and creators, choosing Asus means investing in reliability, performance, and innovation that pushes boundaries. Experience the difference that engineering excellence makes with the Asus Dual GeForce RTX 5070, a truly exceptional Nvidia graphics card.

Quick Specs

• Boost up to 2715 MHz in OC mode for blistering-fast frame rates.
• Features 8GB of GDDR6 memory, perfect for demanding games and applications.
• Supports a maximum resolution of 7680 x 4320 for crystal-clear visuals.
• Equipped with a dual-fan cooling system for enhanced thermal performance.
• Offers multiple display outputs, allowing you to connect up to four monitors.

The ASUS RX 7600 Dual EVO OC Edition is engineered for gamers, content creators, and tech enthusiasts seeking reliable, high-performance graphics. Whether battling through the latest AAA titles, streaming gameplay, or creating digital content, this card delivers the performance and features needed. The ASUS RX 7600 is designed to slot into PC builds, providing a stable platform for all graphical needs.

Featuring a dual-fan design, the Dual Radeon RX 7600 EVO OC Edition provides excellent cooling. This ensures optimal performance during extended gaming sessions or heavy workloads. Focus without distractions, the fans operate quietly. This cooling system keeps temperatures in check, prolonging the card's lifespan and ensuring consistent performance.

Equipped with AMD's Radeon RX 7600 GPU, this card supports the latest gaming technologies, including DirectX 12 Ultimate and AMD FidelityFX Super Resolution. These features enhance visual fidelity and boost frame rates, providing a smooth and immersive gaming experience. Enjoy stunning graphics and fluid gameplay, exploring vast open worlds or engaging in fast-paced competitive matches.

The OC Edition has optimised clock speeds for enhanced performance. In OC mode, the boost clock speeds reach up to 2715 MHz, and the game clock speeds reach up to 2300 MHz, providing a noticeable performance boost. This overclocking potential allows pushing your system to its limits, achieving higher frame rates and smoother performance in demanding games.

With support for up to four displays, the ASUS RX 7600 EVO OC Edition is perfect for multi-monitor setups. Expand your gaming experience or increase productivity with more screen space. The card supports resolutions up to 7680 x 4320, ensuring crisp and detailed visuals on all your displays.

ASUS is known for its high-quality components and rigorous testing standards, ensuring that the Dual Radeon RX 7600 EVO OC Edition is built to last. The card features a sturdy design and premium components, providing reliable performance and durability. Backed by ASUS’s warranty, you can have peace of mind knowing that your investment is protected.

FEATURES:

• OC Mode: up to 2715 MHz (Boost Clock)/ up to 2300 MHz (Game Clock)
• Axial-tech Fan design features a smaller fan hub to increase airflow through the cooling array
• Dual ball fan bearings last up to twice as long as conventional designs
• 2.5-Slot design allows for greater build compatibility while maintaining premium cooling
• 0dB technology lets you enjoy light gaming in relative silence
• Auto-Extreme precision automated manufacturing for higher reliability
• A stainless-steel bracket is harder and more resistant to corrosion
• GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring

SPECIFICATIONS:

• Graphic Engine: AMD Radeon™ RX 7600
• Bus Standard: PCI Express 4.0
• OpenGL: OpenGL®4.6
• Video Memory: 8GB GDDR6
• Engine Clock:
  • OC mode: up to 2715 MHz (Boost Clock)/up to 2300 MHz (Game Clock)
  • Default mode: up to 2695 MHz (Boost Clock)/up to 2280 MHz (Game Clock)
• Stream Processors: 2048
• Memory Speed: 18Gbps
• Memory Interface: 128-bit
• Resolution: Digital Max Resolution 7680 x 4320
• Interface:
  • Yes x 1 (Native HDMI 2.1)
  • Yes x 3 (Native DisplayPort 1.4a)
  • HDCP Support Yes (2.3)
• Maximum Display Support: 4
• NVlink/ Crossfire Support: No
• Recommended PSU: 550W
• Power Connectors: 1 x 8-pin
• Slot: 2.5 Slot
• Product Dimensions: 22.9 x 12.3 x 4.9 cm

WHAT'S IN THE BOX:

• ASUS Dual Radeon RX 7600 EVO OC Edition 8GB GDDR6 Graphics Card x1
• Speedsetup Manual x1

Why Asus:

Choosing ASUS means investing in quality and performance. With a legacy of excellence, ASUS graphics cards are engineered with premium components and cutting-edge technology, ensuring reliability and superior gaming experiences. The ASUS Dual Radeon RX 7600 EVO OC Edition exemplifies this commitment, offering gamers in South Africa a competitive edge with enhanced cooling and overclocking capabilities, backed by ASUS's trusted warranty and support.

Experience breathtaking visuals and superior gaming performance with 16GB GDDR6 memory and advanced AMD Radeon technology, built for the demanding South African gamer.

Quick Specs

• Unleash powerful gaming performance with the AMD Radeon RX 9060 XT GPU.
• Immerse yourself in detailed worlds with 16GB of high-speed GDDR6 memory.
• Benefit from seamless connectivity and future-proofing with PCI Express 5.0.
• Experience crisp, high-resolution visuals up to 7680 x 4320.
• Power your system efficiently with a recommended 550W PSU and a single 8-pin connector.

Engineered for the serious South African gamer and content creator

The Asus Dual Radeon RX 9060 XT 16GB GDDR6 graphics card is not merely a component; it is the heart of your gaming rig. Designed for those who demand visual fidelity and uncompromised performance, this graphics card leverages the power of AMD's latest architecture to deliver an exceptional experience. Whether you are pushing the limits in the newest AAA titles, editing high-resolution video, or immersing yourself in virtual worlds, this graphics card provides the raw power and speed necessary to excel. It’s for the player who understands that the difference between victory and defeat, or between a good render and a great one, lies in the quality of the visual output and the fluidity of the frame rate. Embrace the next level of digital interaction with this powerful graphics card.

A foundation of speed and detail

At its core, the RX 9060 XT GPU is built for speed, featuring up to 3250 MHz boost clock speeds in OC mode. Paired with 16GB of GDDR6 memory running at 20 Gbps across a 128-bit interface, this 16GB GDDR6 graphics card ensures that complex textures, high-resolution assets, and demanding graphical effects are handled with ease. The digital maximum resolution of 7680 x 4320 means you can experience unparalleled detail on compatible displays, bringing virtual environments to life with astonishing clarity. This is the performance required for modern gaming and professional creative workloads, making it a top-tier graphics card for any enthusiast.

Seamless integration and future-proofed technology

Embracing the future of PC hardware, the Asus Dual RX 9060 XT features a PCI Express 5.0 bus standard. This pcie 5.0 graphics card provides double the bandwidth of PCIe 4.0, ensuring that your graphics card can communicate with the rest of your system at maximum speed, eliminating bottlenecks and optimising overall performance. Support for up to three displays simultaneously allows for an expanded, more immersive gaming setup or an efficient multi-monitor workstation. The thoughtful design ensures it fits within a 2.5 slot configuration, balancing power with compatibility for a wide range of PC builds.

Designed for efficiency and reliability

Asus’s commitment to quality extends to the thermal and power efficiency of the Dual series. This graphics card is engineered to maintain optimal temperatures even under heavy load, ensuring sustained performance and longevity. With a recommended power supply unit (PSU) of 550W and a single 8-pin power connector, it offers a balance of robust performance and manageable power requirements, making it a practical choice for many gaming setups without demanding excessive power infrastructure.

The definitive visual upgrade for South African gamers

For the discerning gamer in South Africa, the Asus Dual RX 9060 XT represents a significant leap forward. It offers a compelling blend of raw processing power, advanced memory architecture, and cutting-edge connectivity. Experience your favourite games with enhanced visual realism, smoother frame rates, and quicker load times. This card is more than an upgrade; it is an essential tool for anyone serious about their gaming or creative pursuits, providing a competitive edge and an elevated entertainment experience as a premier graphics card.

FEATURES:

• Experience fluid gameplay and stunning visuals, capable of pushing frame rates to new heights.
• Render intricate details and load complex scenes rapidly, ensuring smooth performance in demanding titles.
• Future-proof your rig and unlock maximum data transfer speeds with the advanced PCI Express 5.0 interface, designed for next-generation hardware. This pcie 5.0 graphics card ensures optimal performance.
• Immerse yourself in expansive, ultra-high-definition worlds thanks to a maximum digital resolution of 7680 x 4320, delivering unparalleled clarity.
• Maintain optimal performance and stability during intense gaming sessions with an efficient thermal design and a recommended 550W power supply.

SPECIFICATIONS:

• Graphic Engine: AMD Radeon™ RX 9060 XT
• Bus Standard: PCI Express 5.0
• OpenGL: OpenGL®4.6
• Video Memory: 16GB GDDR6
• Engine Clock
  • OC mode (GPU Tweak III): up to 3250 MHz (Boost Clock)/up to 2640 MHz (Game Clock)
  • Default mode: up to 3230 MHz (Boost Clock)/up to 2620 MHz (Game Clock)
• Stream Processors: 2048
• Memory Speed: 20 Gbps​
• Memory Interface: 128-bit
• Resolution: Digital Max Resolution 7680 x 4320
• Interface:
  • Yes x 1 (Native HDMI 2.1b)
  • Yes x 2 (Native DisplayPort 2.1a)
  • HDCP Support Yes (2.3)
• Maximum Display Support: 3
• NVlink/ Crossfire Support: No
• Recommended PSU: 550W
• Power Connectors: 1 x 8-pin
• Slot: 2.5 Slot
• Product Dimensions: 20.2 x 12 x 4.9 cm

WHAT'S IN THE BOX:

• Asus Dual Radeon™ RX 9060 XT 16GB GDDR6 Graphics Card - Black x1
• User Guide x1

Why Asus?

Asus is a globally recognized leader in PC components, renowned for its commitment to innovation, performance, and reliability. For South African gamers and creators, choosing Asus means opting for a brand that understands the demands of cutting-edge technology and delivers products built to withstand rigorous use, ensuring a superior and enduring computing experience. This commitment makes Asus a trusted name when selecting a graphics card.

Experience quiet, capable performance for everyday computing and light gaming tasks.

Quick Specs

• Silent cooling for a distraction-free environment.
• 2GB GDDR5 memory for essential graphics needs.
• Low-profile design fits in compact PC cases.
• Supports up to 4K resolution for clear visuals.
• Ideal for home theatre PCs and general office use.

Unlock quiet efficiency for your desktop

The Asus GeForce GT 1030 is engineered for users who seek reliable, silent graphics performance without the need for demanding gaming power. This low-profile graphics card is designed to seamlessly integrate into smaller form factor PCs, making it an excellent choice for home theatre systems, office workstations, and everyday computing. Its passive cooling design ensures operation without any fan noise, providing a tranquil environment for work or entertainment. For those in South Africa looking to enhance their visual experience beyond integrated graphics, the GT 1030 offers a tangible upgrade for smoother media playback and basic graphical tasks.

A silent upgrade for enhanced visuals

This graphics card provides a significant uplift from the graphics capabilities typically found on a CPU's integrated solution. With 2GB of GDDR5 memory and a dedicated NVIDIA GeForce GT 1030 GPU, this gt 1030 graphics card handles daily tasks with ease. Whether you are browsing the web, managing spreadsheets, or enjoying high-definition video content, the GT 1030 ensures a smooth and responsive visual experience. Its ability to support a digital maximum resolution of 4096 x 2160 means you can enjoy crisp, detailed imagery on compatible displays, enhancing your productivity and entertainment.

Designed for compatibility and quiet operation

The low-profile form factor of the Asus GT 1030 is a key advantage, allowing it to fit into a wide variety of PC cases, including slim and compact builds often found in media centres. This adaptability ensures that you can upgrade your system's graphics capabilities without requiring a complete chassis overhaul. Furthermore, the silent cooling solution means that this low profile graphics card operates without audible fan noise. This is particularly beneficial for environments where quiet operation is paramount, such as a home theatre or a shared workspace. It offers a practical and unobtrusive way to boost your PC's visual performance.

Essential performance for everyday use

For users whose primary needs involve standard desktop applications, media consumption, and light gaming, the Asus GeForce GT 1030 presents a compelling value proposition. It offers sufficient power to drive multiple displays and handle common graphical tasks efficiently. This graphics card is an intelligent investment for those looking to improve their visual output without the expense or complexity associated with high-end gaming GPUs. Its straightforward installation and plug-and-play nature make it accessible even for users less experienced with PC hardware upgrades.

Reliability and support from Asus

Asus is a brand synonymous with quality and reliability in the PC hardware space. The GeForce GT 1030 is built to meet these standards, offering dependable performance for its intended use. It comes bundled with ASUS GPU Tweak II software, which provides intuitive control over clock speeds, fan performance, and other critical parameters, allowing for easy system optimisation. This combination of solid hardware and user-friendly software ensures a positive experience for users seeking to enhance their PC's graphics capabilities.

FEATURES:

• Silent passive cooling means true 0dB - perfect for quiet home theater PCs and multimedia centers.
• Level up gaming performance by 6X compared to iGPU.
• Enjoy up to 11X better performance in photo and video editing compared to iGPU.
• Upgrade your entire PC multimedia experience with 2.5X faster performance than the Intel® Core™ i5.
• AUTO-EXTREME Technology delivers premium quality and best reliability.
• GPU Tweak II makes performance tweaking easier and more visual than ever with an intuitive, all-new UI.

SPECIFICATIONS:

• Graphic Engine: NVIDIA® GeForce GT 1030
• Bus Standard: PCI Express 3.0
• OpenGL: OpenGL®4.5
• Video Memory: 2GB GDDR5
• Engine Clock:
  • OC Mode - GPU Boost Clock : 1506 MHz , GPU Base Clock : 1266 MHz
  • Gaming Mode (Default) - GPU Boost Clock : 1468 MHz , GPU Base Clock : 1228 MHz
• CUDA Core: 384
• Memory Speed: 6008 MHz
• Memory Interface: 64-bit
• Resolution: Digital Max Resolution 4096 x 2160
• Interface:
  • Yes x 1 (Single-link DVI-D)
  • Yes x 1 (Native HDMI 2.0b)
  • HDCP Support Yes (2.2)
• Maximum Display Support: 2
• NVlink/ Crossfire Support: No
• Accessories:
  • Yes x 1
  • 1 x I/O bracket
• Software: ASUS GPU Tweak II & Drivers: please download all software from the support site.
• Recommended PSU: 300W
• Power Connectors: No
• Slot: 2 Slot
• Product Dimensions: 17.3 x 6.9 x4 cm

WHAT'S IN THE BOX:

• ASUS GeForce GT1030 2GB GDDR5 Low Profile Silent Graphics Card x1

Why Asus?

Asus is a globally trusted brand, renowned for its commitment to innovation, quality, and performance in PC hardware. For South African consumers, Asus delivers reliable components that enhance everyday computing and entertainment experiences, backed by local support.

Quick Specs

• Experience faster frame rates with NVIDIA GeForce RTX™ 5050.
• Accelerate demanding applications with 8GB GDDR6 memory.
• Benefit from enhanced cooling with a dual-fan design.
• Enjoy overclocked performance with OC Edition.
• Build with confidence using a reliable 550W recommended PSU.

Elevate Your Gaming Experience with South Africa's Best Gaming Graphics Card

The ASUS Dual GeForce RTX™ 5050 8GB GDDR6 OC Edition is engineered to bring a new level of performance to your gaming and creative endeavours. Featuring NVIDIA’s GeForce RTX™ 5050 GPU, this card delivers stunning visuals and high frame rates, ensuring a smooth and immersive experience. It is the ideal gaming graphics card for gamers and creators.

Ray Tracing and AI Acceleration on Your GeForce RTX Card

Experience games like never before with real-time ray tracing, providing lifelike lighting, reflections, and shadows. The GeForce RTX 5050's AI performance of 433 TOPs accelerates AI-powered features, enhancing image quality and overall performance in supported games and applications. Get the most out of your gaming graphics card with advanced AI capabilities.

Optimised Cooling Solution for Peak Performance

The ASUS Dual RTX 5050 is equipped with a dual-fan cooling system, ensuring efficient heat dissipation and maintaining optimal performance even during intense gaming sessions. This design not only keeps the card cool but also contributes to a longer lifespan and quieter operation, crucial for any high-end gaming graphics card.

Overclocked Performance Out of the Box

This OC Edition card comes with enhanced clock speeds, delivering a boost in performance right from the start. With an OC mode clock speed of 2677 MHz, you can enjoy even smoother gameplay and faster rendering times without the need for manual overclocking on your gaming graphics card.

PCI Express 5.0 Support

Take advantage of the latest PCI Express 5.0 standard, which offers increased bandwidth and faster data transfer speeds. This ensures that your gaming graphics card can communicate efficiently with the rest of your system, maximizing performance and reducing bottlenecks.

Compact and Compatible Design

With its 2-slot design and dimensions of 20.3 x 12 x 4 cm, the ASUS Dual RTX 5050 is designed to fit into a wide range of systems. Its compact size does not compromise performance, making it an ideal choice for both new builds and upgrades.

Software Suite for Enhanced Control

Unlock the full potential of your graphics card with ASUS GPU Tweak III. This software allows you to monitor performance, adjust settings, and customize fan speeds to your liking. Additionally, enjoy seamless compatibility with GeForce Game Ready and Studio Drivers for optimized performance in the latest games and creative applications.

Built for Demanding Applications

Whether you are a gamer, content creator, or professional, the ASUS Dual GeForce RTX™ 5050 is designed to handle demanding workloads. Its 8GB of GDDR6 memory and 2560 CUDA cores ensure smooth performance in a variety of applications, from video editing to 3D rendering. This gaming graphics card is the best choice for your needs.

FEATURES:

• Experience stunning visuals with 8GB GDDR6 memory, ensuring smooth and detailed graphics powered by GeForce.
• Amplify clock speeds up to 2677MHz (OC mode) for faster and more responsive gaming.
• Immerse yourself in lifelike gaming environments with real-time ray tracing technology.
• Utilise PCI Express 5.0 for lightning-fast data transfer speeds and enhanced performance for your gaming graphics card.
• Connect up to four displays simultaneously, expanding your gaming or productivity setup.
• Optimise performance and monitor settings with ASUS GPU Tweak III software.
• Enjoy peace of mind with a robust design and high-quality components and a vented backplate.

SPECIFICATIONS:

• Graphic Engine: NVIDIA® GeForce RTX™ 5050
• AI Performance: 433 TOPs
• Bus Standard: PCI Express 5.0
• OpenGL: OpenGL®4.6
• Video Memory: 8GB GDDR6
• Engine Clock:
  • OC mode: 2677 MHz
  • Default mode: 2647 MHz (Boost Clock)
• CUDA Core: 2560
• Memory Speed: 20Gbps
• Memory Interface: 128-bit
• Resolution: Digital Max Resolution 7680 x 4320
• Interface:
  • Yes x 1 (Native HDMI 2.1b)
  • Yes x 3 (Native DisplayPort 2.1b)
  • HDCP Support Yes (2.3)
• Maximum Display Support: 4
• NVlink/ Crossfire Support: No
• Recommended PSU: 550W
• Power Connectors: 1 x 8-pin
• Slot: 2 Slot
• Software: ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
• Product Dimensions: 20.3 x 12 x 4 cm

WHAT'S IN THE BOX:

• ASUS Dual GeForce RTX™ 5050 8GB GDDR6 OC Edition Graphics Card x1
• Speedsetup Manual x1

Why Asus?

Choosing ASUS means investing in the best gaming graphics card, quality, and innovation. With a legacy of excellence, ASUS graphics cards are renowned for their reliability, performance, and cutting-edge technology. The ASUS Dual GeForce RTX™ 5050 is no exception, offering gamers and creators in South Africa a superior experience backed by ASUS's commitment to customer satisfaction and local support. When it comes to a GeForce RTX card, ASUS delivers top-tier performance and dependability.

Quick Specs

• Equipped with 8GB GDDR6 memory, delivering smooth visuals and efficient performance.
• Boost your clock speeds to 2707 MHz in OC mode for enhanced gaming experiences.
• Experience lifelike graphics with real-time ray tracing powered by NVIDIA's RTX technology.
• Leverage 2560 CUDA cores for faster rendering and improved graphical processing.
• Benefit from PCI Express 5.0 support for lightning-fast data transfer speeds.

Elevate Your Gaming Experience

Immerse yourself in the latest titles with the ASUS GeForce RTX 5050, a high-performance gaming graphics card designed to deliver stunning visuals and responsive gameplay. Experience enhanced frame rates and reduced latency, providing a competitive edge in your favourite games. This GeForce RTX 5050 ensures smooth, detailed graphics for an immersive gaming experience.

Accelerate Content Creation

Unlock your creative potential with the GeForce RTX 5050, which accelerates demanding content creation tasks such as video editing, 3D rendering, and graphic design. Enjoy smoother workflows and reduced rendering times, allowing you to bring your ideas to life faster.

Real-Time Ray Tracing and AI Performance

Experience unparalleled realism with real-time ray tracing, simulating how light behaves in the real world to produce incredibly realistic and immersive graphics. Benefit from 439 TOPs of AI performance, enhancing in-game visuals and accelerating AI-powered applications. The ASUS GeForce RTX 5050 brings cutting-edge graphical performance to your fingertips.

Advanced Cooling and Durability

The ASUS GeForce RTX 5050 features a 2.5-slot design and robust cooling solution, ensuring optimal thermal performance even under heavy loads. Built with high-quality components and rigorous testing, this gaming graphics card offers exceptional reliability and longevity. The OC edition enhances clock speeds for peak performance.

PCI Express 5.0 Support

Take advantage of the latest PCI Express 5.0 standard, which doubles the bandwidth compared to PCIe 4.0, providing faster data transfer speeds and improved overall system performance. This ensures that your gaming graphics card can handle the most demanding games and applications with ease.

FEATURES:

• Experience stunning visuals with 8GB GDDR6 memory, ensuring smooth and detailed graphics powered by GeForce.
• Amplify clock speeds up to 2707 MHz (OC mode) for faster and more responsive gaming.
• Immerse yourself in lifelike gaming environments with real-time ray tracing technology.
• Utilise PCI Express 5.0 for lightning-fast data transfer speeds and enhanced performance for your gaming graphics card.
• Connect up to four displays simultaneously, expanding your gaming or productivity setup.
• Optimise performance and monitor settings with ASUS GPU Tweak III software.
• Enjoy peace of mind with a robust design and high-quality components and a vented backplate.

SPECIFICATIONS:

• Graphic Engine: NVIDIA® GeForce RTX™ 5050
• AI Performance: 439 TOPs
• Bus Standard: PCI Express 5.0
• OpenGL: OpenGL®4.6
• Video Memory: 8GB GDDR6
• Engine Clock:
  • OC mode: 2707 MHz
  • Default mode: 2677 MHz (Boost Clock)
• CUDA Core: 2560
• Memory Speed: 20 Gbps
• Memory Interface: 128-bit
• Resolution: Digital Max Resolution 7680 x 4320
• Interface:
  • Yes x 1 (Native HDMI 2.1b)
  • Yes x 3 (Native DisplayPort 2.1b)
  • HDCP Support Yes (2.3)
• Maximum Display Support: 4
• NVlink/ Crossfire Support: No
• Recommended PSU: 550W
• Power Connectors: 1 x 8-pin
• Slot: 2.5 Slot
• Software: ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
• Product Dimensions: 26.8 x 12 x 5 cm

WHAT'S IN THE BOX:

• ASUS Prime GeForce RTX™ 5050 8GB GDDR6 OC Edition Graphics Card x1
• Speedsetup Manual x1

Why Asus?

ASUS is a trusted brand renowned for its high-quality components and innovative designs in gaming graphics cards. Choosing an ASUS GeForce gaming graphics card ensures you are investing in a product built to last and deliver exceptional performance. ASUS products are widely available and supported in South Africa, providing reliable local service and support for your GeForce RTX 5050.

The ASUS PRIME A520M-K AM4 M-ATX Motherboard is a versatile and expertly engineered solution designed to unlock the full potential of 3rd Generation AMD Ryzen processors. Built on the robust AMD A520 chipset, this motherboard features a powerful design and a host of intelligent tuning options, catering to DIY PC builders and daily users alike. It offers intuitive performance optimization via ASUS’s easy-to-use software and firmware, making it a perfect choice for productivity-focused systems. With support for up to 64GB of DDR4 memory at speeds of up to 4600 MHz (O.C.), the PRIME A520M-K ensures smooth and efficient multitasking.

Cooling is a critical aspect of any PC build, and the PRIME A520M-K delivers with comprehensive cooling controls and hybrid fan headers. Utilizing ASUS’s Fan Xpert software or the UEFI BIOS, users can customize cooling profiles to maintain stable performance under demanding workloads. The aluminum PCH heatsink further enhances thermal management, ensuring long-term stability and reliability. This motherboard is designed to keep your system running cool and quiet, even during intense operations.

Connectivity is another highlight of the PRIME A520M-K, with an array of modern features designed to meet the needs of today’s high-performance systems. The inclusion of an M.2 slot with PCIe 3.0 x4 support provides ultra-fast data transfer speeds of up to 32Gbps, ideal for operating systems and high-speed storage applications. Additionally, the board offers multiple USB ports, including four rear-panel USB 3.2 Gen 1 Type-A connectors, ensuring compatibility with a wide range of peripherals. The Realtek RTL8111H Gigabit Ethernet and ASUS LANGuard provide reliable and secure network performance.

Built with durability and user experience in mind, the PRIME A520M-K features ASUS’s exclusive SafeSlot Core PCIe design, delivering enhanced retention and shearing resistance for your graphics card. Its integrated audio solution, powered by Realtek ALC887, ensures pristine sound quality for an immersive experience. With its compact M-ATX form factor, this motherboard offers an ideal blend of performance, reliability, and features, making it a solid foundation for any AMD-powered system.

FEATURES:

• AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
• Comprehensive cooling: PCH heatsink and Fan Xpert
• Ultrafast connectivity: M.2 support, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A
• 5X Protection III: Multiple hardware safeguards for all-around system protection
• ASUS Thermal Solution: Aluminum heatsink design

SPECIFICATIONS:

• Socket: AM4
• CPU: Build in AMD AM4 Socket for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
• Chipset: A520
• DDR4 Memory: DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz
• Memory Channel: Dual
• DIMM Slots: 2
• Max Memory (GB): 64GB
• PCI-E 3.0 x16: 1
• PCI-E 3.0 x1: 2
• M.2 Slot: 1
• SATA 6G: 4
• RAID: 0/1/10
• LAN: Realtek RTL8111H 1Gb Ethernet, ASUS LANGuard
• USB 3.2 ports (Front): 2(Gen 1, Type A)
• USB 3.2 ports (Rear): 4(Gen 1, Type A)
• USB 2.0 ports (Front): 4
• USB 2.0 ports (Rear): 2
• Audio ports (Rear): Realtek ALC8877.1 Surround Sound High Definition Audio CODEC
• HDMI: 1
• VGA: 1
• DirectX: 12
• Form Factor: M-ATX
• Operating System: Support for Windows® 10 64-bit

WHAT’S IN THE BOX:

• Asus PRIME A520M-K AM4 M-ATX Motherboard – Black x1
• SATA Cables x2
• I/O Shield x1
• M.2 SSD Screw Package x1
• User Manual x1

Build your next AM5 system with a stable foundation, designed for efficient performance and crucial connectivity for everyday computing.

Quick Specs

• Supports the latest AMD Ryzen™ 7000, 8000, and 9000 series processors for broad compatibility.
• Robust power delivery ensures stable operation for your CPU and system components.
• Multiple USB ports provide ample connectivity for all your essential peripherals.
• Onboard M.2 slot offers fast storage upgrade options for quicker load times.
• Durable construction and quality components assure reliable, long-term performance.

A solid foundation for your AM5 build in South Africa

The Asus PRIME A620AM-K motherboard is engineered to be the steadfast core of your new AMD AM5 system. Designed for builders who value stability and essential functionality, this Micro-ATX board provides a reliable platform for everyday computing, productivity, and mainstream gaming. It respects the fundamental requirements of a robust PC, ensuring that your chosen Ryzen processor operates efficiently and your connected devices perform optimally. This is the board for those who seek a straightforward, dependable build without unnecessary complexity, making it an ideal choice for users across South Africa looking to establish a capable AM5 system. Experience the power of the latest processors with this essential AM5 motherboard.

Optimised for current and future Ryzen processors

Embrace the power of AMD's latest architecture with confidence. The PRIME A620AM-K motherboard offers comprehensive support for AMD Ryzen™ 7000, 8000, and the upcoming 9000 series processors. This broad compatibility ensures that you can select a CPU that fits your current needs while retaining the option to upgrade to newer, more powerful processors in the future without needing to replace your motherboard. This foresight in design provides enduring value for your investment, allowing your system to evolve alongside technological advancements.

Stable power delivery for consistent performance

At the heart of any reliable system lies robust power delivery. The Asus PRIME A620AM-K features carefully selected components and an optimised power design to ensure a steady and consistent flow of electricity to your CPU. This stability is crucial for maintaining peak performance during demanding tasks, preventing thermal throttling, and prolonging the lifespan of your processor and motherboard. Whether you are multitasking for work, rendering creative projects, or enjoying extended gaming sessions, you can depend on this AM5 motherboard to deliver consistent power.

Essential connectivity for your setup

Connectivity is paramount in modern computing, and the PRIME A620AM-K addresses this need with a comprehensive array of ports and headers. It includes multiple USB ports, catering to your keyboard, mouse, external drives, and other peripherals. The inclusion of an M.2 slot allows for the installation of high-speed NVMe SSDs, dramatically reducing system boot times and application load speeds. Coupled with high-definition audio support featuring front panel jack retasking and multi-streaming capabilities, this motherboard ensures that your core connectivity needs are met with efficiency and ease. This is a truly capable DDR5 motherboard, ready for your build.

Built to last, designed for dependability

Asus has a long-standing reputation for building quality hardware, and the PRIME A620AM-K upholds this standard. Constructed with durable materials and subjected to rigorous testing, this motherboard is designed for long-term reliability. The engineering focus on longevity means you can build a system that you can trust to perform consistently, day after day, making it a wise choice for users in South Africa who require a dependable computing platform for years to come. The Asus PRIME A620AM-K is the AM5 motherboard choice for stability.

Discover the Asus PRIME A620AM-K difference

For builders seeking a balance of performance, reliability, and essential features, the Asus PRIME A620AM-K stands out. This Micro-ATX motherboard is a testament to Asus's commitment to providing stable and efficient platforms for the latest AMD processors. Its thoughtful design ensures that you have the connectivity and power delivery needed for a smooth computing experience, whether for work, study, or entertainment. Investing in the Asus PRIME A620AM-K means choosing a foundation built for both current demands and future potential, making it a smart selection for your next PC build. It is a premier DDR5 motherboard.

FEATURES:

• Leverage the power of AMD Ryzen™ 7000, 8000, and 9000 Series processors for a wide range of performance needs.
• Configure robust RAID arrays (0, 1, 10, or 5) for your storage needs, ensuring data integrity and speed.
• Experience crystal-clear audio with jack-detection and front panel jack-retasking for personalised sound configurations.
• Benefit from multiple USB ports for versatile peripheral connectivity, ensuring all your devices are supported.
• Enjoy rapid storage performance with an onboard M.2 slot, designed for swift data access and system responsiveness.

SPECIFICATIONS:

• CPU
  • AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
  • Supports up to AMD 120W CPU
  • * Refer to https://www.asus.com/support/download-center/ for CPU support list.
• Chipset
  • AMD A620A Chipset
• Memory
  • 2 x DIMM slots, max. 128GB, DDR5
  • Supports up to
  • 7200+MT/s(OC) with Ryzen™ 9000 & 7000 Series Processors,
  • 7600+MT/s(OC) with Ryzen™ 8000 Series Processors,
  • Non-ECC Un-buffered DIMM*
  • Dual channel memory architecture
  • Supports AMD Extended Profiles for Overclocking (EXPO™)
  • ASUS Enhanced Memory Profile (AEMP)
• Graphics
  • 1 x DisplayPort**
  • 1 x HDMI™ port***
  • * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
  • ** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
  • *** Supports 4K@60Hz as specified in HDMI 2.1.
• Expansion Slots
  • AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
  • 1 x PCIe 4.0 x16 slot (supports x16 mode)
  • AMD Ryzen™ 8000 Series Desktop Processors
  • 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
  • AMD A620A Chipset
  • 1 x PCIe 3.0 x1 slot
• Storage
  • Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
  • AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
  • M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • AMD A620A Chipset
  • 4 x SATA 6Gb/s ports
• RAID Support
  • AMD RAIDXpert2 Technology*
  • Ryzen™ 9000 Series Processors: RAID 0/1/5/10
  • Ryzen™ 8000 Series Processors: RAID 0/1
  • Ryzen™ 7000 Series Processors: RAID 0/1/10
  • * Specifications vary by CPU types.
• Ethernet
  • 1 x Realtek 1Gb Ethernet
  • ASUS LANGuard
• USB
  • Rear USB (Total 6 ports)
  • 4 x USB 5Gbps ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • Front USB (Total 6 ports)
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Audio
  • Realtek 7.1 Surround Sound High Definition Audio CODEC*
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
  • Audio Features
  • Audio Shielding
  • Premium audio capacitors
  • Dedicated audio PCB layers
  • * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
• Back Panel I/O Ports
  • 4 x USB 5Gbps ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI™ port
  • 1 x Realtek 1Gb Ethernet port
  • 3 x Audio jacks
  • 1 x PS/2 keyboard/mouse combo port
• Internal I/O Connectors
  • Fan and Cooling Related
  • 1 x 4-pin CPU Fan header
  • 2 x 4-pin Chassis Fan headers
  • Power Related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V CPU Power connector
  • Storage Related
  • 1 x M.2 slot (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • Miscellaneous
  • 3 x Addressable RGB Gen 2 headers
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (F_AUDIO)
  • 1 x S/PDIF Out header
  • 1 x SPI TPM header (14-1 pin)
  • 1 x 10-1 pin Front Panel System header
• Special Features
  • ASUS 5X PROTECTION III
  • DIGI+ VRM
  • LANGuard
  • Overvoltage protection
  • SafeSlot Core
  • Stainless-steel back I/O
  • ASUS Q-Design
  • Q-DIMM
  • Q-LED Core
  • Q-Slot
  • ASUS Thermal Solution
  • Aluminum heatsink design
  • Aura Sync
  • Addressable RGB Gen 2 headers
• BIOS
  • 256 Mb Flash ROM, UEFI AMI BIOS
• Manageability
  • WOL by PME, PXE
• Operating System
  • Windows 11, Windows 10 64-bit
• Form Factor
  • micro-ATX Form Factor
  • 8.9 inch x 8.7 inch (22.6 cm x 22.1 cm)

WHAT'S IN THE BOX:

• Asus PRIME A620AM-K AM5 M-ATX Motherboard - Black x1
• SATA 6Gb/s cables x2
• I/O shield x1
• Screw Package for M.2 SSD x1
• Quick Start Guide x1

Why Asus?

Asus is a global leader in motherboards, trusted by PC builders worldwide for relentless innovation, uncompromising quality, and exceptional reliability. For South African users, Asus delivers cutting-edge technology backed by local support, ensuring your build is not only powerful but also dependable. Choose Asus for a superior PC experience, especially with platforms like the PRIME A620AM-K, an excellent am5 motherboard choice.

Engineered for demanding gaming environments, the ASUS Prime 750W Power Supply Unit delivers robust performance, superior reliability, and future-ready compliance. Built on the ATX 3.1 standard and supporting the latest PCIe 5.0 specification, it’s the ideal choice for powering high-performance gaming rigs and enthusiast-grade components.

This power supply offers 750W of continuous power with 80 PLUS Gold efficiency, reducing energy waste and thermal output. The ASUS Prime 750W Power Supply features Active PFC, and premium internal components including 105°C Japanese capacitors, ensuring stable output and a long lifespan rated at over 120,000 hours at 25°C.

Connectivity is comprehensive, with one 24/20-pin motherboard connector, dual 4+4-pin CPU connectors, three 8-pin PCI-E, and one native 16-pin PCIe Gen 5.1 cable — ready to power the latest GPUs. Additional SATA and peripheral connectors support a range of storage devices and legacy hardware. Its fully modular cable design enables optimal airflow and cleaner aesthetics, while integrated safeguards such as OPP, OVP, UVP, SCP, OCP, and OTP provide peace of mind during peak usage.

Compact at just 15 x 15 x 8.6 Cm and weighing 1466 g, the ASUS Prime 750W Power Supply fits easily into most chassis. Built for serious gamers, it offers power you can trust with the performance you demand.

FEATURES:

• 750W continuous power output with 80 PLUS Gold efficiency for optimised energy use and lower heat
• Fully modular cable design for cleaner builds and improved airflow
• PCIe Gen 5.1 16-pin connector supports high-performance GPUs and next-gen graphics cards
• Built to ATX 3.1 and PCIe 5.0 standards for future-ready system compatibility
• Premium Japanese capacitors rated for 105°C ensure enhanced durability and stability
• 135mm dual ball bearing fan delivers consistent cooling under heavy gaming loads
• Comprehensive power protection with OPP, OVP, UVP, SCP, OCP, and OTP safeguards
• Compact ATX form factor (150 x 150 x 86 mm) fits most mainstream and custom gaming chassis

SPECIFICATIONS:

• Intel Form Factor: ATX12V
• PFC Type: Active PFC
• ATX Standard: ATX 3.1
• Efficiency: 80Plus Gold
• MTBF: >120,000 hrs @ 25°C
• Protection Features: OPP/OVP/UVP/SCP/OCP/OTP
• Hazardous Materials: ROHS
• AC Input Range: 100-240Vac
• DC Output Voltage: +3.3V +5V +12V -12V +5Vsb
• Maximum Load: 20A20A62A 0.3A 2.5A
• Combined Load: 110W 110W 744W 3.6W 12.5W
• Total Output: 750W
• Cable Connectors:
  • MB 24/20-pin x 1
  • CPU 4+4-pin x 2
  • PCI-E 16-pin x 1 (both PSU & connector side)
  • PCI-E 8-pin x 3
  • SATA x 5
  • PERIPHERAL x 3
• 0dB Technology: No
• 0dB Fan Button: No, this product is without 0dB technology
• Dimensions: 15 x 15 x 8.6 Cm
• Weight: 1466 g (single PSU)

WHAT'S IN THE BOX:

• ASUS Prime AP-750G 750W 80+ Gold Fully Modular ATX3.1 Power Supply X1
• Power Cord x 1
• Motherboard Power Cable x 1
• CPU Cable x 2
• PCI-E Gen 5.1 16-pin Cable x 1
• PCI-E (16-pin to 8-pin-8-pin) Cable x1
• PCI-E 1-to-1 Cable x 1
• SATA 1-to-2 Cable x 1
• SATA 1-to-3 Cable x 1
• Peripheral 1-to-3 Cable x 1
• User Manual x 1

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans. PRIME B760 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws, and these removable captive screws help reduce risk of drops or loss during heatsink removal. VRM heatsinks and thermal pads improve heat transfer from the MOSFETs and chocks for better cooling performance.

PRIME B760 series features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS. Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

The PRIME B760 series are built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options. Stable power is essential to extract every last bit of performance out of Intel® processors. The PRIME B760M-A WIFI is geared to cater to the demands of these high-core-count CPUs.

FEATURES:

• Micro-ATX Form Factor
• Intel® B760 Chipset
• Supports Intel® 13th and 12th Gen Desktop Processors
• Support for DDR5 up to 7200+MT/s, AEMPIII
• PCIe 4.0 support for graphics cards
• Wi-Fi 6 and 2.5Gb Ethernet support for faster data transfer

SPECIFICATIONS:

• Socket: Intel Socket LGA1700
• CPU: Supports Intel® 13th and 12th Gen Intel® Desktop Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
• Chipset: Intel® B760 Chipset
• DDR5 Memory: Support DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, ASUS OptiMem II supported
• Memory Channel: Dual
• DIMM Slots: 4
• Max Memory (GB): 192
• PCI-E 4.0 x16: 1
• PCI-E 4.0 x1: 1
• SATA 6G: 4
• M.2 Slot: 2
• RAID: Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10
• LAN: Realtek 2.5Gb Ethernet
• Wireless and Bluetooth: Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Bluetooth v5.2
• USB Ports Rear:
  • 2 x USB 3.2 Gen 2 ports (2 x Type-A )
  • 4 x USB 2.0 ports (4 x Type-A)
• USB Ports Front:
  • 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C^®)
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • 1 x USB 2.0 header supports 1 additional USB 2.0 port
• Audio ports (Rear): Realtek 7.1 Surround Sound High Definition Audio CODEC
• HDMI: 2
• DisplayPort: 1
• DirectX: 12
• Form Factor: Micro-ATX
• Operating System: Support for Windows® 11, Windows® 10 64-bit

WHAT'S IN THE BOX:

• Asus PRIME B760M-A WIFI Intel LGA1700 M-ATX Motherboard – Black x1
• SATA Cables x2
• Asus Wi-Fi Adjustable Antenna x1
• I/O Shield x1
• M.2 Rubber Package x1
• Screw Package for M.2 SSD x1
• User Guide x1

Designed to fully leverage the power of AMD Ryzen™ 9000, 8000, and 7000 Series processors, the ASUS PRIME B840M-A WIFI motherboard is an advanced, feature-rich platform built for DIY builders, gamers, and creative professionals alike. It’s expertly engineered with ASUS' AI Advisor and Advanced AI PC-ready architecture, making it ideal for handling heavy workloads and next-gen AI applications. The board’s robust 8+2+1 power phase design with discrete MOSFETs ensures smooth and efficient power delivery, enabling stable performance across demanding tasks.

The PRIME B840M-A WIFI supports up to 256GB of blazing-fast DDR5 memory with speeds up to 7600+MT/s (OC), along with ASUS AEMP and AMD EXPO™ profiles for streamlined overclocking. Comprehensive memory tuning tools are embedded within the UEFI BIOS, giving both newcomers and veterans the flexibility to fine-tune for performance or efficiency. Storage options are future-ready with three M.2 slots—two PCIe 4.0 and one PCIe 3.0—allowing faster boot times, lightning-quick application launches, and expansive SSD capacity. Q-Design innovations such as Q-Antenna and Q-LED Core make system assembly and troubleshooting quick and intuitive.

Stay ahead of the curve with cutting-edge connectivity options, including integrated Wi-Fi 6E, Realtek 2.5Gb Ethernet, and USB 10Gbps Type-A and 5Gbps Type-C® ports for high-speed data transfer and reduced latency. Onboard HDMI, dual DisplayPort, and Realtek 7.1 Surround Sound offer seamless multimedia integration for gaming, streaming, and content creation. The motherboard’s thermal design includes a VRM heatsink, passive chipset heatsink, hybrid fan headers, and AiO pump support, ensuring optimal cooling even during peak performance sessions.

Compact in size but packed with features, the ASUS PRIME B840M-A WIFI M-ATX motherboard is built to make your build stand out—both inside and out. Onboard Aura Sync-compatible RGB headers support Gen 2 addressable devices, giving you full control of system lighting via ASUS’ intuitive software suite. Whether you're customizing airflow, syncing RGB effects, or pushing your system to the limit, this motherboard offers a balance of premium performance, simplified DIY experience, and future-forward connectivity—all wrapped in a sleek, modern form factor ready for Windows® 11.

FEATURES:

• AMD AM5 Socket: Ready for AMD Ryzen™ 9000/8000/7000 Series Desktop Processors
• Ultrafast Connectivity: Wi-Fi 6E, M.2 PCIe 4.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®
• ASUS Enhanced Memory Profile (AEMP) for enhanced DDR5 performance
• ASUS Q-Design and EZ PC DIY for easily connecting and customizing your hardware
• Comprehensive Cooling: VRM heatsink, Passive chipset heatsink, hybrid fan headers and AiO pump header
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

SPECIFICATIONS:

• Socket: AM5
• CPU: Supports AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
• Chipset: AMD B840 Chipset
• DDR5 Memory: Support DDR5 up to 7600+MT/s (OC) with Ryzen^™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered Memory, supports AMD Extended Profiles for Overclocking (EXPO^™), supports ASUS Enhanced Memory Profile (AEMP)
• Memory Channel: Dual
• DIMM Slots: 4
• Max Memory (GB): 256
• PCI-E 4.0 x16: 1
• PCI-E 3.0 x16: 2
• SATA 6G: 4
• M.2 Slot: 3
• LAN: Realtek 2.5Gb Ethernet, ASUS LANGuard
• Wireless and Bluetooth: Wi-Fi 6E, 2x2 Wi-Fi 6E (802.11ax), Supports 2.4/5/6GHz frequency band, Bluetooth v5.3
• USB Ports Rear:
  • 2 x USB 10Gbps ports (2 x Type-A)
  • 1 x USB 5Gbps port (1 x USB Type-C®)
  • 4 x USB 2.0 ports (4 x Type-A)
• USB Ports Front:
  • 1 x USB 5Gbps connector (supports USB Type-C®)
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Audio ports (Rear): Realtek 7.1 Surround Sound High Definition Audio CODEC
• HDMI: 1
• DisplayPort: 2
• DirectX: 12
• Form Factor: M-ATX
• Operating System: Support for Windows® 11, Windows® 10 64-bit

WHAT'S IN THE BOX:

• Asus PRIME B840M-A WIFI M-ATX Gaming Motherboard – Black x1
• SATA 6Gb/s Cables x2
• Asus Wi-Fi Q-Antenna x1
• M.2 Rubber Package x1
• Screw Packaging for M.2 SSD x2
• Quick Start Guide x1

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860M-K motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Stable power is crucial for maximizing the performance of Intel® Core™ Ultra Processors (Series 2).The PRIME B860M-K features an 6+1+1+1 phase design with discrete MOSFETs, ensuring efficient and stable power delivery for Intel® processors plus steady performance for day-to-day use.

ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-7600 or higher.

PRIME B860M-K offers a total of two M.2 slots, including one that supports data-transfer speeds of up to 128Gbps via PCIe 5.0, one that supports 64Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.

The PRIME B860M-K motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads. This motherboard offers a versatile range of connectivity, including support for PCIe 5.0 M.2, PCIe 4.0 slot and an arsenal of USB ports which includes Type-C® connection.

Realtek 2.5Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers. A batch of USB ports support high-end rigs loaded with peripherals, including a front USB Type-C® connector with ultrafast USB 5Gbps for transmission speeds of up to 5Gbps.

The PRIME B860M-K enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic. The PRIME B860M-K motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.

FEATURES:

• Micro-ATX Form Factor
• Intel® B860 Chipset
• Supports Intel® Core™ Ultra Processors (Series 2)
• Support for DDR5 up to 8800+MT/s, AEMPIII
• PCIe 4.0 support for graphics cards
• 2.5Gb Ethernet support for faster data transfer

SPECIFICATIONS:

• Socket: Intel Socket LGA1851
• CPU: Supports Intel® Core™ Ultra Processors (Series 2) Desktop Processors
• Chipset: Intel® B860 Chipset
• DDR5 Memory: Support DDR5 8800+MT/s, ASUS Enhanced Memory Profile (AEMPIII) supported
• Memory Channel: Dual
• DIMM Slots: 2
• Max Memory (GB): 128
• PCI-E 4.0 x16: 1
• PCI-E 4.0 x1: 2
• SATA 6G: 4
• M.2 Slot: 2
• RAID: Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10
• LAN: Realtek 2.5Gb Ethernet, TUF LANGuard
• USB Ports Rear:
  • 1 x USB 10Gbps port (1 x Type-A)
  • 2 x USB 5Gbps ports (2 x Type-A)
  • 3 x USB 2.0 ports (3 x Type-A)
• USB Ports Front:
  • 1 x USB 5Gbps connector (supports USB Type-C^®)
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• USB Type-C® power delivery output: max. 5V/3A
• Audio ports (Rear): Realtek 7.1 Surround Sound High Definition Audio CODEC
• HDMI: 1
• DisplayPort: 1
• DirectX: 12
• Form Factor: Micro-ATX
• Operating System: Support for Windows 11(22H2 & later), Windows 10 64-bit(21H2 & later)

WHAT'S IN THE BOX:

• Asus PRIME B860M-K Intel LGA1851 M-ATX Motherboard – Black x1
• SATA Cables x2
• I/O Shield x1
• M.2 Anchor Package x1
• Quick Start Guide x1

If you’re after serious performance without maxing out your chassis space, the ASUS RTX 5060 OC 8GB Graphics Card is exactly the kind of smart, future-ready upgrade your build needs. Powered by NVIDIA’s Blackwell architecture and wrapped in ASUS’s high-efficiency design language, this SFF-Ready card hits the sweet spot for gamers, creators, and AI power users alike.

Let’s talk performance. You’re getting 630 AI TOPS of processing power, 5th Gen Tensor Cores with FP4 support, and full-fat DLSS 4—including Multi Frame Generation and Ray Reconstruction. The result? Sharper visuals, better frame rates, and performance that scales beautifully whether you're gaming at 1440p or pushing neural rendering in creative workflows.

Ray tracing gets a serious boost here, too. The 4th Gen RT Cores handle complex geometry without breaking a sweat, while NVIDIA Reflex 2 with Frame Warp keeps latency ultra-low, ideal for competitive shooters and fast-paced titles. Pair that with G-SYNC compatibility and VR readiness, and you’ve got a card that doesn’t just keep up, it leads.

Cooling? Dialled in. ASUS’s triple Axial-Tech fans push more air with less noise, backed by a vented backplate and a MaxContact heat spreader that shaves off critical degrees during heavy loads. The 0dB mode keeps things silent when idle, while dual ball bearings offer double the lifespan of standard fans. This isn’t just cooling—it's thermal engineering done right.

Durability and structure are equally refined. ASUS GPU Guard reinforces the PCB, the stainless steel I/O bracket resists corrosion, and a protective backplate shields your components. It’s tough, reliable, and made for the long haul.

Whether you're editing high-res footage, diving into the latest RTX-enabled games, or building a compact powerhouse, the ASUS RTX 5060 OC 8GB Graphics Card gives you the performance edge, without the size penalty.

FEATURES

• Built on NVIDIA Blackwell architecture with 630 AI TOPS for next-gen gaming, creation, and AI workloads
• DLSS 4 with Multi-Frame Generation and Ray Reconstruction for advanced AI-enhanced visuals
• 4th Gen Ray Tracing Cores deliver immersive lighting and high-complexity geometry rendering
• Triple Axial-Tech fans with 0dB mode for quiet efficiency during low-load operation
• MaxContact heat spreader and phase-change thermal pad for consistent, high-performance cooling
• Dual BIOS with Performance and Quiet modes for flexible thermal and acoustic control
• ASUS GPU Guard and stainless steel I/O bracket reinforce structural integrity and durability
• NVIDIA Studio drivers and 9th Gen NVENC support accelerated content creation and rendering
• Compact 2.5-slot SFF-Ready design ideal for space-conscious or mini-ITX builds
• GPU Tweak III and NVIDIA App offer real-time tuning, monitoring, and driver updates

SPECIFICATIONS

• Model: PRIME-RTX5060-O8G
• Graphic Engine: NVIDIA® GeForce RTX™ 5060
• AI Performance: 630 TOPs
• Bus Standard: PCI Express 5.0
• OpenGL: OpenGL®4.6
• Video Memory: 8GB GDDR7
• Engine Clock:
  • OC mode: 2595MHz
  • Default mode: 2565MHz (Boost Clock)
• CUDA Core: 3840
• Memory Speed: 28 Gbps
• Memory Interface: 128-bit
• Resolution: Digital Max Resolution 7680 x 4320
• Interface:
  • Yes x 1 (Native HDMI 2.1b)
  • Yes x 3 (Native DisplayPort 2.1b)
  • HDCP Support Yes (2.3)
• Maximum Display Support: 4
• NVlink/ Crossfire Support: No
• Software:
  • ASUS GPU Tweak III
  • MuseTree
  • GeForce Game Ready Driver
  • Studio Driver
    Please download all software from the support site.
• Dimensions: 26.83 x 12 x 5 cm
• Recommended PSU: 550W
• Power Connectors: 1 x 8-pin
• Slot: 2.5 Slot
• SFF Ready: Compatible

WHAT'S IN THE BOX

• ASUS PRIME GeForce RTX 5060 OC 8GB GDDR7 GPU x1
• Speedsetup Manual x1
• Thank You Card x1

Step into next-generation performance with the ASUS RTX 5060 Ti 16GB Graphics Card, a compact yet powerful solution designed for modern gaming and content creation. Built on NVIDIA’s Blackwell Architecture and engineered with 758 TOPS of AI performance, this SFF-ready graphics card merges cutting-edge visuals, efficiency, and reliability into a 2.5-slot form factor, ideal for compact PC builds without compromise.

Outfitted with 16GB of ultra-fast GDDR7 memory running at 28 Gbps, the ASUS RTX 5060 Ti 16GB Graphics Card delivers uncompromising performance across creative workloads and AAA gaming. With 4608 CUDA cores and a boost clock of up to 2602MHz in OC mode, it offers ultra-smooth rendering, lightning-fast responsiveness, and stunning realism powered by fourth-gen ray tracing and fifth-gen Tensor cores.

Connectivity is future-ready with support for up to four displays, including one HDMI 2.1b and three DisplayPort 2.1b outputs, enabling expansive 8K visuals at a maximum digital resolution of 7680 x 4320. Built on PCIe 5.0 and compatible with OpenGL 4.6, this GPU ensures broad system integration and performance headroom.

Thermal management is handled by three advanced Axial-tech fans with dual-ball bearings and a vented backplate, ensuring optimal airflow and durability. ASUS MaxContact technology improves heat transfer efficiency, reducing core temperatures by up to 2°C. 0dB fan mode ensures silent operation under light loads, while a Dual BIOS toggle lets you choose between high-performance and quiet computing modes.

Backed by ASUS GPU Tweak III, NVIDIA Studio Drivers, and NVIDIA Broadcast tools, the ASUS RTX 5060 Ti 16GB Graphics Card is a creator’s powerhouse and a gamer’s edge. The included Velcro hook & loop and Speedsetup manual simplify the build process, while the stainless-steel mounting bracket reinforces long-term durability.

Optimised for small form factor builds but engineered for big performance, the ASUS RTX 5060 Ti 16GB Graphics Card redefines what’s possible in compact gaming and creative rigs.

FEATURES:

• AI performance of 759 TOPS for advanced machine learning and neural rendering
• PCI Express 5.0 interface for maximum bandwidth and future-proof performance
• Boost clock up to 2602MHz (OC mode) for exceptional performance in demanding applications
• 4608 CUDA cores for smooth rendering, multitasking, and gaming performance
• NVIDIA DLSS 4 & Reflex 2 for AI-enhanced visuals and ultra-low latency gameplay
• Triple Axial-tech fans for improved airflow and thermal performance under load
• MaxContact technology reduces temperatures by up to 2°C, enhancing stability and performance
• 0dB fan mode for silent operation during light tasks or gaming sessions
• SFF-Ready 2.5-slot design ideal for compact builds with minimal space compromise
• Four display outputs (1 x HDMI 2.1b, 3 x DisplayPort 2.1b) for ultra-high-definition multi-monitor setups
• Dual BIOS for easy switching between Performance and Quiet modes based on user preference

SPECIFICATIONS:

• Graphic Engine: NVIDIA® GeForce RTX™ 5060 Ti
• AI Performance: 759 TOPs
• Bus Standard: PCI Express 5.0
• OpenGL: OpenGL®4.6
• Video Memory: 16GB GDDR7
• Engine Clock:
  • OC mode: 2602MHz
  • Default mode: 2572MHz (Boost Clock)
• CUDA Core: 4608
• Memory Speed: 28 Gbps
• Memory Interface: 128-bit
• Resolution: Digital Max Resolution 7680 x 4320
• Interface:
  • Yes x 1 (Native HDMI 2.1b)
  • Yes x 3 (Native DisplayPort 2.1b)
  • HDCP Support Yes (2.3)
• Maximum Display Support: 4
• NVlink/ Crossfire Support: No
• Software: ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver
• Dimensions: 30.4 x 12 x 5 cm
• Recommended PSU: 550W
• Power Connectors: 1 x 8-pin
• Slot: 2.5 Slot
• SFF Ready: Compatible

WHAT'S IN THE BOX:

• ASUS PRIME GeForce RTX 5060 Ti 16GB GDDR7 Graphics Card x1
• Speedsetup Manual x1
• ASUS Velcro Hook & Loop x1
• Thank You Card x1

Unleash next-generation gaming and AI acceleration with the NVIDIA® GeForce RTX™ 5070 Ti 16GB GDDR7 Graphics Card, engineered for ultra-high refresh gameplay, advanced content creation and serious AI workloads. Powered by 8,960 CUDA cores and delivering up to 1406 TOPs of AI performance, this PCI Express 5.0 graphics card is built for enthusiasts who demand exceptional frame rates at 1440p and 4K — with support for up to 8K (7680 x 4320) digital resolution. Whether you're upgrading your high-performance gaming rig or building a future-ready workstation, the RTX 5070 Ti offers cutting-edge architecture, ultra-fast GDDR7 memory and advanced ray tracing capabilities to handle the latest AAA titles and demanding creative applications with ease.

With a factory overclock reaching up to 2527MHz in OC mode and 16GB of 28Gbps GDDR7 memory on a 256-bit interface, this GPU delivers immense bandwidth for smoother gameplay, faster rendering and accelerated AI-driven tasks. HDMI 2.1b and DisplayPort 2.1b connectivity ensure compatibility with modern high-refresh gaming monitors and ultra-high-resolution displays, while HDCP 2.3 support enables seamless 4K and 8K streaming. Designed in a sleek black 2.5-slot form factor and SFF-ready compatible, it fits perfectly into performance-focused builds across South Africa — from competitive esports setups to professional creative studios.

FEATURES:

• Boost Clock up to 2527MHz (OC Mode)
• Powered by NVIDIA® GeForce RTX™ 5070 Ti graphics engine
• 16GB GDDR7 memory with ultra-fast 28Gbps memory speed
• 1406 TOPs AI performance for advanced AI-enhanced workflows
• PCI Express 5.0 interface for next-gen bandwidth
• Supports up to 4 displays with HDMI 2.1b & DisplayPort 2.1b
• Axial-tech fans with longer blades to improve airflow and dispersion
• Dual-ball fan bearings giving you up to twice the lifespan of sleeve bearings
• Phase-change GPU thermal pad for optimal heat dissipation and GPU longevity

SPECIFICATIONS:

• Graphic Engine: NVIDIA® GeForce RTX 5070 Ti
• AI Performance: 1406 TOPs
• Bus Standard: PCI Express 5.0
• OpenGL: OpenGL®4.6
• Video Memory: 16GB GDDR7
• Engine Clock:
  • OC mode: 2527MHz
  • Default mode: 2497MHz (Boost Clock)
• CUDA Core: 8960
• Memory Speed: 28 Gbps
• Memory Interface: 256-bit
• Resolution: Digital Max Resolution 7680 x 4320
• Interface:
  • Yes x 1 (Native HDMI 2.1b)
  • Yes x 3 (Native DisplayPort 2.1b)
  • HDCP Support Yes (2.3)
• Maximum Display Support: 4
• NVlink/ Crossfire Support: No
• Recommended PSU: 750W
• Power Connectors: 1 x 16-pin
• Slot: 2.5 slot
• SFF Ready: Compatible
• Colour: Black
• Software: ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
• Product Dimensions: 30.4 x 12.6 x 5 cm

WHAT'S IN THE BOX:

• ASUS PRIME GeForce RTX 5070 Ti 16GB GDDR7 OC Edition Graphics Card - Black x1
• Speedstep Manual x1
• Asus Velcro Hook and Loop x1
• Adapter Cable (1 to 3) x1

Experience next-generation power and precision with the ASUS Prime GeForce RTX 5080 OC Edition Graphics Card, expertly engineered for elite gamers and creative professionals. Built on NVIDIA’s latest architecture, this premium GPU delivers outstanding AI acceleration, exceptional thermal performance, and cutting-edge display capabilities, all housed in a compact, SFF-Ready 2.5-slot design for maximum build compatibility.

Equipped with 16GB of ultra-fast GDDR7 video memory and a robust 256-bit memory interface, the ASUS Prime GeForce RTX 5080 OC Edition Graphics Card runs at memory speeds of up to 30 Gbps. With a GPU boost clock of up to 2685 MHz in OC mode and 10752 CUDA cores, it offers uncompromising speed for 4K gaming, real-time ray tracing, and high-throughput content rendering. Supporting PCIe 5.0 and OpenGL 4.6, this card ensures optimal performance across modern platforms and software environments.

AI performance is at the forefront, delivering up to 1827 TOPs, enhanced further with NVIDIA DLSS 4 and fifth-gen Tensor Cores for real-time frame generation and AI-powered graphics enhancement. The card supports a maximum digital resolution of 7680 x 4320 and accommodates up to four simultaneous displays via one native HDMI 2.1b and three DisplayPort 2.1b outputs. HDCP 2.3 support is included for protected content playback.

Thermal management is handled by triple Axial-tech fans with dual-ball bearings for extended durability, backed by a vapour chamber, vented backplate, and MaxContact technology for superior heat transfer. Silent operation is achieved with 0dB technology, while Dual BIOS allows users to select between Quiet and Performance modes based on their workload.

The ASUS Prime GeForce RTX 5080 OC Edition Graphics Card includes essential accessories such as a Velcro hook & loop, adapter cable, and Speedsetup manual. Supported by ASUS GPU Tweak III, MuseTree, and the latest Game Ready and Studio Drivers, it is an ideal choice for users who demand high-performance computing in a compact footprint.

Build small. Play big. Create without limits. Choose the ASUS Prime GeForce RTX 5080 OC Edition Graphics Card for ultimate power, reliability, and creative freedom.

FEATURES:

• Powered by NVIDIA® GeForce RTX™ 5080 with 16GB GDDR7 for next-gen gaming and content creation
• SFF-Ready 2.5-slot design ensures wide compatibility with compact, high-performance PC builds
• Fifth-gen Tensor Cores and DLSS 4 enable AI-enhanced graphics and ultra-realistic visuals
• Fourth-gen Ray Tracing Cores deliver true-to-life lighting and cinematic rendering
• Triple Axial-tech fans with dual-ball bearings for improved airflow and extended durability
• Vapour chamber and vented backplate maximise thermal efficiency under heavy workloads
• MaxContact GPU cooling increases heat transfer surface by 5% for lower core temperatures
• 0dB technology enables silent operation during low-load tasks and light gaming
• Dual BIOS switch offers instant toggling between Performance and Quiet operating modes
• Supports up to four displays via HDMI 2.1b and DisplayPort 2.1b with 8K resolution output
• ASUS GPU Tweak III and MuseTree software for advanced tuning and AI-driven creative tools
• Backed by premium materials, including a stainless-steel bracket and reinforced protective backplate

SPECIFICATIONS:

• Graphic Engine: NVIDIA® GeForce RTX™ 5080
• AI Performance: 1827 TOPs
• Bus Standard: PCI Express 5.0
• OpenGL: OpenGL®4.6
• Video Memory: 16GB GDDR7
• Engine Clock:
  • OC mode: 2685 MHz
  • Default mode: 2655 MHz (Boost Clock)
• CUDA Core: 10752
• Memory Speed: 30 Gbps
• Memory Interface: 256-bit
• Resolution: Digital Max Resolution 7680 x 4320
• Interface:
  • Yes x 1 (Native HDMI 2.1b)
  • Yes x 3 (Native DisplayPort 2.1b)
  • HDCP Support Yes (2.3)
• Maximum Display Support: 4
• NVlink/ Crossfire Support: No
• Software: ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver
• Dimensions: 30.4 x 12.6 x 5 cm
• Recommended PSU: 850W
• Power Connectors: 1 x 16-pin
• Slot: 2.5 Slot
• SFF Ready: Compatible

WHAT'S IN THE BOX:

• ASUS PRIME GeForce RTX 5080 16GB OC Edition GDDR7 Graphics Card x1
• Speedsetup Manual x1
• ASUS Velcro Hook & Loop x1
• Thank You Card x1
• Adapter Cable (1 to 3) x1​

Push the limits of gaming and content creation with the ASUS PRIME GeForce RTX™ 5070 12GB GDDR7 OC 12GB, a factory-overclocked graphics card engineered for performance, efficiency, and reliability. Powered by NVIDIA’s cutting-edge Blackwell architecture, this SFF-Ready (Small Form Factor) GPU fits seamlessly into compact builds without compromising power. Whether you’re a competitive gamer, a 3D artist, or a video editor, this card delivers AI-enhanced graphics, next-gen ray tracing, and ultra-responsive gameplay.

Equipped with 12GB of GDDR7 memory, Fifth-Gen Tensor Cores, and DLSS 4 with Multi-Frame Generation, the PRIME GeForce RTX™ 5070 enables lightning-fast frame rates and incredible image fidelity. Its Axial-Tech fans, dual-ball fan bearings, and phase-change thermal pad ensure superior cooling, maximizing GPU longevity even under heavy loads. Plus, 0dB technology allows silent operation during light workloads.

Performance meets flexibility with Dual BIOS, giving users the option to prioritize low temperatures or reduced noise. Meanwhile, MaxContact technology enhances thermal efficiency, while a vented backplate and stainless steel bracket add structural durability. ASUS’s Auto-Extreme Technology ensures top-tier build quality, reducing thermal strain for long-term reliability.

Designed to power AI-driven workflows, ray-traced gaming, and professional content creation, the ASUS PRIME GeForce RTX™ 5070 also integrates seamlessly with NVIDIA Studio tools, Reflex 2 for ultra-low latency, and G-SYNC for smooth visuals. Pair it with an Antec GSK 850W GEN5 for optimal power efficiency and stability.

FEATURES:

• SFF-Ready 2.5-Slot Design : Optimized for small-form-factor (SFF) builds
• 12GB GDDR7 Memory: High-speed VRAM ensures smooth performance in 4K gaming, 3D rendering, and video editing
• Axial-Tech fan upgrades: Longer blades and enhanced airflow design improve cooling efficiency and performance
• 0dB Technology: Fans remain off during light workloads, ensuring silent operation below 50°C
• Phase-Change GPU Thermal Pad: Enhances heat dissipation and prolongs GPU lifespan under heavy loads
• Dual-Ball Fan Bearings: Increases fan lifespan up to twice that of traditional sleeve-bearing designs
• Dual BIOS Switch: Choose between Performance mode for lower temperatures or Quiet mode for reduced noise
• MaxContact Technology: Improves heat spreader surface area for better thermal transfer and lower temperatures
• Vented Backplate & Stainless Steel Bracket: Enhances durability, stability, and cooling efficiency

SPECIFICATIONS:

• Graphics Processing Unit: NVIDIA® GeForce RTX™ 5070
• AI Performance: 1005 TOPs
• Bus Standard: PCI Express 5.0
• OpenGL: OpenGL®4.6
• Video Memory: 12GB GDDR7
• Engine Clock:
  • OC mode: 2587MHz
  • Default mode: 2557MHz (Boost Clock)
  • OC mode: 2587MHz
  • Default mode: 2557MHz (Boost Clock)
• CUDA Core: 6144
• Memory Speed: 28Gbps
• Memory Interface: 192-bit
• Resolution: Digital Max Resolution 7680 x 4320
• Interface
  • Yes x 1 (Native HDMI 2.1b)
  • Yes x 3 (Native DisplayPort 2.1b)
  • HDCP Support Yes (2.3)
  • Maximum Display Support: 4
• NVlink/ Crossfire Support: No
• Recommended PSU: 750W
• Power Connectors: 16-pin x1
• Slot: 2.5 Slot
• SFF Ready: Compatible
• Colour: Black
• Product Dimensions: 30.4 x 12.6 x 5 cm

WHAT’S IN THE BOX:

• ASUS PRIME GeForce RTX™ 5070 12GB GDDR7 OC 12GB Graphics Card - Black x1
• User Manual x1

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th, 13th & 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.

Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

The Asus Prime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS. Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

Prime H610 series are built to handle the additional cores and increased bandwidth of 14th, 13th & 12th Generation Intel® processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

Comprehensive memory tuning options are the cornerstone of PRIME motherboards. With the PRIME H610M-K ARGB, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked. For those who want to fly past stock DDR5 speeds, the PRIME H610M-K ARGB is primed and ready for enthusiast-grade kits courtesy of Intel® Extreme Memory Profile (XMP) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.

PRIME H610M-K ARGB offers one M.2 slot that supports data-transfer speeds of up to 32Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives. Prime H610 motherboards are designed specifically for 14th, 13th & 12th Generation Intel® Core™ CPUs and offer PCIe 4.0 connectivity for GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.

FEATURES:

• Micro-ATX Form Factor
• Intel® H610 Chipset
• Supports Intel® Core™ 14th & 13th Gen Desktop Processors
• Support for DDR5 up to 5600MT/s, XMP supported
• PCIe 4.0 support for graphics cards
• 1Gb Ethernet support for faster data transfer
• Aura Sync RGB Lighting

SPECIFICATIONS:

• Socket: Intel Socket LGA1700
• CPU: Supports Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
• Chipset: Intel® H610 Chipset
• DDR5 Memory: Support DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory
• Memory Channel: Dual
• DIMM Slots: 2
• Max Memory (GB): 96
• PCI-E 4.0 x16: 1
• PCI-E 3.0 x1: 1
• SATA 6G: 4
• M.2 Slot: 1
• LAN: Realtek 1Gb Ethernet
• USB Ports Rear:
  • 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
• USB Ports Front:
  • 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
  • 1 x USB 2.0 header supports 1 additional USB 2.0 port
• Audio ports (Rear): Realtek 7.1 Surround Sound High Definition Audio CODEC
• HDMI: 1
• VGA: 1
• DirectX: 12
• Form Factor: Micro-ATX
• Operating System: Support for Windows® 11, Windows® 10 64-bit

WHAT’S IN THE BOX:

• Asus PRIME H610M-K ARGB Intel LGA1700 M-ATX Motherboard – Black x1
• SATA Cables x2
• I/O Shield x1
• M.2 Anchor x1
• User Guide x1

Quick Specs

• Supports the latest Intel LGA1851 processors for cutting-edge performance.
• Experience faster data transfer speeds with a PCIe 4.0 slot.
• Enjoy stable wireless connections with built-in Wi-Fi.
• Benefit from user-friendly PC building with SafeSlot Core+ and Q-LED Core.
• Achieve high-fidelity audio with advanced audio features.

Built for the latest Intel CPUs

Designed to support the newest Intel LGA1851 processors, this micro ATX motherboard ensures you're ready for the next generation of computing. Whether you're building a gaming rig or a workstation, this motherboard provides a solid foundation for your system.

Fast and reliable connectivity

Featuring a PCIe 4.0 slot, the Asus PRIME H810M-A WIFI micro ATX motherboard delivers lightning-fast data transfer speeds for your graphics card and other expansion cards. The integrated Wi-Fi ensures stable and reliable wireless connections, perfect for streaming, gaming, and video conferencing.

User-friendly design for easy PC building

The SafeSlot Core+ and Q-LED Core features make PC building easier and safer. SafeSlot Core+ reinforces the PCIe slot to prevent damage from heavy graphics cards, while Q-LED Core provides visual cues to help diagnose and troubleshoot common issues during the build process. This DDR5 motherboard also simplifies upgrades.

Immersive audio experience

With its advanced audio features, this DDR5 motherboard delivers high-fidelity sound for an immersive gaming and multimedia experience. Enjoy clear and crisp audio whether you're using headphones or speakers.

Durable and reliable performance

Built with high-quality components and rigorous testing, the Asus PRIME H810M-A WIFI DDR5 motherboard ensures long-lasting durability and reliable performance. This micro ATX motherboard is designed to handle the demands of modern computing, providing a stable and efficient platform for your system.

FEATURES:

• Intel H810M Chipset
• Supports Intel® Core™ Ultra Processors (Series 2)
• Supports DDR5 Memory, Dual Channel DDR5 6400+ MT/s (OC) 128GB max capacity
• Ultra-fast Wi-Fi 6 connectivity with Realtek 1G Ethernet LAN
• Lightning Fast Game experience: PCIe 4.0 slot support
• EZ PC DIY: SafeSlot Core+ and Q-LED Core for easy usage
• Aura Sync support for full RGB lighting control

SPECIFICATIONS:

• CPU:
  • Support Intel® Core™ Ultra Processors (Series 2) , LGA1851
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  • * Refer to https://www.asus.com/support/download-center/ for CPU support list.
  • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset: Intel® H810 Chipset
• Memory:
  • 2 x DIMM slots, max. 128GB, DDR5
  • Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
  • Dual channel memory architecture
  • DIMM Fit
  • Supports Intel® Extreme Memory Profile (XMP) memory module
  • ASUS Enhanced Memory Profile II (AEMP II)
  • *Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
  • ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
• Graphics:
  • 1 x DisplayPort**
  • 1 x HDMI™ port***
  • * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  • ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  • *** Supports 4K@60Hz as specified in HDMI 2.1.
  • **** VGA resolution support depends on processors' or graphic cards' resolution.
• Expansion Slots:
  • Intel® Core™ Ultra Processors (Series 2)
  • 1 x PCIe 4.0 x16 slot
  • Intel® H810 Chipset
  • 1 x PCIe 4.0 x1 slot
  • To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
• Storage:
  • Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
  • Intel® H810 Chipset
  • M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
  • 4 x SATA 6Gb/s ports
• Ethernet:
  • 1 x Intel® 1Gb Ethernet port*
  • ASUS LANGuard
  • *With Intel® I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.
• Wireless & Bluetooth:
  • Wi-Fi 6
  • 1x1 Wi-Fi 6 (802.11ax)
  • Supports 2.4/5GHz frequency band
  • Bluetooth® v5.3*
  • * The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
• Rear USB (Total 6 ports):
  • 2 x USB 10Gbps ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 5 ports)
  • 1 x USB 5Gbps connector (supports USB Type-C®)*
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 1 x USB 2.0 header supports 2 additional USB 2.0 ports
  • * USB Type-C® power delivery output: max. 5V/3A
  • ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
• Audio:
  • Realtek 7.1 Surround Sound High Definition Audio CODEC*
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
• Audio Features:
  • Audio Shielding
  • Premium audio capacitors
  • Dedicated audio PCB layers
  • * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
• Back Panel I/O Ports:
  • 2 x USB 10Gbps ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI™ port
  • 1 x Wi-Fi module
  • 1 x Intel® 1Gb Ethernet port
  • 3 x Audio jacks
  • 1 x PS/2 keyboard/mouse combo port
• Operating System: Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)
• Form Factor: Micro ATX

WHAT’S IN THE BOX:

• Asus PRIME H810M-A WIFI LGA1851 Micro ATX Motherboard – Black x1
• Asus Wi-Fi Moving Antenna x1
• SATA Cables x2
• I/O Shield x1
• Screw Package for M.2 SSD x1
• Quick Start Guide x1

Why Asus?

Asus is a globally recognised leader in motherboards, renowned for quality, innovation, and performance. Choosing an Asus micro ATX motherboard means investing in a reliable foundation for your PC, backed by industry-leading support and a commitment to excellence that South African gamers and professionals trust. This DDR5 motherboard provides a solid base for any modern build.

Level up your custom PC build with the ASUS Prime LC 240 ARGB liquid CPU cooler – an all-in-one cooling solution engineered for performance, style, and ease of installation. Whether you’re building from scratch or upgrading your current setup, this cooler is designed to meet the demands of modern processors while enhancing your rig’s aesthetics.

The specially designed copper CPU contact plate provides a larger surface area for heat transfer, enabling faster and more efficient thermal dissipation. This ensures your CPU stays cool and stable under heavy workloads, reducing the risk of thermal throttling and maintaining peak performance.

At the centre of the water block is a customisable infinity mirror lens, delivering immersive ARGB lighting with captivating visual depth. This feature pairs seamlessly with Prime motherboards and adds a futuristic edge to your PC’s overall look.

The ASUS Prime LC 240 ARGB liquid CPU cooler includes high-performance 24 cm ARGB fans pre-installed onto the radiator. With speeds ranging from 600 to 2200 RPM and an airflow of 75.7 CFM, these fans offer powerful, quiet cooling. The single Y-cable design simplifies the installation process by combining fan and lighting controls for cleaner cable management.

Durability is built in with reinforced, sleeved rubber tubing measuring 40 cm, giving you greater installation flexibility and long-term reliability. The cooler is fully compatible with a broad range of CPU sockets, including Intel® LGA 1851, 1700, 1200, 115X and AMD AM5, AM4, ensuring wide system support.

For builders prioritising both aesthetics and thermal performance, the ASUS Prime LC 240 ARGB liquid CPU cooler delivers on all fronts. Backed by a 6-year warranty and AURA Sync support, it’s the ideal solution for users who demand high-efficiency cooling without compromising on design.

FEATURES:

• Customisable infinity mirror lenses for stunning ARGB lighting effects and futuristic build aesthetics
• Enlarged copper CPU contact plate enhances heat transfer for superior thermal performance
• Pre-installed 12 cm ARGB fans with a 600–2200 RPM range for powerful and efficient cooling
• Single Y-cable design for simplified fan and lighting connectivity
• Reinforced sleeved tubing (40 cm) for improved durability and flexible installation
• High airflow performance with 75.7 CFM and 3.2 mmH₂O static pressure
• Compatible with Intel® LGA 1851, 1700, 1200, 115X and AMD AM5, AM4 sockets
• Supports AURA Sync for seamless integration with other ARGB-enabled components
• Quiet operation with a maximum noise level of 34 dB(A)
• Premium radiator built with 27.7 x 12 x 2.7 cm dimensions for efficient heat dissipation
• PWM/DC control support ensures precise fan speed adjustments
• Backed by a 6-year warranty for long-term reliability and peace of mind

SPECIFICATIONS:

• Water Block
• Water block dimension: 6.51 x 6.0.6 x 6.85 cm
• Block Material (CPU Plate): Copper
• Radiator
• Radiator Dimension: 27.7 x 12 x 2.7 cm
• Tube: Sleeved Rubber tube
• Tube Length: 40 cm
• Fans
• Dimension:24 x 12.3 x 2.5 cm
• Size: 2 x Fan Slots (12cm)
• Speed: 600 - 2200 RPM +/- 10%
• Control Mode: PWM/ DC
• Noise: 34 dB(A)
• Air Flow: 75.7 CFM
• Static Pressure: 3.2 mmH2O
• Special Features
• AURA Sync Support: Yes
• Compatibility
• Intel LGA 1851, 1700, 1200, 115x
• AMD: AM5,AM4

WHAT'S IN THE BOX:

• ASUS Prime LC 240 ARGB Liquid CPU Cooler x1
• Quick Start Guide x1
• Accessory Pack of Screws and Brackets x1
• CPU Liquid Cooler (pre-applied thermal compound) x1

Level up your custom PC build with the Prime LC 360 ARGB liquid CPU cooler – an all-in-one cooling solution engineered for performance, style, and ease of installation. Whether you’re building from scratch or upgrading your current setup, this cooler is designed to meet the demands of modern processors while enhancing your rig’s aesthetics.

The specially designed copper CPU contact plate provides a larger surface area for heat transfer, enabling faster and more efficient thermal dissipation. This ensures your CPU stays cool and stable under heavy workloads, reducing the risk of thermal throttling and maintaining peak performance.

At the centre of the water block is a customisable infinity mirror lens, delivering immersive ARGB lighting with captivating visual depth. This feature pairs seamlessly with Prime motherboards and adds a futuristic edge to your PC’s overall look.

The ASUS Prime LC 360 ARGB liquid CPU cooler includes high-performance 36 cm ARGB fans pre-installed onto the radiator. With speeds ranging from 600 to 2200 RPM and an airflow of 75.7 CFM, these fans offer powerful, quiet cooling. The single Y-cable design simplifies the installation process by combining fan and lighting controls for cleaner cable management.

Durability is built in with reinforced, sleeved rubber tubing measuring 40 cm, giving you greater installation flexibility and long-term reliability. The cooler is fully compatible with a broad range of CPU sockets, including Intel® LGA 1851, 1700, 1200, 115X and AMD AM5, AM4, ensuring wide system support.

For builders prioritising both aesthetics and thermal performance, the Asus Prime LC 360 ARGB liquid CPU cooler delivers on all fronts. Backed by a 6-year warranty and AURA Sync support, it’s the ideal solution for users who demand high-efficiency cooling without compromising on design.

FEATURES:

• Customisable infinity mirror lenses for stunning ARGB lighting effects and futuristic build aesthetics
• Enlarged copper CPU contact plate enhances heat transfer for superior thermal performance
• Pre-installed 36 cm ARGB fans with a 600–2200 RPM range for powerful and efficient cooling
• Single Y-cable design for simplified fan and lighting connectivity
• Backed by a 6-year warranty for long-term reliability and peace of mind
• Reinforced sleeved tubing (40 cm) for improved durability and flexible installation
• High airflow performance with 75.7 CFM and 3.2 mmH₂O static pressure
• Compatible with Intel® LGA 1851, 1700, 1200, 115X and AMD AM5, AM4 sockets
• Supports AURA Sync for seamless integration with other ARGB-enabled components
• Quiet operation with a maximum noise level of 34 dB(A)
• Premium radiator built with 39.7 x 12 x 2.7 cm dimensions for efficient heat dissipation
• PWM/DC control support ensures precise fan speed adjustments

SPECIFICATIONS:

• Water Block
• Water block dimension: 6.51 x 6.0.6 x 6.85 cm
• Block Material (CPU Plate): Copper
• Radiator
• Radiator Dimension: 39.7 x 12 x 2.7 cm
• Tube: Sleeved Rubber tube
• Tube Length: 40 cm
• Fans
• Dimension: 36 x 12.3 x 2.5 cm
• Size: 3 x Fan Slots (12cm)
• Speed: 600 - 2200 RPM +/- 10%
• Control Mode: PWM/ DC
• Noise: 34 dB(A)
• Air Flow: 75.7 CFM
• Static Pressure: 3.2 mmH2O
• Special Features
• AURA Sync Support: Yes
• Compatibility
• Intel LGA 1851, 1700, 1200, 115x
• AMD: AM5,AM4

WHAT'S IN THE BOX:

• ASUS Prime LC 360 ARGB Liquid CPU Cooler x1
• Quick Start Guide x1
• Accessory Pack of Screws and Brackets x1
• CPU Liquid Cooler (pre-applied thermal compound) x1

The ASUS Prime Radeon™ RX 9070 XT OC Edition 16GB GDDR6 graphics card is designed to deliver primal performance, combining advanced cooling, high-speed memory, and robust construction for gaming and content creation.

Featuring a 2.5-slot design, this card is optimized for efficient heat dissipation, with a layout that allows the triple Axial-tech fans to leverage chassis side-panel ventilation. The dual-ball bearing fans ensure durability and longevity, while 0dB cooling technology allows the fans to stop when GPU temperatures drop below 55°C, providing silent operation for lighter workloads.

For extreme performance, the sturdy metal vented backplate enhances airflow, reducing thermal strain and preventing overheating. A phase-change GPU thermal pad further improves heat transfer, ensuring stable operation under intense workloads.

Equipped with 16GB of GDDR6 VRAM, a 256-bit memory interface, and 20Gbps memory speed, the RX 9070 XT OC Edition is built for ultra-high resolutions and smooth gameplay. Powered by PCI Express® 5.0, it delivers blazing-fast bandwidth, while support for HDMI 2.1b and DisplayPort 2.1a allows for high-refresh-rate gaming at 4K and beyond.

Users can choose between Performance Mode for lower temperatures and Quiet Mode for reduced noise levels without compromising performance. ASUS Auto-Extreme Technology ensures a precision-engineered build, improving reliability while reducing environmental impact.

The ASUS Prime Radeon™ RX 9070 XT OC Edition is a powerhouse designed for next-level gaming, streaming, and content creation.

FEATURES:

• 16GB GDDR6
• 20Gbps Memory Speed
• 256-bit Memory Interface
• Triple Axial-Tech Fans
• Sturdy Metal Vented Backplate
• 2.5 Slot Design
• 0dB Cooling Technology

SPECIFICATIONS:

• Graphic Engine: AMD Radeon™ RX 9070 XT
• Memory Speed: 20Gbps​
• Interface:
  • Yes x 1 (Native HDMI 2.1b)
  • Yes x 3 (Native DisplayPort 2.1a)
  • HDCP Support Yes (2.3)
• Bus Standard: PCI Express® 5.0
• OpenGL: OpenGL®4.6
• Video Memory: 16GB GDDR6
• Engine Clock: TBD
• Stream Processors: 4096
• Memory Interface: 256-bit
• Resolution: Digital Max Resolution 7680 x 4320
• Maximum Display Support: 4
• NVlink/ Crossfire Support: No
• Recommended PSU: 750W
• Power Connectors: 3 x 8-pin
• Slot: 2.5 Slot
• Product Dimensions: 31.2 x 13 x 5 cm

WHAT’S IN THE BOX:

• Asus Prime Radeon RX 9070 XT OC Edition 16GB GDDR6 Graphics Card x1
• Speedsetup Manual x1

The ASUS PRIME Z890-P WIFI ATX Motherboard is expertly engineered to unlock the full potential of the latest Intel® Core™ Ultra Processors (Series 2) on the LGA1851 platform. With robust power delivery, advanced thermal architecture, and intelligent performance tuning, this motherboard is tailored for high-performance computing, gaming, and demanding AI-driven workflows. It’s designed to be Advanced AI PC-ready, featuring integrated ASUS AI Solutions including AI Advisor, AI Cooling II, and AI Networking II—empowering users with smart automation for peak PC efficiency and stability.

Thanks to support for Intel’s integrated Neural Processing Unit (NPU), the PRIME Z890-P WIFI takes AI acceleration to the next level with NPU Boost, enabling up to 24% performance gains with a single click in BIOS. Memory tuning is redefined with ASUS Enhanced Memory Profile III (AEMP III) and DIMM Fit, which dynamically optimize cutting-edge DDR5 modules up to 8666+ MT/s (OC) for unbeatable stability and responsiveness. Whether you're overclocking, editing 4K video, or running AI-enhanced tasks, this board ensures seamless operation and exceptional speed.

Equipped with four M.2 slots, including one ultra-fast PCIe 5.0 slot supporting up to 128Gbps, and three PCIe 4.0 slots at 64Gbps, the PRIME Z890-P WIFI delivers blazing boot times and quick access to data-heavy applications. The inclusion of Thunderbolt™ 4 and Wi-Fi 7 offers premium connectivity options for high-speed peripherals, external 8K displays, and the latest networking gear. Backed by Realtek 2.5Gb Ethernet and ASUS LANGuard, the board ensures low-latency and high-bandwidth wired connections for streaming, gaming, and content creation.

Thermal management is handled with precision through a suite of VRM heatsinks, a passive chipset cooler, hybrid fan headers, and an AiO pump header, all adjustable via Fan Xpert 4 with AI Cooling II. ASUS Q-Design innovations and intuitive BIOS tools streamline the building process, making it easier for enthusiasts and beginners alike. Customization is made seamless with Aura Sync RGB lighting and Gen 2 addressable headers, allowing users to coordinate lighting effects across compatible components. Whether you're assembling a cutting-edge AI workstation or a futureproof gaming setup, the PRIME Z890-P WIFI delivers intelligent performance with effortless style.

FEATURES:

• Intel® LGA 1851 socket: Ready for Intel® Core™ Ultra Processors (Series 2)
• Next-gen connectivity: Wi-Fi 7, M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, Thunderbolt™ 4, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®
• ASUS Enhanced Memory Profile III(AEMPIII) for enhanced DDR5 performance
• ASUS Q-Design and EZ PC DIY for easily connecting and customizing your hardware
• Comprehensive Cooling: VRM heatsink, Passive chipset heatsink, hybrid fan headers and AiO pump header
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers, easily synced with Aura Sync-capable hardware

SPECIFICATIONS:

• Socket: LGA1851
• CPU: Supports Intel® Core™ Ultra Processors (Series 2), LGA1851, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
• Chipset: Intel® Z890 Chipset
• DDR5 Memory: Support 8666+MT/s (OC) Non-ECC, Un-buffered Memory, Supports Intel® Extreme Memory Profile (XMP), ASUS Enhanced Memory Profile III(AEMPIII)
• Memory Channel: Dual
• DIMM Slots: 4
• Max Memory (GB): 256
• PCI-E 5.0 x16: 1
• PCI-E 4.0 x16: 3
• SATA 6G: 4
• M.2 Slot: 4
• LAN: Realtek 2.5Gb Ethernet, ASUS LANGuard
• Wireless and Bluetooth: Wi-Fi 7, 2×2 Wi-Fi 7 (802.11 be), Supports 2.4/5/6GHz frequency band, Bluetooth v5.4
• USB Ports Rear:
  • 1 x Thunderbolt™ 4 port (1 x USB Type-C®)
  • 1 x USB 10Gbps port (1 x Type-A)
  • 2 x USB 5Gbps ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
• USB Ports Front:
  • 1 x USB 10Gbps connector (supports USB Type-C®)
  • 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Audio ports (Rear): Realtek 7.1 Surround Sound High Definition Audio CODEC
• HDMI: 1
• DisplayPort: 1
• Intel® Thunderbolt™ 4 (video output): 1
• DirectX: 12
• Form Factor: ATX
• Operating System: Support for Windows 11 (22H2 & later)

WHAT’S IN THE BOX:

• Asus PRIME Z890-P WIFI ATX Gaming Motherboard – Black x1
• SATA 6Gb/s Cables x2
• Asus Wi-Fi Q-Antenna x1
• M.2 Rubber Package x1
• Screw Packaging for M.2 SSD x2
• Quick Start Guide x1

Quick Specs

• Supports AMD sTR5 processors for up to 96 cores, facilitating advanced computational tasks.
• Optimised for artificial intelligence and machine learning applications.
• Features three PCIe 5.0 x16 slots for next-generation expansion cards.
• Includes 10 Gb and 2.5 Gb LAN ports for reliable, high-speed network access.
• Designed for continuous, 24/7 operation with robust power and thermal management.

The Asus Pro WS TRX50-SAGE WIFI A sTR5 CEB Motherboard provides an unwavering foundation for advanced computing. This powerful AMD workstation motherboard is meticulously crafted for engineers, data scientists, and content creators across South Africa. It excels in navigating the complexities of advanced AI, machine learning, and high-fidelity rendering tasks. Prepare your system for today’s most demanding computational challenges and tomorrow’s innovations. This robust platform ensures ambitious projects meet unparalleled processing power and system stability. The TRX50 SAGE WIFI A sets new industry standards for professional computing. This Asus Pro WS TRX50-SAGE truly is the core of any high-performance build. This TRX50 SAGE WIFI A motherboard delivers unmatched speed and reliability.

Unlock Peak Performance

At its core, the Asus Pro WS TRX50-SAGE is engineered to eliminate performance bottlenecks. It supports AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and Ryzen™ Threadripper™ 9000 & 7000 Series Processors. This allows for up to 96-core CPUs. The TRX50 SAGE WIFI A motherboard offers extensive connectivity. Three PCIe 5.0 x16 slots provide incredible bandwidth for GPUs and accelerators. Two USB4 (40Gbps) ports ensure rapid data transfer. Dual 10 Gb and 2.5 Gb LAN ports provide steadfast, high-speed networking. These are essential for large dataset transfers and collaborative environments. Four integrated M.2 slots, along with SlimSAS NVMe support, deliver expansive, ultra-fast storage capabilities. This enables quick access to critical files and applications. For any demanding professional, the Asus Pro WS TRX50-SAGE delivers superior computing power. This makes it an ideal AMD workstation motherboard for serious tasks. The TRX50 SAGE WIFI A ensures smooth, efficient workflows, making it a premier TRX50 SAGE WIFI A choice for high-end systems.

Robust Engineering for Continuous Workstation Operation

The value of the Asus Pro WS TRX50-SAGE WIFI A lies in its enduring reliability and cutting-edge features. It is built with 20 power stages, supported by two 8-pin CPU power connectors. This ensures stable power delivery, even under extreme loads. Massive VRM cooling, dedicated chipset, and M.2 heatsinks, alongside M.2 thermal pads, maintain optimal temperatures. This prevents thermal throttling and prolongs component lifespan. This robust thermal and power design signifies a commitment to durability. It makes this AMD workstation motherboard suitable for 24/7 operation in mission-critical environments. Professionals can invest with confidence. They know their workstation rests on a foundation built for longevity and peak performance provided by the TRX50 SAGE WIFI A. This Asus Pro WS TRX50-SAGE truly stands apart as a reliable AMD workstation motherboard.

Intuitive Management

For professionals requiring precise control and peace of mind, this TRX50 SAGE WIFI A motherboard offers server-grade IPMI remote management capabilities. Hardware and software support for ASUS IPMI expansion cards, coupled with ASUS Control Center Express, provide effortless real-time monitoring and comprehensive management. This feature makes the board highly desirable for managed IT environments and remote workstation setups in South Africa. Furthermore, Asus’s rigorous validation process ensures trusted stability. Extensive compatibility testing and a comprehensive Qualified Vendor List (QVL) underscore its dependability. This Asus Pro WS TRX50-SAGE platform is meticulously verified. It delivers consistent performance. Users can focus on their work without system integrity concerns, confident in their AMD workstation motherboard.

FEATURES:

• Prepare for advanced artificial intelligence and machine learning workloads, leveraging dedicated hardware support.
• Harness the full potential of up to 96-core AMD sTR5 CPUs, facilitating complex computational tasks with ease.
• Maximise memory performance with support for up to 1TB ECC R-DIMM DDR5 memory modules, ensuring data integrity.
• Maintain optimal system temperatures through robust VRM cooling, chipset, and M.2 heatsinks for sustained peak operation.
• Experience rapid data transfers with three PCIe 5.0 x16 slots and two USB4 (40Gbps) ports for cutting-edge expansion.
• Ensure reliable network speeds with integrated 10 Gb and 2.5 Gb LAN ports, crucial for demanding professional environments.
• Accelerate storage access with four dedicated M.2 slots and SlimSAS NVMe support, providing ample ultra-fast storage.
• Manage your system remotely using server-grade IPMI capabilities for enhanced control and peace of mind.
• Benefit from proven, consistent performance through rigorous 24/7 operational validation, ensuring a dependable AMD workstation motherboard.

SPECIFICATIONS:

• CPU:
  • AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and Ryzen™ Threadripper™ 9000 & 7000 Series Processors**
  • **System boot may take longer with Threadripper™ 9000 series CPUs due to memory calibration. This behavior is normal. Please allow sufficient time for the process to complete.
• Chipset: AMD TRX50 Chipset
• Memory:
  • 4 x DIMM slots, DDR5, ECC Registered Memory*
  • 4 Channel Memory Architecture
  • * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration.
  • For more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
• Expansion Slots:
  • AMD Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and Ryzen™ Threadripper™ 9000 & 7000 Series Processors
  • 3 x PCIe 5.0 x16 slots
  • 1 x PCIe 4.0 x16 slot
  • * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)
• Storage:
  • Total supports 4 x M.2 slots, 4 x SATA 6Gb/s ports , 2 x SlimSAS ports
  • AMD Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and AMD Ryzen™ Threadripper™ 9000 & 7000 Series Processors
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
  • AMD TRX50 Chipset
  • M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode),shared bandwidth with SlimSAS_2***
  • 4 x SATA 6Gb/s ports
  • SlimSAS_2 slot supports PCIe 4.0 x4 mode NVMe device, shared bandwidth M.2_3***
  • AMD Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series
  • M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)****
  • SlimSAS_1 slot supports PCIe 4.0 x4 mode NVMe device****
  • * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.
  • ** M.2_1 & M.2_2 slots only support PCIe 4.0 x4 mode when using Threadripper 7000 non-pro series CPUs
  • *** M.2_3 slot shares bandwidth with SlimSAS_2.When M.2_3 slot is operating, SlimSAS_2 will be disabled, and vice versa.
  • **** Supported when the Threadripper™ PRO series CPU is installed.
• RAID:
  • AMD RAIDXpert2 Technology
  • PCIe RAID 0/1/5/10
  • SATA RAID 0/1/5/10
• Ethernet:
  • 1 x Marvell® AQtion 10Gb Ethernet
  • 1 x Intel® I226-LM 2.5Gb Ethernet
• Wireless & Bluetooth:
  • Wi-Fi 7 (Realtek® RTL8922AE)
  • 2x2 Wi-Fi 7* (802.11be)
  • Supports 2.4/5/6GHz frequency band**
  • Supports Wi-Fi 7 160MHz bandwidth
  • Bluetooth® v5.4***
  • *Wi-Fi features may vary depending on the operating system
  • For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
  • For Windows 10, only Wi-Fi 6 is supported.
  • ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
  • *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
• Rear USB (Total 9 ports):
  • 2 x USB4® (40Gbps) (2 x USB Type-C®)
  • 6 x USB 10Gbps ports (6 x Type-A )
  • 1 x USB 2.0 ports (1 x Type-A )
• Front USB (Total 7 ports):
  • 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD)*
  • 1 x USB 5Gbps header supports 2 additional USB 5G ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
  • * USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
• Audio:
  • Realtek ALC1220P Surround Sound High Definition Audio CODEC*
  • Impedance sense for front and rear headphone outputs
  • Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
  • Supports up to 32-Bit/192 kHz playback
• Audio Features:
  • Audio Shielding
  • Dedicated audio PCB layers
  • Unique de-pop circuit
  • * A chassis with an HD audio module in the front panel is required to support 5.1 Surround Sound audio output.
  • * This motherboard will only support up to 5.1 Surround Sound due to the number of audio ports available on the motherboard.
• Back Panel I/O Ports:
  • 2 x USB4® (40Gbps) ports (2 x USB Type-C®)
  • 6 x USB 10Gbps ports (6 x Type-A)
  • 1 x USB 2.0 port (1 x Type-A)
  • 2 x DisplayPort IN
  • 1 x Wi-Fi Module
  • 1 x Marvell® AQtion 10Gb Ethernet port
  • 1 x Intel® 2.5Gb Ethernet port
  • 2 x Audio jacks
  • 1 x BIOS FlashBack™ button
  • 1 x Clear CMOS button
• Operating System: Windows 11
• Form Factor: CEB (30.5 x 28 cm)

WHAT'S IN THE BOX:

• Asus Pro WS TRX50-SAGE WIFI A sTR5 CEB Motherboard x1
• SATA 6Gb/s cables x2
• Thermistor cable pack x1
• DisplayPort cable x1
• 4pin to 24-pin ATX power connector x1
• ASUS WiFi Q-Antenna x1
• M.2 Q-Latch package(2 in 1) x2
• M.2 Q-Slide package x2
• M.2 Rubber Packages x2
• Fan bracket x1
• Q-connector x1
• ACC Express Activation Key Card x1
• QSG x1

Why Asus?

Asus is a brand synonymous with innovation and engineering excellence. It consistently delivers products that set industry benchmarks for professional users. For professionals and enthusiasts across South Africa, choosing Asus Pro WS TRX50-SAGE means investing in a legacy of reliability, cutting-edge technology, and robust support. Their commitment to rigorous testing and development ensures that every component, including this TRX50 SAGE WIFI A motherboard, offers unwavering performance and durability. It provides a trustworthy foundation for the most demanding computing environments. With Asus, you gain not just hardware, but a partner in progress, enabling you to achieve your ambitious goals with confidence, powered by an exceptional AMD workstation motherboard.

Power Your Vision with the ASUS ProArt B650-Creator Motherboard for Content Creation. Unleash the full potential of your creative workflow with the ASUS ProArt B650-Creator motherboard for content creation, a high-performance platform built for professionals in 3D animation, film post-production, and complex media rendering. Engineered for AMD Ryzen™ 9000, 8000, and 7000 Series CPUs, this AM5-socket board delivers workstation-class stability, thermal control, and connectivity that empower content creators to move faster, think bigger, and produce more.

Harness the speed of DDR5 memory up to 7600+ MHz (OC) and AMD EXPO™ profiles for real-time multitasking, seamless timeline scrubbing, and accelerated rendering. With a dual-channel architecture and support for up to 192GB of RAM, the board ensures your system remains future-proofed for evolving creative demands.

The ASUS ProArt B650-Creator motherboard is designed with intensive content creation in mind. Featuring three ultra-fast M.2 slots, including one PCIe 5.0 x4 slot, for rapid file transfers and high-capacity NVMe storage, reducing load times on RAW 4K/8K files and complex project assets. Four additional SATA 6Gb/s ports allow for expanded archival storage, while USB 3.2 Gen 2x2 front-panel connectivity offers 20Gbps data throughput and Quick Charge 4+ up to 60W—perfect for high-speed file syncing and device charging between shoots.

Creators working in high-res workflows will appreciate DisplayPort Alt Mode support on Type-C, enabling up to 8K@60Hz output, alongside native HDMI 2.1 support. Dual LAN (2.5GbE + 1GbE) with ASUS LANGuard ensures low-latency transfers to NAS systems and remote collaboration environments.

Built on ASUS's ProArt design philosophy, this board features Creator Hub software for real-time monitoring and fine-tuning, Q-Latch for tool-free M.2 installation, and robust thermal design with oversized VRM heatsinks. Audio quality is equally professional, with 7.1-channel HD audio, premium capacitors, and optical S/PDIF out for precise sound editing.

Whether you’re colour grading, rendering effects, or streaming your workflow, the ASUS ProArt B650-Creator motherboard for content creation is your creative powerhouse—intelligently engineered for stability, performance, and artistic ambition.

FEATURES:

• Optimised for AMD Ryzen™ 9000, 8000, & 7000 Series CPUs with AM5 socket
• Supports up to 192GB DDR5 RAM at speeds up to 7600MHz (OC) for seamless multitasking
• PCIe 5.0 and PCIe 4.0 slots for lightning-fast storage and GPU performance
• Dual M.2 slots with PCIe 5.0 x4 and PCIe 4.0 x4 for high-speed data transfer
• USB 3.2 Gen 2x2 front panel with Quick Charge 4+ support for up to 60W power delivery
• Dual 2.5Gb Ethernet and 1Gb Ethernet ports with ASUS LANGuard for enhanced network reliability
• DisplayPort 1.4 and HDMI 2.1 ports for 8K/4K visual output and smooth multi-display setups
• Thermal management with oversized VRM heatsinks and M.2 heatsinks for improved cooling
• ProArt Creator Hub software for real-time monitoring, system tuning, and custom profiles
• ASUS 5X Protection III, including enhanced DRAM overcurrent protection and ESD guards
• Q-DIMM and Q-Latch for tool-free, hassle-free component installation
• Aura Sync RGB support for customisable lighting that matches your creative space

SPECIFICATIONS:

• CPU
  • Socket: AMD Socket AM5
  • Supported CPUs: AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors*
  • *Refer to www.asus.com for the full CPU support list.
• Chipset
  • Chipset: AMD B650
• Memory
  • DIMM Slots: 4 x DIMM
  • Max Memory Capacity: 128GB (DDR5) or 192GB (DDR5), depending on CPU
  • Memory Speed (OC): 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800
  • Memory Types: ECC & Non-ECC, Un-buffered Memory*
  • Dual Channel Architecture
  • AMD EXPO™ Support for Overclocking
  • OptiMem II Support
  • *Non-ECC, Un-buffered DDR5 supports On-Die ECC function
• Graphics
  • 1 x HDMI® port (supports 4K@60Hz, HDMI 2.1)
  • 1 x USB Type-C® port (supports DisplayPort 1.4, 8K@60Hz)
  • Graphics specifications vary by CPU type
• Expansion Slots
  • 2 x PCIe 4.0 x16 slots (support x16 or x8/x8 modes)
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)*
  • 1 x PCIe 4.0 x1 slot
  • *PCIEX16_3 shares bandwidth with M.2_3 slot
• Storage
  • M.2 Slots: 3 x M.2 slots (Key M)
  • M.2_1: PCIe 5.0 x4 mode
  • M.2_2: PCIe 4.0 x4/x2 mode (depending on CPU)
  • M.2_3: PCIe 4.0 x4 mode (shares bandwidth with PCIEX16_3)
  • SATA Ports: 4 x SATA 6Gb/s
  • RAID Support: AMD RAIDXpert2 for NVMe RAID 0/1/10 and SATA RAID 0/1/10
• Ethernet
  • 1 x Realtek 2.5Gb Ethernet
  • 1 x Realtek 1Gb Ethernet
  • ASUS LANGuard for enhanced network protection
• Wireless & Bluetooth
  • M.2 Slot for Wi-Fi Module (sold separately)
  • PCIe Key E for Wi-Fi module support
• USB Ports:
• Rear USB Ports (Total 7):
  • o 1 x USB 3.2 Gen 2 Type-C® (shared with DisplayPort graphic output)
  • o 4 x USB 3.2 Gen 2 Type-A
  • o 2 x USB 2.0 Type-A
• Front USB Ports (Total 7):
  • o 1 x USB 3.2 Gen 2x2 (supports USB Type-C® with up to 60W PD/QC4+)
  • o 1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports)
  • o 2 x USB 2.0 headers (supports 4 additional USB 2.0 ports)
• Audio
  • Realtek 7.1 Surround Sound High Definition Audio CODEC
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Up to 24-bit/192 kHz playback
• Audio Features:
  • Power pre-regulator reduces input noise for consistent performance
  • Rear optical S/PDIF out port
  • Premium audio capacitors and dedicated PCB layers
  • Audio cover and unique de-pop circuit
• Back Panel I/O Ports
  • 1 x USB 3.2 Gen 2 Type-C® (shared with DisplayPort graphic output)
  • 4 x USB 3.2 Gen 2 Type-A
  • 2 x USB 2.0 Type-A
  • 1 x DisplayPort (Input only)
  • 1 x HDMI® port
  • 1 x Realtek 2.5Gb Ethernet
  • 1 x Realtek 1Gb Ethernet
  • 5 x Audio jacks
  • 1 x Optical S/PDIF out port
  • 1 x BIOS FlashBack™ button
• Internal I/O Connectors
• Fan and Cooling:
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 4 x 4-pin Chassis Fan headers
• Power:
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 1 x 4-pin +12V Power connector
  • 1 x 6-pin PCIe Power connector
• Storage:
  • 3 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
• USB:
  • 1 x USB 3.2 Gen 2x2 connector
  • 1 x USB 3.2 Gen 1 header (supports 2 USB 3.2 Gen 1 ports)
  • 2 x USB 2.0 headers (supports 4 USB 2.0 ports)
• Miscellaneous:
  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x M.2 slot (Key E)
  • 1 x 20-5 pin System Panel header
  • 1 x Thermal Sensor header
  • 1 x Thunderbolt™ (USB4®) header
• Special Features
• ASUS 5X PROTECTION III:
  • DIGI+ VRM (Digital Power Design with DrMOS)
  • Enhanced DRAM Overcurrent Protection
  • ESD Guards
  • LANGuard
  • Overvoltage Protection
  • Safeslot
  • Stainless-Steel Back I/O
• ASUS Q-Design:
  • M.2 Q-Latch
  • Q-Connector
  • Q-DIMM
  • Q-LED (CPU, DRAM, VGA, Boot Device indicators)
  • Q-Slot
• ASUS Thermal Solution:
  • M.2 heatsinks
  • VRM heatsink design
• ASUS EZ DIY:
  • BIOS FlashBack™ button and LED
  • ProCool, Pre-mounted I/O shield
  • SafeSlot and SafeDIMM
• AURA Sync:
  • Aura RGB header and Addressable Gen 2 headers
• Bespoke Motherboard Design & Business-Focused Features:
• 24/7 Reliability
• Overcurrent Protection
• Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support:
  • Charging Support: up to 60W
  • Output: 5/9/15/20V max. 3A
  • Compatible with QC 4.0/3.0/2.0, PD3.0, and PPS
• Software Features
• ASUS Exclusive Software:
  • Armoury Crate, Aura Creator, Fan Xpert 4
  • AI Suite 3, TurboV EVO, DIGI+ VRM, PC Cleaner
  • ASUS CPU-Z, IT Management (ACCE), CreationFirst
  • Norton Anti-Virus software (Free Trial)
  • ProArt Creator Hub, WinRAR
• UEFI BIOS:
  • ASUS EZ DIY features (CrashFree BIOS 3, EZ Flash 3, UEFI EZ Mode)
• Manageability
  • WOL by PME, PXE
  • Supported OS: Windows® 11 64-bit, Windows® 10 64-bit
• Form Factor
  • ATX Form Factor
  • Dimensions: 30.5 cm x 24.4 cm

WHAT'S IN THE BOX:

• ASUS ProArt B650-Creator AMD AM5 ATX Motherboard x1
• DisplayPort cable x1
• SATA 6Gb/s cables x2
• Q-connector x1
• Rubber Packages for M.2 x1
• Screw packages for M.2 SSD x1
• Screw package for M.2 Key E x1
• ProArt ruler x1
• ACC Express Activation Key Card x1
• User guide x1

Elevate your creative workstation with the ASUS ProArt LC 360 AIO Liquid CPU Cooler—engineered to meet the thermal demands of high-performance content creation builds. Whether you're editing 4K video, rendering complex 3D models or managing intensive workflows, this premium cooling solution ensures your system remains whisper-quiet and thermally efficient, even under prolonged load.

At the heart of the ProArt LC 360 is an advanced three-phase motor designed to deliver outstanding cooling performance with reduced vibration and minimal noise—ideal for creators who value both power and peace. Complementing this is a trio of matte black Alphacool Apex Stealth Metal Power fans, purpose-built for reliability and airflow. With speeds of up to 3000 RPM, 68.99 CFM airflow and an ultra-low acoustic profile of just 39.5 dB(A), these 12 cm fans offer both performance and refinement.

One of the cooler’s standout features is its illuminated status meter, seamlessly embedded into the pump cover. This intuitive display provides real-time system metrics—CPU load, temperatures and fan speeds—at a glance, empowering creators to monitor performance without interrupting their workflow.

Designed with both aesthetics and function in mind, the ProArt LC 360 features durable 450 mm sleeved tubing for enhanced flexibility and compatibility across diverse chassis types. Its minimalist, matte-black finish aligns perfectly with other ProArt components, offering a sleek, cohesive look for professional setups.

With broad support for both Intel® (LGA 1851, 1700, 1200, 115X) and AMD (AM5, AM4) sockets, this AIO cooler ensures seamless integration into a wide range of builds. Whether you're designing, animating or colour grading, the ASUS ProArt LC 360 provides the stability, cooling and silent operation needed to keep your creativity flowing.

FEATURES:

• PWM/DC fan control support for precise cooling customisation
• 6-year warranty for long-term reliability and professional peace of mind
• Durable copper CPU plate and aluminium radiator for optimal thermal transfer
• Compatible with Intel LGA 1851, 1700, 1200, 115X and AMD AM5, AM4 sockets
• Quiet 39.5 dB(A) operation ideal for studio-grade content creation environments
• High-performance three-phase motor ensures powerful cooling with quieter operation
• Matte black minimalist design complements ProArt-series aesthetics for cohesive builds
• 45 cm sleeved rubber tubing enhances durability and supports larger chassis compatibility
• Illuminated system status meter displays real-time load, temperature, and fan speed metrics
• Ultra-fast fan speeds up to 3000 RPM with daisy-chain design for streamlined cable management
• Three Alphacool Apex Stealth Metal Power 12 cm fans for superior airflow and low acoustic output
• 68.99 CFM airflow and 4.46 mmH₂O static pressure for efficient heat dissipation on high workloads

SPECIFICATIONS:

• Water Block
• Water block dimension: 7.8 x 7.8 x 4.9 cm
• Block Material (CPU Plate): Copper
• Radiator
• Radiator Dimension: 39.4 x 12 x 2.7 cm
• Radiator Material: Aluminium
• Tube: Sleeved Rubber tube
• Tube Length: 45 cm
• Fan
• Matte black Alphacool Apex Stealth Metal Power fan
  • Speed: 0 ~ 3000 +/- 10%
  • Size: 3 x Fan Slots (12 cm)
  • Control Mode: PWM/ DC
  • Dimension:12 x 12 x 2.5 cm
  • Air Flow: 68.99 CFM
  • Static Pressure: 4.46 mmH2O
  • Noise: 39.5 dB(A)
• Compatibility
• Intel: LGA 1851, 1700, 1200, 115x
• AMD: AM5,AM4

WHAT'S IN THE BOX:

• ASUS ProArt LC 360 AIO Liquid CPU Cooler x1
• Quick Start Guide x1
• Accessory Pack of Screws and Brackets
• 1-to-3 Fan Splitter Cable x1
• 120 mm Radiator Fan x3
• CPU Liquid Cooler (pre-applied thermal compound) x1

Designed for creators who demand more than just performance, the ASUS ProArt PA401 Wood Edition PC Case blends natural aesthetics with precision-engineered airflow to power through intensive content creation workflows. This is not just a case, it’s a functional centrepiece for your creative build.

The standout feature is its crafted ash wood front panel, sustainably sourced and FSC® certified, finished through a meticulous six-stage process. It brings warmth and character to a traditionally cold tech space, seamlessly integrating professional-grade hardware into a creative workspace.

Cooling is where the ASUS ProArt PA401 Wood Edition PC Case truly excels. Dual pre-installed 160mm front fans and a 120mm rear fan, all with PWM control, move serious airflow with minimal noise. The 33% open front grille and ring-blade fan design maximise cooling efficiency while reducing vibration, critical when pushing CPUs and GPUs under sustained workloads.

With support for ATX motherboards, large-format GPUs (up to 31.5 cm), and CPU coolers up to 160mm tall, there’s room to build without compromise. Smart design elements like a detachable PSU bracket, tool-free drive installation, and integrated cable routing streamline the building experience from start to finish.

Connectivity is future-ready, too. The front I/O panel features a 20Gbps USB Type-C® port, two USB-A 3.2 Gen 1 ports, HD audio, and a power/reset button lock — all positioned for quick access and daily reliability.

Whether you’re editing 8K footage, working across multiple timelines, or rendering high-res assets, the ASUS ProArt PA401 Wood Edition PC Case delivers thermal headroom, functional elegance, and builder-focused design — all in a compact form that complements your creative space.

FEATURES:

• Detachable bracket for easy, customisable installation of PSU
• Quick, easy and tool-free drive installation for 2.5” and 3.5” drives
• Dual 16 cm fans optimise airflow and cooling for demanding workloads
• 12 cm rear fan ensures balanced airflow for superior cooling performance
• 33% open-front grille maximises air intake for improved thermal efficiency
• 20Gbps USB Type-C® port offers future-proof connectivity for fast data transfer
• Ring-blade fan design reduces vibration, noise, and enhances cooling effectiveness
• Durable FSC® certified ash wood front panel, adding natural elegance and durability
• Ample GPU clearance accommodates graphics cards up to 31.5 cm for high-end builds
• Pre-installed PWM fan hub optimises fan speed automatically based on system demands

SPECIFICATIONS:

• Motherboard Support: ATX
• Drive Bays:
  • 2 x 2.5"/3.5" Combo Bay
  • 2 x 2.5" Bay
• Expansion Slots: 7
• Front I/O Port:
  • 1 x USB 3.2 Gen 2x2 Type C
  • 2 x USB 3.2 Gen1
• 1 x headphone / Microphone
• Radiator Support (Top):
  • 240 mm
  • 140 mm
  • 120 mm
• Cooling Support (Front):
  • 2 x 16 cm
  • 2 x 14 cm
• Cooling Support (Top):
  • 2 x 14 cm
  • 2 x 12 cm
• Cooling Support (Rear): 1 x 12 cm
• Pre-installed Fans (Front): 2 x 16 cm
• Pre-installed Fans (Rear): 1 x 12 cm
• Maximum CPU Cooler Height: 16 cm
• Maximum GPU Length: 31.5 cm
• Maximum PSU Length: 17 cm
• Removable Dust Filters:
  • Bottom
  • Front
• Dimensions: 41.2 x 22.5 x 50.3 cm
• Weight: 861 g

WHAT'S IN THE BOX:

• ASUS ProArt PA401 Wood Edition ATX Chassis - Black x1
• PWM Fan Output x 5

Power your vision with the ASUS ProArt X870E-Creator WiFi motherboard, a next-generation platform built for creators who demand more from every render, compile and export. Designed to unleash the full potential of AMD Ryzen™ 9000, 8000 and 7000 Series processors, this motherboard transforms your PC into a precision tool for high-performance content creation.

At its core, 16+2+2 power stages rated at 80A deliver stable, efficient power to support multi-threaded workloads with ease. DDR5 memory support, up to 256GB and 8000+ MT/s (OC), ensures lightning-fast responsiveness in editing suites, simulation environments and 3D rendering applications.

Connectivity is second to none. The ASUS ProArt X870E-Creator WiFi motherboard integrates dual USB4® (40Gbps) Type-C® ports, 10Gb and 2.5Gb Ethernet, and cutting-edge WiFi 7 — enabling seamless collaboration, ultra-fast file transfers and cloud-based production pipelines. A front-panel USB-C® connector with Quick Charge 4+ (up to 30W) keeps your devices powered while you create.

Storage flexibility is extensive, with four M.2 slots (two PCIe 5.0 x4 enabled) and four SATA ports, giving creators the bandwidth and space for high-res assets, project archives and scratch disks. PCIe 5.0 x16 support enables workstation-class GPU performance, while ASUS Q-Release and SafeSlot features streamline hardware swaps.

Optimised for professional workflows, the ProArt Creator Hub offers system-level customisation, while integrated AI Overclocking, Cooling, and Networking features adapt performance in real time. Pantone® colour validation utilities ensure accuracy across your visual pipeline.

Housed in a sleek, matte-black PCB with metallic gold accents and a translucent I/O shroud, the ASUS ProArt X870E-Creator WiFi motherboard balances form and function in every detail. It’s a premium foundation for creators who won’t compromise — whether you’re building in Blender, editing in DaVinci Resolve or designing across Adobe Creative Cloud.

FEATURES:

• Four ultra-fast M.2 slots, including dual PCIe 5.0 x4 for high-speed NVMe storage
• WiFi 7 with Bluetooth® 5.4 for next-gen wireless performance and multi-device connectivity
• Front Type-C® 20Gbps with Quick Charge 4+ up to 30W and USB Wattage Watcher support
• Sleek ATX form factor with professional black-and-gold aesthetic and translucent I/O shroud
• AI Overclocking, AI Cooling II and AI Networking for optimised, intelligent system performance
• PCIe 5.0 x16 slots with SafeSlot and Q-Release Slim for premium GPU support and easy upgrades
• 16+2+2 power stages (80A) engineered for reliable, high-performance content creation workloads
• ProArt Creator Hub with Colour Control, Fan Management and CreationFirst network prioritisation
• Supports up to 256GB DDR5 memory with speeds up to 8000+ MT/s (OC) and EXPO/AEMP profiles
• Powered by AMD X870E chipset, supporting Ryzen™ 9000, 8000 and 7000 Series desktop processors
• Marvell® 10Gb Ethernet and Intel® 2.5Gb LAN with ASUS LANGuard for high-speed, stable networking
• Dual USB4® Type-C® ports with 40Gbps bandwidth for ultra-fast transfers and external display support

SPECIFICATIONS:

• CPU
  • AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
• Chipset
  • Socket: AMD X870E
• Memory
  • 4 x DIMM slots, max. 256GB, DDR5
  • Supports:
  • 8000+MT/s(OC) with Ryzen™ 9000 Series Processors,
  • 8000+MT/s(OC) with Ryzen™ 8000 Series Processors,
  • 8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
  • ECC and Non-ECC Unbuffered DIMM
  • Dual Channel Memory Architecture
  • Supports AMD Extended Profiles for Overclocking (EXPO™)
  • ASUS Enhanced Memory Profile (AEMP)
• Graphics
  • 1 x HDMI™ port
  • 2 x USB4® (40Gbps) ports support USB Type-C® display outputs
• Expansion Slots
  • 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes
  • 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x8, PCIEX16(G5)_2 will be disabled)
  • 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x4,  PCIEX16(G5)_2 will be disabled)
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
• Storage
  • 4 x M.2 slots and 4 x SATA 6Gb/s ports
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_2 slot is not supported
  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports
  • Ryzen™ 7000 series processors: PCIe RAID 0/1/10
  • Ryzen™ 8000 series processors: PCIe RAID 0/1
  • Ryzen™ 9000 series processors: PCIe RAID 0/1/5/10
  • X870/B850/X670/B650/A620 chipset: SATA RAID 0/1/10
• Ethernet
  • 1 x Marvell® AQtion 10Gb Ethernet
  • 1 x Intel® 2.5Gb Ethernet
  • ASUS LANGuard
• Wireless & Bluetooth
  • Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
  • 2x2 Wi-Fi 7 (802.11be)
  • Bluetooth® v5.4 2.4/5/6GHz frequency band
• USB Ports
  • 2 x USB4® (40Gbps) port(s) (2 x USB Type-C®)
  • 1 x USB 20Gbps port(s) (1 x USB Type-C®)
  • 7 x USB 10Gbps port(s) (7 x Type-A)
  • 1 x USB 2.0 port (1 x Type-A)
  • 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)
  • 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
  • 3 x USB 2.0 headers support 6 additional USB 2.0 ports
• Audio
  • Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
  • Impedance sense for front and rear headphone outputs
  • Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
  • Supports up to 32-bit/192 kHz playback*
• Audio Features:
  • Audio Shielding
  • Premium audio capacitors
  • Dedicated audio PCB layers
  • Unique de-pop circuit
• Back Panel I/O Ports
  • 2 x USB4® (40Gbps) port(s) (2 x USB Type-C®)
  • 1 x USB 20Gbps port (1 x USB Type-C®)
  • 7 x USB 10Gbps ports (7 x Type-A)
  • 1 x USB 2.0 port (1 x Type-A)
  • 1 x DisplayPort (Input only)
  • 1 x HDMITM port
  • 1 x Wi-Fi Module
  • 1 x Marvell® AQtion 10Gb Ethernet
  • 1 x Intel® 2.5Gb Ethernet
  • 3 x Audio jacks
  • 1 x BIOS FlashBack™ button
  • 1 x Clear CMOS button
• Internal I/O Connectors
• Fan and Cooling:
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 5 x 4-pin Chassis Fan headers
• Power related:
  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V CPU Power connector
• Storage-related:
  • 4 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
• USB:
  • 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)
  • 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
  • 3 x USB 2.0 headers support 6 additional USB 2.0 ports
• Miscellaneous:
  • 3 x Addressable Gen 2 headers
  • 1 x Chassis Intrusion header
  • 1 x COM Port header
  • 1 x CPU Over Voltage jumper
  • 1 x Front Panel Audio header (F_AUDIO)
  • 1 x 10-1 pin System Panel header
  • 1 x Thermal Sensor header
• Special Features
• ASUS 5X PROTECTION III
  • DIGI+ VRM (- Digital power design)
  • Enhanced DRAM Overcurrent Protection
  • ESD Guards
  • LANGuard
  • Overvoltage Protection
  • Safeslot
  • Stainless-Steel Back I/O
• ASUS Q-Design
  • M.2 Q-Latch
  • M.2 Q-Release
  • M.2 Q-Slide
  • PCIe Slot Q-Release Slim (with PCIe SafeSlot)
  • Q-Antenna
  • Q-Connector
  • Q-DIMM
  • Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • Q-Slot
• ASUS Thermal Solution
  • M.2 heatsink backplate
  • M.2 heatsinks
  • VRM heatsink design
• ASUS EZ DIY
  • BIOS FlashBack™ button
  • BIOS FlashBack™ LED
  • ProCool
  • Pre-mounted I/O shield
  • SafeSlot
  • SafeDIMM
• AURA Sync
  • Addressable Gen 2 headers
• Bespoke Motherboard Design & Business-Focused Features
  • 24/7 Reliability
  • Overcurrent Protection
• Front Panel USB 20Gbps with Quick Charge 4+ Support
  • Support: up to 30W fast charging and USB Wattage Watcher
  • Output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max2.0A
  • Compatible with PD3.0
• Software Features
  • ASUS Exclusive Software
  • Armoury Crate
  • Aura Creator
  • Aura Sync
  • Fan Xpert 4 with AI Cooling II
  • Power Saving
  • ASUS DriverHub
  • ASUS GlideX
  • USB Wattage Watcher
  • TurboV Core
  • ASUS CPU-Z
  • ProArt Creator Hub
  • CreationFirst
  • Adobe Creative Cloud (Free Trial)
  • Norton 360 Deluxe (60 Days Free Trial)
  • WinRAR (40 Days Free Trial)
• UEFI BIOS
  • ASUS EZ DIY
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode
• FlexKey
• Remote Management Features
• IT Management software is supported
  • ASUS Control Center Express(ACCE)
• BIOS
  • 256 Mb Flash ROM, UEFI AMI BIOS
• Manageability
  • WOL by PME, PXE
• Operating System
  • Windows® 11
• Form Factor
  • ATX Form Factor
  • Dimensions: 30.5 cm x 24.4 cm

WHAT'S IN THE BOX:

• ASUS ProArt X870E-Creator WiFi AM5 ATX Motherboard x1
• DisplayPort cable x1
• SATA 6Gb/s cables x4
• Thermal pad for M.2 22110 x1
• ASUS WiFi Q-Antenna x1
• Q-connector x1
• M.2 Q-Latch package x1
• M.2 Q-Latch Q-Slide package for M.2 backplate x1
• Rubber Packages for M.2 x2
• ProArt ruler x1
• Quick start guide x1
• ACC Express Activation Key Card x1

Quick Specs

• Supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors for the ultimate in processing power.
• Experience blazing-fast data transfer speeds with PCIe 5.0 slot and Lightning Gen 5 support.
• DIY-friendly design featuring PCIe slot Q-Release, M.2 Q-Latch, and Q-LED for effortless building.
• Enjoy robust connectivity with multiple USB ports, including front and rear USB Type-C with power delivery.
• Personalise your gaming rig with advanced cooling solutions and customisable RGB lighting options.

Elevate Your Gaming Experience with the Ultimate AM5 Motherboard

The ASUS ROG Crosshair X870E EXTREME is the premier AM5 motherboard, designed for gamers and enthusiasts who demand peak performance and cutting-edge technology. Supporting AMD Ryzen 9000, 8000, and 7000 Series desktop processors, this gaming motherboard provides a robust foundation for your dream gaming PC. Experience unparalleled speed, connectivity, and customisation options to take your gaming to the next level.

Unleash Lightning-Fast Performance

Take advantage of PCIe 5.0 and Lightning Gen 5 support, which offers blazing-fast data transfer speeds for the latest GPUs and NVMe SSDs. This ensures your system is always performing at its best, providing smooth gameplay and minimal loading times. Maximise your gaming potential with the most advanced technology available on an AM5 motherboard.

Effortless PC DIY Experience

Building your own PC has never been easier with the ASUS ROG Crosshair X870E EXTREME AM5 motherboard. Featuring PCIe slot Q-Release, Q-Antenna, M.2 Q-Latch, Q-LED, and a BIOS Flashback button, this gaming motherboard is designed for easy usage and troubleshooting. Whether you are a seasoned builder or a first-time enthusiast, you will appreciate the user-friendly design.

Comprehensive Connectivity Options

Stay connected with a wide range of USB ports, including multiple rear USB ports and front USB ports with Type-C and power delivery. This ensures you have ample connectivity options for all your peripherals and devices. Enjoy fast charging and data transfer speeds, making your gaming setup more convenient and efficient with this leading AM5 motherboard.

Advanced Cooling Solutions

The ASUS ROG Crosshair X870E EXTREME features advanced cooling solutions to keep your system running smoothly, even under heavy loads. With comprehensive cooling options for your CPU, chipset, and M.2 drives, this AM5 gaming motherboard ensures optimal thermal performance and stability. Maximise your system's potential without worrying about overheating.

Personalised Aesthetics

Customise your gaming rig with personalised aesthetics using the motherboard's RGB lighting options. With support for various lighting effects and synchronisation with other compatible devices, you can create a unique and visually stunning gaming setup. Express your personal style and make your PC stand out from the crowd with the Crosshair X870E EXTREME AM5 motherboard.

Built to Last

Designed with premium components and rigorous testing, the ASUS ROG Crosshair X870E EXTREME is built to last. Enjoy long-term reliability and performance, ensuring your investment is protected. This AM5 gaming motherboard is the perfect choice for gamers and enthusiasts who demand the best in quality and durability.

FEATURES:

• Full Colour 5" LCD display for system info on the fly or custom images
• AMD X870E Chipset with a huge E-ATX form factor for spacious builds
• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 9000+ MT/s (OC) 256GB max capacity
• Ultra-fast Wi-Fi 7 connectivity with Marvell AQtion 10G and Realtek 5G Ethernet LAN
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 support
• 40Gbps USB4 connectivity support for high-speed data transfer
• EZ PC DIY: PCIe slot Q-Release, Q-Antenna, M.2 Q-Latch, Q-LED and BIOS Flashback button for easy usage

SPECIFICATIONS:

• CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
• Chipset: AMD X870E Chipset
• Memory:
  • 4 x DIMM slots, max. 256GB, DDR5 Supports up to
  • 8200+MT/s(OC) with Ryzen™ 9000 Series Processors,
  • 9000+MT/s(OC) with Ryzen™ 8000 Series Processors,
  • 8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
  • ECC and Non-ECC, Un-buffered DIMM*
  • Dual Channel Memory Architecture
  • Supports AMD Extended Profiles for Overclocking (EXPO™)
  • ASUS Enhanced Memory Profile (AEMP)
  • NitroPath DRAM Technology
  • *Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
  • * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
• Graphics:
  • 1 x HDMITM port**
  • 2 x USB4® (40Gbps) ports support USB Type-C® display outputs***
  • * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
  • ** Supports 4K@60Hz as specified in HDMI 2.1.
  • *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a
  • **** VGA resolution support depends on processors' or graphic cards' resolution.
• Expansion Slots:
  • AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
  • 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***)
  • AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors*
  • 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will be disabled)
  • AMD Ryzen™ 8500 & 8300 Series Desktop Processors*
  • 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will be disabled)
  • * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
  • ** When both PCIEX16_1 and PCIEX16_2 are in use, they will each run in x8 mode.
  • *** When M.2_2 is enabled, but M.2_3 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled.
  • *** When M.2_3 is enabled, but M.2_2 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will run in x4 mode.
  • *** When both M.2_2 and M.2_3 are enabled, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled.
  • To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported
• Storage:
  • Supports up to 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports*
  • AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
  • M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
  • AMD Ryzen™ 8000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
  • M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports)
  • AMD X870E Chipset
  • DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • SlimSAS connector supports PCIe 4.0 x4 mode via an SFF-8654 adapter cable. The cable is purchased separately.
  • 4 x SATA 6Gb/s ports
  • * Specifications vary by CPU types.
  • ** When M.2_2 is enabled, but M.2_3 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled.
  • ** When M.2_3 is enabled, but M.2_2 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will run in x4 mode.
  • ** When both M.2_2 and M.2_3 are enabled, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled.
• RAID:
  • AMD RAIDXpert2 Technology*
  • Ryzen™ 9000 Series Processors: RAID 0/1/5/10
  • Ryzen™ 8000 Series Processors: RAID 0/1
  • Ryzen™ 7000 Series Processors: RAID 0/1/10
  • * Specifications vary by CPU types.
• Ethernet:
  • 1 x Realtek 5Gb Ethernet
  • 1 x Marvell® AQtion 10Gb Ethernet
  • ASUS LANGuard
• Wireless & Bluetooth:
  • Wi-Fi 7*
  • 2x2 Wi-Fi 7 (802.11be)
  • Supports 2.4/5/6GHz frequency band**
  • Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
  • Bluetooth® v5.4***
  • *Wi-Fi features may vary depending on the operating system
  • For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
  • For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.
  • ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
  • *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
• Rear USB (Total 12 ports):
  • 2 x USB4® (40Gbps) ports (2 x USB Type-C®)
  • 10 x USB 10Gbps ports (8 x Type-A + 2 x USB Type-C®)
• Front USB (Total 6 ports):
  • 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)*
  • 1 x USB 10Gbps connector (supports USB Type-C®)
  • 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • USB Type-C® power delivery output: max. 5V/3A
  • *USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
• Audio:
  • ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
  • Impedance sense for front and rear headphone outputs
  • Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
  • High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
  • Supports up to 32-Bit/384 kHz playback on front panel
• Audio Features:
  • SupremeFX Shielding Technology
  • ESS® ES9219 QUAD DAC
  • LED-illuminated audio jacks
  • Rear optical S/PDIF out port
  • Premium audio capacitors
  • * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
  • ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
• Back Panel I/O Ports:
  • 2 x USB4® (40Gbps) ports (2 x USB Type-C®)
  • 10 x USB 10Gbps ports (8 x Type-A + 2 x USB Type-C®)
  • 1 x HDMITM port
  • 1 x Wi-Fi Module
  • 1 x Realtek 5Gb Ethernet port
  • 1 x Marvell® AQtion 10Gb Ethernet port
  • 2 x LED-illuminated audio jacks
  • 1 x Optical S/PDIF out port
  • 1 x BIOS FlashBack™ button
  • 1 x Clear CMOS button
• Operating System: Windows 11
• Form Factor: E-ATX

WHAT’S IN THE BOX:

• Asus ROG Crosshair X870E EXTREME AM5 E-ATX Gaming Motherboard - Black x1
• 1-to-3 ARGB splitter cable x1
• 1-to-2 ARGB splitter cable x1
• 1-to-4 fan splitter cable x2
• ROG weave SATA 6G cable packages x2
• 3-in-1 Thermistor cables pack x1
• ROG DIMM.2 with heatsink x1
• M.2 pad package for ROG Q-DIMM.2 x1
• Thermal pad for ROG Q-DIMM.2 x2
• Thermal pad for M.2 22110 x2
• DDR5 Fan holder x1
• ROG Fan Kit x1
• ASUS Wi-Fi Q-Antenna x1
• Q-connector x1
• ROG logo plate sticker x1
• ROG screwdriver x1
• ROG stickers x1
• ROG VIP card x1
• M.2 Q-Slide package x1
• M.2 backplate rubber packages x5
• ROG Bottle Opener x1
• USB drive with utilities and drivers x1
• Quick Start Guide

Why Asus

ASUS consistently delivers high-quality, innovative motherboards designed for gamers and enthusiasts. With a strong reputation for performance, reliability, and cutting-edge technology, ASUS motherboards are the ideal choice for building a top-tier gaming PC in South Africa. The ROG Crosshair X870E EXTREME AM5 motherboard exemplifies this commitment. Experience the difference with ASUS and elevate your gaming experience.

The ASUS ROG Crosshair X870E Hero BTF AMD AM5 ATX Gaming Motherboard redefines next-generation PC building with its revolutionary hidden-connector design, purpose-built for ultra-clean AMD Ryzen™ 9000 Series gaming rigs. Designed for South African enthusiasts who demand both performance and aesthetics, this flagship ROG motherboard integrates hidden motherboard, GPU power, USB and fan connectors to eliminate visible cables when paired with BTF-compatible graphics cards and chassis. Powered by the AMD X870E chipset and supporting AMD Ryzen™ 9000, 8000, and 7000 Series desktop processors on the AM5 socket, it delivers uncompromising performance with robust power delivery, PCIe® 5.0 support and advanced DDR5 memory architecture enhanced by NitroPath DRAM Technology. With Polymo Lighting II adding dynamic RGB illumination, your build doesn’t just perform at elite levels — it looks exceptional from every angle.

Built for cutting-edge gaming, streaming and content creation, the Crosshair X870E Hero BTF supports up to 256GB of DDR5 memory with speeds reaching 8200+MT/s (OC) on Ryzen™ 9000 Series processors, alongside AMD EXPO™, AEMP and DIMM Fit technologies for optimised stability and overclocking precision. Storage flexibility is unmatched, offering up to five M.2 slots (including PCIe® 5.0 x4 support for Ryzen™ 9000 & 7000 Series CPUs) plus four SATA 6Gb/s ports with AMD RAIDXpert2 support. Connectivity is equally future-ready, featuring dual USB4® 40Gbps Type-C® ports, Wi-Fi 7 (802.11be) with 320MHz bandwidth, Bluetooth® 5.4, Intel® 2.5Gb Ethernet and Realtek 5Gb Ethernet. SupremeFX audio with the ALC4082 codec and ESS® ES9219 QUAD DAC ensures crystal-clear 32-bit/384kHz playback, making it ideal for immersive gaming and high-fidelity media experiences.

FEATURES:

• Advanced BTF Hidden-Connector Design – Graphics card high-power slot delivers up to 600W to BTF GPUs, eliminating visible cables for a cleaner ATX build.
• AMD AM5 Platform with X870E Chipset – Supports Ryzen™ 9000, 8000 and 7000 Series processors with PCIe® 5.0 readiness.
• Extreme DDR5 Performance – Up to 256GB DDR5, 8200+MT/s (OC)*, NitroPath DRAM Technology, AMD EXPO™, AEMP and Dual-Channel architecture.
• Next-Gen Storage – 5 x M.2 slots (up to PCIe® 5.0 x4**) + 4 x SATA 6Gb/s with RAID 0/1/5/10*** support.
• Blazing Connectivity – Dual USB4® (40Gbps), 8 x USB 10Gbps rear ports, Wi-Fi 7 (2x2, 2.4/5/6GHz), Bluetooth® 5.4, 2.5Gb + 5Gb Ethernet.
• Premium ROG SupremeFX Audio – ALC4082 codec, ESS® ES9219 QUAD DAC, 120dB SNR playback, 32-bit/384kHz support, gold-plated jacks & optical S/PDIF.

SPECIFICATIONS:

• CPU:
  • AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
  • * Refer to https://www.asus.com/support/download-center/ for CPU support list.
• Chipset
  • AMD X870E
• Memory
  • 4 x DIMM slots, max.256GB, DDR5
  • Supports up to:
  • 8200+MT/s(OC) with Ryzen™ 9000 Series Processors,
  • 8600+MT/s(OC) with Ryzen™ 8000 Series Processors,
  • 8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
  • ECC and Non-ECC, Un-buffered Memory*
  • Dual channel memory architecture
  • Supports AMD Extended Profiles for Overclocking (EXPO™)
  • Supports DIMM Fit and DIMM Fit Pro
  • NitroPath DRAM Technology
  • ASUS Enhanced Memory Profile (AEMP)
  • * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory
  • Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
  • * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
• Graphics
  • 1 x HDMI™ port*
  • 2 x USB4® (40Gbps) ports support USB Type-C® display outputs**
  • Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
  • VGA resolution support depends on processors' or graphic cards' resolution.
  • *Supports 4K@60Hz as specified in HDMI 2.1.
  • **Supports max. 4K@60Hz as specified in DisplayPort 1.4a
• Expansion Slots
  • AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
  • 1 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x4/x4 modes**)
  • **When M.2_2 is enabled, PCIEX16_1 will run x8 mode, and M.2_3 will run x4.
  • AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors*
  • 1 x PCIe 4.0 x16 slots with Q-Release Slim (Total bandwidth for x8)
  • AMD Ryzen™ 8500 & 8300 Series Desktop Processors*
  • 1 x PCIe 4.0 x16 slot with Q-Release Slim (Total bandwidth for x4)
  • * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
  • - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported
  • AMD X870E Chipset
  • 1 x PCIe 4.0 x4 slot
• Storage:
  • Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
  • AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  • AMD Ryzen™ 8000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
  • M.2_3 slot (Key M), type 2242/2260/2280 (Not supports)
  • AMD X870E Chipset
  • M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports
  • * When M.2_2 is enabled, PCIEX16_1 will run x8 mode, and M.2_3 will run x4.
• RAID Support
  • AMD RAIDXpert2 Technology*
  • Ryzen™ 9000 Series Processors: RAID 0/1/5/10
  • Ryzen™ 8000 Series Processors: RAID 0/1
  • Ryzen™ 7000 Series Processors: RAID 0/1/10
  • * Specifications vary by CPU types.
• Ethernet
  • 1 x Intel® 2.5Gb Ethernet
  • 1 x Realtek 5Gb Ethernet
  • ASUS LANGuard
• Wireless & Bluetooth
  • Wi-Fi 7 (MediaTek MT7927)
  • 2x2 Wi-Fi 7* (802.11be)
  • Supports 2.4/5/6GHz frequency band**
  • Supports Wi-Fi 7 320MHz bandwidth
  • Bluetooth® v5.4***
  • *Wi-Fi features may vary depending on the operating system
  • For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
  • For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.
  • ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
  • *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
• USB
  • Rear USB (Total 10 ports)
  • 2 x USB4® (40Gbps) ports (2 x USB Type-C®)
  • 8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C®)
  • Front USB (Total 10 ports)
  • 2 x USB 20Gbps connector (supports USB Type-C®)
  • 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • USB Type-C® power delivery output: max. 5V/3A
• Audio
  • ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
  • Impedance sense for front and rear headphone outputs
  • Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
  • High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
  • Supports up to 32-Bit/384 kHz playback on front panel
• Audio Features
  • SupremeFX Shielding Technology
  • ESS® ES9219 QUAD DAC
  • Gold-plated audio jacks
  • Rear optical S/PDIF out port
  • Premium audio capacitors
  • * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
  • ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
• Back Panel I/O Ports
  • 2 x USB4® (40Gbps) ports (2 x USB Type-C®)
  • 8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C®)
  • 1 x HDMI™ port
  • 1 x Wi-Fi module
  • 1 x Intel® 2.5Gb Ethernet port
  • 1 x Realtek 5Gb Ethernet port
  • 2 x Gold-plated audio jacks
  • 1 x Optical S/PDIF out port
  • 1 x BIOS FlashBack™ button
  • 1 x Clear CMOS button
• Internal I/O Connectors
  • Fan and Cooling Related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 4 x 4-pin Chassis Fan headers
  • 1 x W_PUMP+ header
  • Power Related
  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V CPU Power connector
  • 1 x Graphics card high power slot
  • 1 x 12V-2X6 Auxiliary power connector
  • Storage Related
  • 5 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 2 x USB 20Gbps connectors (support USB Type-C® )
  • 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • Miscellaneous
  • 3 x Addressable Gen2 headers
  • 1 x Alteration PCIe mode switch
  • 1 x FlexKey button
  • 1 x Front Panel Audio header (F_AUDIO)
  • 1 x Start button
  • 1 x 10-1 pin System Panel header
  • 1 x Thermal Sensor header
• BIOS
  • 256Mb Flash ROM, UEFI AMI BIOS
• Manageability
  • WOL by PME
• Operating System
  • Windows® 11
• Form Factor
  • ATX Form Factor
  • 30.5 cm x 24.4 cm

WHAT'S IN THE BOX:

• ASUS ROG CROSSHAIR X870E HERO BTF AMD AM5 ATX Gaming Motherboard - Black x1
• ARGB RGB extension cable x1
• SATA 6Gb/s cables x4
• ASUS WiFi Q-Antenna x1
• Q-connector x1
• M.2 Q-Latch package x2
• M.2 Q-Slide package x3
• M.2 rubber package x5
• USB drive with utilities and drivers x1
• Quick start guide x1

Build with exceptional cooling, ample space for your rig, and premium features that streamline your experience | Experience unparalleled power and style designed for the dedicated gamer.

Quick Specs

• Accommodate extensive cooling solutions with dual 420mm radiator support and room for four 140mm fans.
• Build with confidence thanks to ample space for large graphics cards and a 34mm deep cable management chamber.
• Enjoy a streamlined building process with tool-free side panels, a storage drawer, and an integrated GPU holder.
• Power your peripherals and rig with dual USB Type-C ports offering 60-watt fast charging.
• Showcase your build with Aura Sync compatible lighting, premium anodized metal, and hairline finishes.

Forge your ultimate gaming machine with the Asus ROG Hyperion GR701 E-ATX ARGB Gaming PC Case

This is not merely a case; it is the foundation of a legend, meticulously crafted for the discerning South African gamer who demands peak performance and uncompromising aesthetics. The GR701 Hyperion is built for those who understand that true gaming prowess is born from a system engineered without compromise. It caters to the builder who sees their PC as a canvas for expression and a tool for victory. This chassis is designed to house your most ambitious builds, ensuring that every component operates at its peak, cooled effectively, and presented with undeniable style. It is for the gamer who respects the art of the build and desires a gaming pc case that reflects their dedication to the craft.

Unleash unparalleled thermal control

The Asus ROG Hyperion GR701 is engineered to conquer heat. With support for dual 420mm radiators and the ability to house four 140mm fans, it offers a thermal management system that can handle the most demanding, high-performance components. The integrated fan hub allows for centralised control, ensuring optimal airflow and keeping your system running cool and quiet, even during intense gaming sessions. This level of cooling potential is essential for maintaining stable frame rates and prolonging the life of your high-end hardware. This full tower PC case ensures your components are always performing optimally.

Expansive interior for limitless potential

Forget the constraints of smaller cases. The GR701 provides an expansive interior designed to accommodate even the most colossal graphics cards currently available. Beyond just raw space, its intelligently designed 34mm deep cable management chamber, coupled with a generous 46mm wide routing channel, ensures that your build remains tidy, improving airflow and simplifying maintenance. This focus on space and organisation means your attention can remain on performance, not on wrestling with cables. The sheer scale of this asus rog chassis offers builders unparalleled freedom.

Effortless building experience, premium features

Asus understands that the build process should be as enjoyable as the gaming that follows. The GR701 features innovative hinged, tool-free side panels, allowing for quick and easy access to your components. A built-in storage drawer provides a convenient place to keep spare screws, tools, or other small accessories, keeping your workspace clutter-free. Furthermore, an integrated graphics card holder prevents sagging, ensuring your high-end GPU is supported securely. These thoughtful additions elevate the building experience from a chore to a pleasure, making this gaming pc case a joy to work with.

Robust construction meets next-generation connectivity

Built with an aluminum-reinforced frame and integrated handles, the GR701 Hyperion is as rugged as it is stylish, capable of being transported to LAN events with confidence. Its front panel boasts dual USB Type-C ports, featuring 60-watt fast charging capabilities, ideal for quickly powering up your phone or other compatible devices. This combination of durable construction and advanced connectivity ensures your chassis is ready for any challenge, both in performance and convenience. It stands as a testament to the robust engineering found in a quality full tower PC case.

A statement of gaming passion

The GR701 is designed to be seen. The chassis is adorned with premium anodized metal and elegant hairline finishes, exuding a sophisticated aesthetic. The integrated lighting panel and fan hub are fully compatible with Asus Aura Sync technology, allowing you to synchronise your chassis lighting with your other ROG components for a cohesive and stunning visual display. This is more than just a gaming chassis; it's a statement piece that showcases your passion for high-performance gaming and cutting-edge design, embodying the spirit of an asus rog chassis.

FEATURES:

• Extra Cooling: Dual 420mm radiator support, four 140 mm fans and a built-in fan hub offer massive airflow possibilities
• Extra Space: The beefiest graphics cards get plenty of room; cable management gets an expansive chamber that is 34 mm deep, with a 46 mm wide routing channel
• Extra Convenience: Hinged tool-free side panels, a built-in storage drawer and an integrated graphics card holder come together to amp up the building experience
• Extra Power: Dual USB Type-C ports, 60-watt fast charging, aluminum-reinforced frame and handles deliver power and premium ruggedness
• Extra Stylish: The fan hub and lighting panel all support Aura Sync, and the chassis is decked out with anodized metal and hairline finishes

SPECIFICATIONS:

• Motherboard Support
  • EATX (12"x10.9")
  • ATX
  • Micro-ATX
  • Mini-ITX
• Drive Bays
  • 5 x 2.5" Bay
  • 2 x 2.5"/3.5" Combo Bay
• Expansion Slots
  • 9
  • 3 (additional vertical)
• Front I/O Port
  • 1 x headphone / Microphone
  • 4 x USB 3.2Gen1
  • 1 x USB 3.2 Gen2 Type C
  • LED Control Button
  • Reset Button
  • 1 x USB 4.0 Type C or 1 x USB 3.2 Gen 2x2 Type C
• Tempered Glass
  • Left Side
  • Right Side
• Radiator Support (Front)
  • 120 mm
  • 140 mm
  • 240 mm
  • 280 mm
  • 360 mm
  • 420 mm
• Radiator Support (Top)
  • 120 mm
  • 140 mm
  • 240 mm
  • 280 mm
  • 360 mm
  • 420 mm
• Radiator Support (Rear)
  • 120 mm
  • 140 mm
• Cooling Support (Front)
  • 3 x 120 mm
  • 3 x 140 mm
• Cooling Support (Top)
  • 3 x 120 mm
  • 3 x 140 mm
• Cooling Support (Rear)
  • 1 x 120 mm
  • 1 x 140 mm
• Pre-installed Fans (Front)
  • 3 x 140 mm
  • PWM
• Pre-installed Fans (Rear)
  • 1 x 140 mm
• Maximum CPU Cooler Height
  • 190 mm
• Maximum GPU Length
  • 460 mm
• Maximum PSU Length
  • 240 mm
• Removable Dust Filters
  • Front
  • Top
  • Bottom
• Maximum Cable Management Space
  • 34 mm
• BTF motherboard compatible
  • ROG Hyperion GR701 BTF Edition ONLY
• Product Dimensions
  • 26.8 x 63.9 x 65.9 cm
• Product Weight
  • 20.8 Kg
  • 21.3 Kg (GR701 BTF Edition)

WHAT'S IN THE BOX:

• Asus ROG Hyperion GR701 E-ATX ARGB Gaming Chassis - Black x1

Why Asus?

Asus ROG is synonymous with elite gaming performance, pushing the boundaries of what's possible. In South Africa, ROG delivers cutting-edge technology and battle-tested reliability, empowering gamers to dominate. Choose ROG for an unparalleled competitive edge and a gaming experience built to last. This commitment extends to every asus rog chassis, ensuring superior quality.

Unlock ultimate gaming potential with robust power delivery and next-gen connectivity for Intel LGA1851 processors.

Quick Specs

• Dominate your games with a motherboard built for peak Intel LGA1851 performance.
• Experience lightning-fast data transfers and future-proof connectivity.
• Ensure stable power delivery for overclocking and demanding components.
• Crafted with premium materials for enhanced durability and system longevity.
• Designed for gamers seeking ultimate control and a competitive edge.

Engineered for victory: The Asus ROG Maximus Z890 Hero is your command centre for elite gaming.

This is not merely a foundation for your system; it is the beating heart of a champion's rig. Designed for the discerning South African gamer who demands uncompromising performance, this Z890 motherboard is built to harness the full potential of Intel LGA1851 processors. It's for those who understand that victory is forged in the details: from the stability of power delivery during intense overclocking sessions to the seamless flow of data that defines split-second decision-making. This motherboard is the ultimate statement of intent, for those who play to win and refuse to settle for anything less than the pinnacle of gaming hardware.

Unleash raw power and unwavering stability

At the core of the ROG Maximus Z890 Hero lies its commitment to supreme power delivery. Engineered with robust VRM solutions and premium chokes, it ensures that your Intel LGA1851 CPU receives a consistently clean and stable power supply, even under the most demanding loads. This meticulous attention to power management is critical for achieving peak performance and unlocking the full potential of your processor through overclocking, providing a reliable foundation for all your gaming adventures. This makes it one of the best motherboards for gaming.

Connectivity redefined for the modern gamer

Experience the bleeding edge of connectivity with the ROG Maximus Z890 Hero. Featuring the latest high-speed USB ports, including USB Type-C with advanced power delivery capabilities (supporting up to 60W fast charging and detailed wattage monitoring), this motherboard ensures your peripherals are powered and connected without compromise. Coupled with advanced networking options, you gain the responsiveness and bandwidth necessary for uninterrupted online gaming, rapid file transfers, and the smooth operation of all your high-performance components. When searching for motherboards, look for this level of integrated connectivity.

Built to endure, designed to perform

The Asus ROG Maximus Z890 Hero is constructed with durability and longevity in mind. Utilizing premium-grade materials and rigorous testing protocols, this motherboard is built to withstand the rigors of competitive gaming and overclocking. Its robust design not only ensures reliability but also contributes to optimal thermal performance, keeping your system cool and stable when it matters most. Invest in a motherboard that is as resilient and determined as you are, ensuring you have the best motherboard for gaming needs.

The ultimate platform for your competitive edge

For the South African gamer who seeks absolute dominance, the ROG Maximus Z890 Hero offers an unparalleled platform. It’s designed to provide the responsiveness, power, and stability required to push your system to its limits. With its advanced features and premium construction, this motherboard is the definitive choice for those who demand the best and are ready to claim victory.

FEATURES:

• Secure your system's power with advanced VRM and premium components for stable overclocking and peak Intel LGA1851 performance.
• Experience accelerated data transfer and device charging with versatile USB ports, including USB Type-C® with up to 60W fast charging.
• Establish a low-latency, high-speed gaming network with advanced connectivity options ensuring uninterrupted online play.
• Enhance system stability and longevity through superior build quality and thermal management.
• Take full command of your gaming rig with intuitive BIOS controls and comprehensive software suite.

SPECIFICATIONS:

• CPU
  • Support Intel® Core™ Ultra Processors (Series 2) , LGA1851*
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  • * Refer to https://www.asus.com/support/download-center/ for CPU support list.
  • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset:
  • Intel® Z890 Chipset
• Memory
  • 4 x DIMM slots, max. 256GB, DDR5
  • Support up to 9200+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
  • Dual channel memory architecture
  • Supports Intel® Extreme Memory Profile (XMP) memory module
  • Supports DIMM Flex
  • NitroPath DRAM Technology
  • DIMM FIT
  • ASUS Enhanced Memory Profile III (AEMP III)
  • * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to
  • CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
  • * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
• Graphics
  • 1 x HDMI™ port**
  • 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs***
  • * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates
  • ** Supports max. 8K@60Hz with DSC as specified in HDMI 2.1.
  • *** In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please
  • check DisplayPort 2.1 specs.
  • **** In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time.
  • ***** VGA resolution support depends on processors' or graphic cards' resolution.
  • ******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
• Storage
  • Supports up to 6 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports*
  • Intel® Core™ Ultra Processors (Series 2) *
  • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
  • M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  • Intel® Z890 Chipset
  • M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_6 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports
  • SlimSAS connector supports PCIe 4.0 x4 mode or up to 4 SATA devices via an adapter cable. The cable is purchased separately.
  • * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5
  • ** When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only.
• Ethernet
  • 1 x Intel® 2.5Gb Ethernet
  • 1 x Realtek 5Gb Ethernet
  • ASUS LANGuard
• Wireless & Bluetooth
  • Wi-Fi 7*
  • 2x2 Wi-Fi 7 (802.11be)
  • Supports 2.4/5/6GHz frequency band**
  • Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
  • Bluetooth® v5.4***
  • *Wi-Fi features may vary depending on the operating system
  • For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
  • For Windows 10, only Wi-Fi 6 is supported.
  • ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
  • *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
• USB
• Rear USB (Total 11 ports)
  • 2 x Thunderbolt™ 4 ports (2 x USB Type-C®)
  • 5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)
  • 4 x USB 5Gbps ports (4 x Type-A)
• Front USB (Total 10 ports)
  • 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)**
  • 1 x USB 10Gbps connector (supports USB Type-C®)
  • 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • * USB Type-C® power delivery output: max. 5V/3A
  • ** USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
• Audio
  • ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
  • Impedance sense for front and rear headphone outputs
  • Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
  • High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
  • Supports up to 32-Bit/384 kHz playback on front panel"
• Audio Features
  • SupremeFX Shielding Technology
  • ESS® ES9219 QUAD DAC
  • Gold-plated audio jacks
  • Rear optical S/PDIF out port
  • Premium audio capacitors
• Back Panel I/O Ports
  • 2 x Thunderbolt™ 4 USB Type-C® ports
  • 5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)
  • 4 x USB 5Gbps ports (4 x Type-A)
  • 1 x HDMI™ port
  • 1 x Wi-Fi module
  • 1 x Intel® 2.5Gb Ethernet port
  • 1 x Realtek 5Gb Ethernet port
  • 2 x Gold-plated audio jacks
  • 1 x Optical S/PDIF out port
  • 1 x BIOS FlashBack™ button
  • 1 x Clear CMOS button
• Internal I/O Connectors
  • Fan and Cooling Related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 4 x 4-pin Chassis Fan headers
  • 1 x W_PUMP+ headers
• Power Related
  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V CPU Power connectors
  • 1 x 8-pin PCIe Power connector
• Storage Related
  • 6 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • 1 x SlimSAS connector
• USB
  • 1 x USB 20Gbps connector (supports USB Type-C® )
  • 1 x USB 10Gps connector (supports USB Type-C® )
  • 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x Alteration PCIe mode switch
  • 1 x FlexKey button
  • 1 x Front Panel Audio header (F_AUDIO)
  • 1 x ReTry button
  • 1 x Start button
  • 1 x 10-1 pin System Panel header
  • 1 x Thermal Sensor header
  • 1 x Thunderbolt™ (USB4®) header*
  • * The Thunderbolt™ card can only be used when installed to the PCIEX16(G4) slot. Ensure to install your Thunderbolt™ card to the PCIEX16(G4) slot.
• Special Features
  • Extreme OC Kit
  • FlexKey button
  • ReTry button
  • Start button
  • Extreme Engine Digi+
  • 10K Black metallic capacitors
  • MicroFine alloy choke
  • ASUS Q-Design
  • M.2 Q-Latch
  • M.2 Q-Release
  • M.2 Q-Slide
  • Q-Release Slim (with PCIe SafeSlot)
  • Q-Antenna
  • Q-Code
  • Q-Connector
  • Q-Dashboard
  • Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • Q-Slot
  • ASUS Thermal Solution
  • M.2 heatsink backplate
  • M.2 heatsink
  • Metal backplate
  • VRM heatsink design
  • ASUS EZ DIY
  • Backplate
  • BIOS FlashBack™ button
  • Clear CMOS button
  • CPU Socket lever protector
  • ProCool II
  • Pre-mounted I/O shield
  • SafeSlot
  • SafeDIMM
  • Aura Sync
  • Addressable Gen 2 header(s)
  • ROG M.2 PowerBoost
  • Front Panel USB 20Gbps with Quick Charge 4+ Support
  • Support: up to 60W fast charging and USB Wattage Watcher*
  • Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
  • Compatible with PD3.0 and PPS
  • * To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported.
• BIOS
  • 256 Mb Flash ROM, UEFI AMI BIOS
• Operating System
  • Windows 11 (22H2 & later)
• Form Factor
  • ATX Form Factor
  • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

WHAT'S IN THE BOX:

• Asus ROG Maximus Z890 Hero Intel LGA1851 ATX Gaming Motherboard - Black  x1
• ARGB RGB extension cable x1
• SATA 6Gb/s cables x4
• Additional Cooling Kit x1
• DDR5 fan holder x1
• Thermal pad for M.2 22110 x1
• ASUS WiFi Q-Antenna x1
• Q-connector x1
• M.2 Q-Latch package x1
• M.2 Q-Slide packages x3
• ROG stickers x1
• M.2 rubber packages x6
• ROG thank you card x1
• ROG Bottle Opener x1
• USB drive with utilities and drivers x1
• Quick start guide x1

Why Asus?

Asus ROG is synonymous with elite gaming hardware, engineered for enthusiasts who demand peak performance and unwavering reliability. Trusted by gamers worldwide, ROG components deliver cutting-edge technology and superior build quality, ensuring your system is ready for any challenge. Choose Asus ROG for a competitive advantage that lasts.
